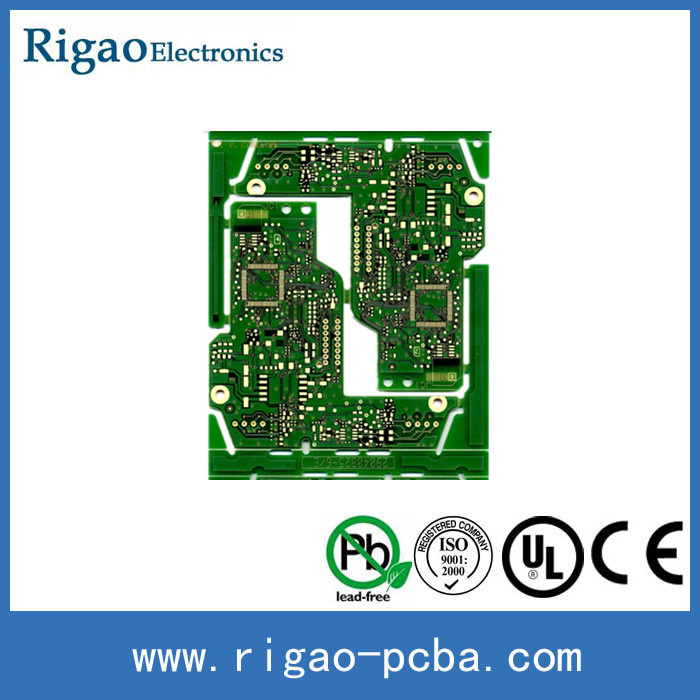

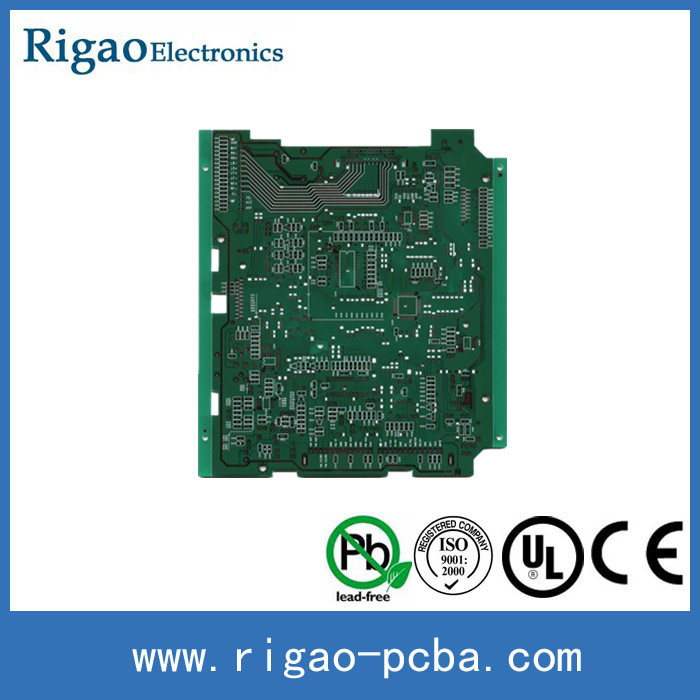

High Quality Multilayer Rigid Printed Circuit Board PCB
Price: |
US $ 0.45/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
Rigao-09 |
Structure: |
Multilayer Rigid PCB |
Material: |
Polyester Glass Fiber Mat Laminate |
Production Process: |
Subtractive Process |
Product Description
Shenzhen Rigao Electronics Co.,LTD professional in prototypes and prodution of double-sided, multi-layer circuit board as well as PCB Assembly service.
Our company's goal is to be the most reliable supplier of PCB and PCBA.
Our Product:
1. Single-sided PCB, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test.
PCB Base Material: FR4
PCB Copper Thickness: 1/1
PCB Board Thickness: 1.6mm
PCB Min. Hole Size: 0.25mm
PCB Min. Line Width: 0.1mm
PCB Min. Line Spacing: 0.1mm
PCB Surface Finishing: HASL.Rigid PCB Capability |
No. | Item | Technical data |
1 | Layer Count | 1-30Layers |
2 | HDI Type | 1+N+1, 2+N+2 |
3 | Material | CEM3, FR-4, Halogen Free, Aluminum-based, Teflon,Rogers, Getek, Nelco, PTFE, Polyimide etc |
4 | Board thickness | 0.2~5.0mm |
5 | Board Size | Max | 600*1000mm (24"x40") |
Min | 30x50mm |
6 | Copper Thickness | Outer layer | 1oz~6oz |
Inner layer | Hoz~5oz |
7 | Min. Line Width/Space | 4/4mil(0.1/0.1mm) |
8 | Finished Hole size | Mechanical | 0.20~6.30mm |
Laser | 5mil, 6mil |
9 | Blind/buried via(Mechanical) | | 0.2mm (min) |
10 | Aspect Ratio | 10:1 |
11 | Hole Dia.Tolerance | PTH | ±0.075mm(3mil) |
NPTH | ±0.05mm (2mil) |
12 | Hole Position Tolerance | ±0.05mm (2mil) |
13 | Bow & Twist | ≤0.75% |
14 | Peel strength | 1.4N/mm |
15 | Thermal stress | 288 degrees centigrade & 20 Sec |
16 | Test Voltage | 50-300V |
17 | Soldermask color | Green, Red, Blue, Black, White |
18 | | White, Black, Yellow |
19 | | 4mil(0.1mm) |
20 | | 0.05mm |
21 | | ±0.1 |
22 | Outline Tolerance | ±0.10mm (4mil) |
23 | Surface Finish | HASL, Lead free HASL, Immersion Gold/Tin/Silver, OSP, Flash Gold, Gold fingers, Plating Hard Gold, Carbon lnk, Peelable mask |
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
