Prod Model: |
C4D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Insulation Material: |
PPO |
Rated Voltage: |
TUV 1000 DC/ UL 600V DC |
Test Voltage: |
6kv(50Hz,1min) |
Contact Material: |
Copper, Tin Plated |
Contact Resistance: |
Less Than 0.5 M Ohm |
Degree Of Protection: |
IP68 |
Pollution Degree: |
2 |
Protection Class: |
Class II |
Flame Calss: |
UL94-V0 |
Ambient Temperature Range: |
-40 ~ + 90. |
Type: |
Socket Terminals |
Material: |
Copper |
Application: |
Solar Power System |
Certification: |
TUV |
Brand: |
Sy.PV |

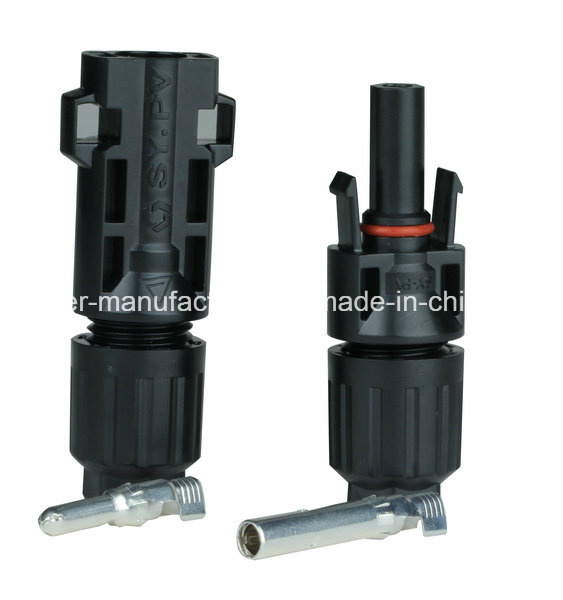

Product Description
Suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2
Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
Technical data:
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
CHARACTERISTICS:
Insulation material: | PPO |
Rated Voltage | TUV 1000 DC/ UL 600V DC |
Test voltage | 6KV(50Hz,1Min) |
Contact material | copper, tin plated |
Contact resistance | less than 0.5 m ohm |
Degree of protection | IP68 |
Pollution Degree | 2 |
Protection class | Class II |
Flame calss | UL94-V0 |
Plug Force | less than 50N |
Withdrawal force | more than 50N |
Ambient temperature range | -40 ~ + 90. |
Compatible cable cross sections Solar cable | 2.5mm² ,4.0 mm² and 6.0 mm² (14 awg,12awg,10awg) |
Pin dimention | 4.0mm |
