High Quality Temperature Regulator Universal E Type Capillary Thermostat

Name: High Quality Temperature Regulator Universal E Type Capillary Thermostat
Brand: all-electronics-online.com
SKU: 727004472
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 1-2.5/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JAYE E-Type
Color:	Red
Temperature:	0-350degree or Customized
Type:	Capillary
Length Of Sensor:	Customized
HS Code:	9032899090

Product Description

High Quality Temperature Regulator Universal E Type Capillary Thermostat

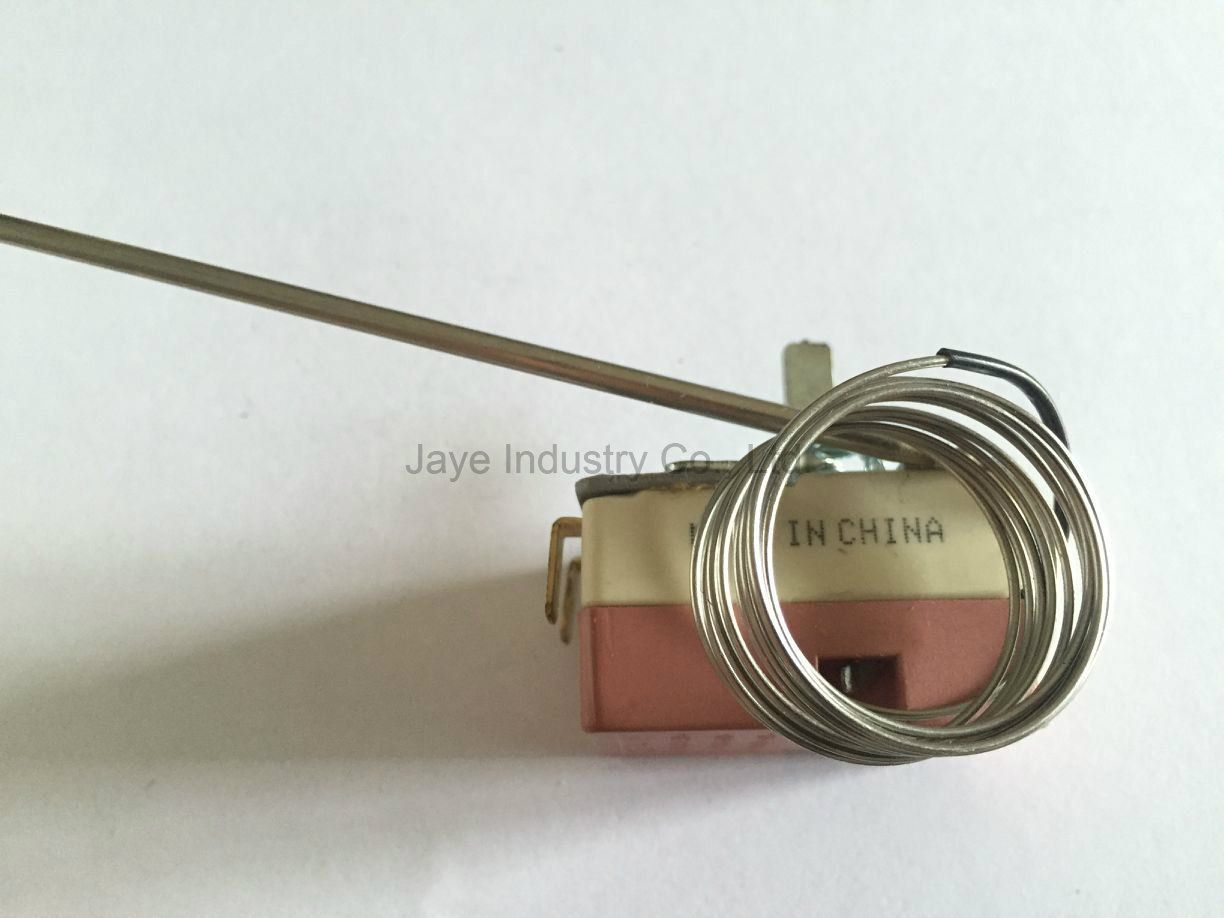

The Termostat shown in the picture is a kind of universal Capillary Termostat applied in a number of electrical appliances. According to the customized specifications, it could be made to control temperature from -35 deg C to +320 deg C. More technical information of this Capillary Termostat will be shown in the table below.

Features:

1.Strictly comply with UL, CE, CQC, RoHS

2.Available in a wide temperature range and differential

3.Temperature adjustable through adjusting shaft

4.Auto-reset, manual-reset, and fixed temperature design available

5.Snap-Action electric switch

6.Little magnetic interference

7.Long life usage

8.Accessories, such as knob, bezel, capillary gland kit etc. available

9."D" shaped adjusting shafts with different lengths are available according to a variety of electrical appliances

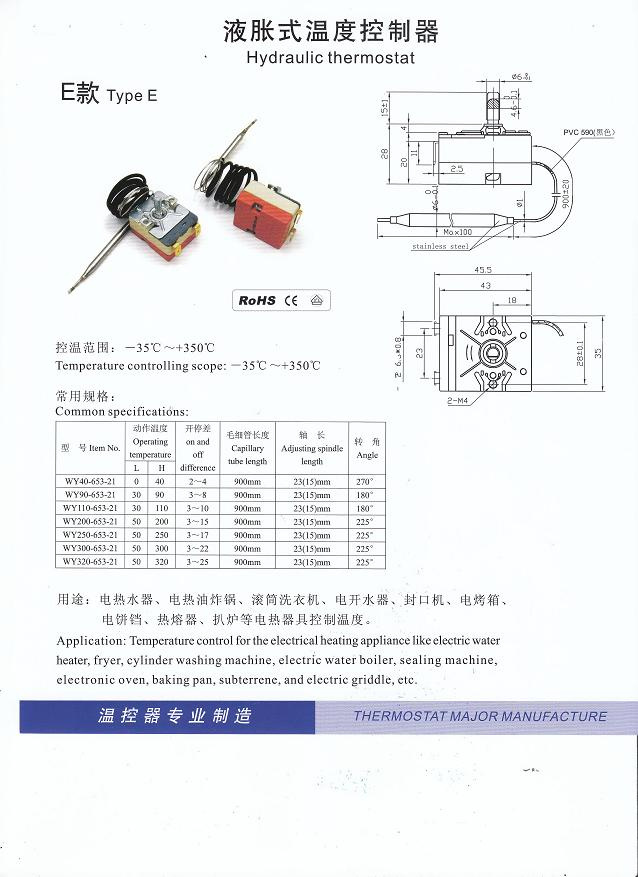

E Type Capillary Termostat

Temperature Rangeof Capillary Termostat	-35°C~ +320°C
General Temperature Range	+0°C~+40°C +30°C~+85°C +30°C~+90°C +30°C~+110°C +30°C~+185°C +50°C~+300°C +50°C~+320°C
Temperature Differential	5% of Action Temperature
Length of Capillary	300mm~3000mm optional
Material of Capillary and Sensing Bulb	Stainless Steel and Copper optional
Diameter of Sensing Bulb	3mm,4mm,5mm,6mm
Electric Rating	16(3)A 250VAC~10(1.8)A 400V
Wiring Diagram	Single PoleSingle Throw (SPST) Single Pole Double Throw (SPDT)
Material of Terminal	Brass
Mounting Hole	2-M4
Center of Mounting Hole	28mm
Min. Capillary Bend Radius	5mm
Temperature's Rate of Change	1°C/min
Life	100000 cycles
