Temperature Controller Iron Parts Adjustable Bimetal Kst Thermostat

Name: Temperature Controller Iron Parts Adjustable Bimetal Kst Thermostat
Brand: all-electronics-online.com
SKU: 727183732
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	US $ 0.25-0.35/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

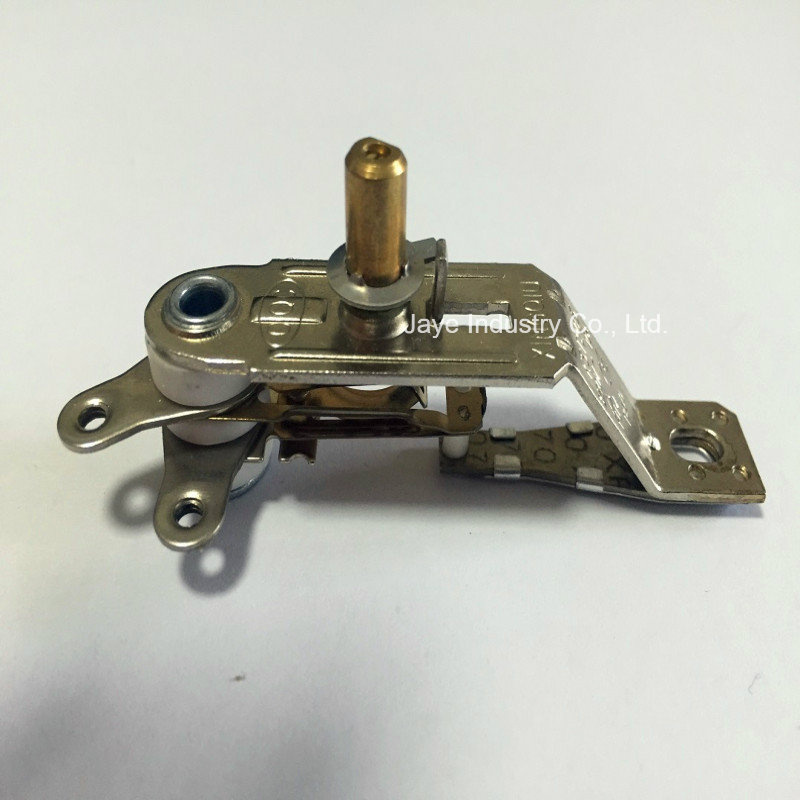

TUV Adjustable Thermostat KST Controller

KST thermostat switch is used in home appliance for temperature control from low temperature to high.
Design of KST adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. KST turns on and off within prescribed temperature range.

Main applications of KST :
1) Oven, electrical irons, rice cookers, water boilers
2) Fan heater Barbeque grill and various household appliances.

Technical parameters

Electrical Performance	10A/AC250V16A/AC 250V 20A/AC125V
Temperature Range	0 ºC-260°C
Ambient Temperature	T250°C
Wiring	A. Plug terminal : 250#187#(0.8mm thick and bend : 30°,45°,90°is available) B. Terminal Blocks :M4,M3
Product Lifespan	100,000cycles
Thermostat Axis Rotation Angle	150°,180°,210°,250°,270°,300°,310°
Electrical Strength	AC2000V/0.5mA/min
Insulation Resistance	>100MΩ
Contact Resistance	≤50MΩ
Grounding Method	Mounting plate or install oranges electrical enclosure parts connected by thermostat

Special Features :
- KST can replace ceramic fixed thermostat when using a screw instead of its axis.
- KST can control temperature and shorten temperature range through detecting current.
- KST can be crimped a block for installation and conducting heat.
- The mounting brackets have several shapes.

Options:
- Dimension and angle of shaft are optional.
- Tripping-off temperature and property curve are optional.
- Dimension and direction of terminals are optional.

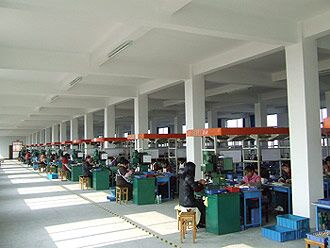

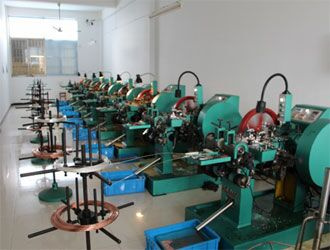

Production line

Prod Model:	JY-KST018
Type:	for Temperature Control Switch
Rated Current:	10A/16A/20A
Appliance:	Electric Iron
Function:	Temperature Control
Shape:	Customized
Axis Length:	Customized

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
