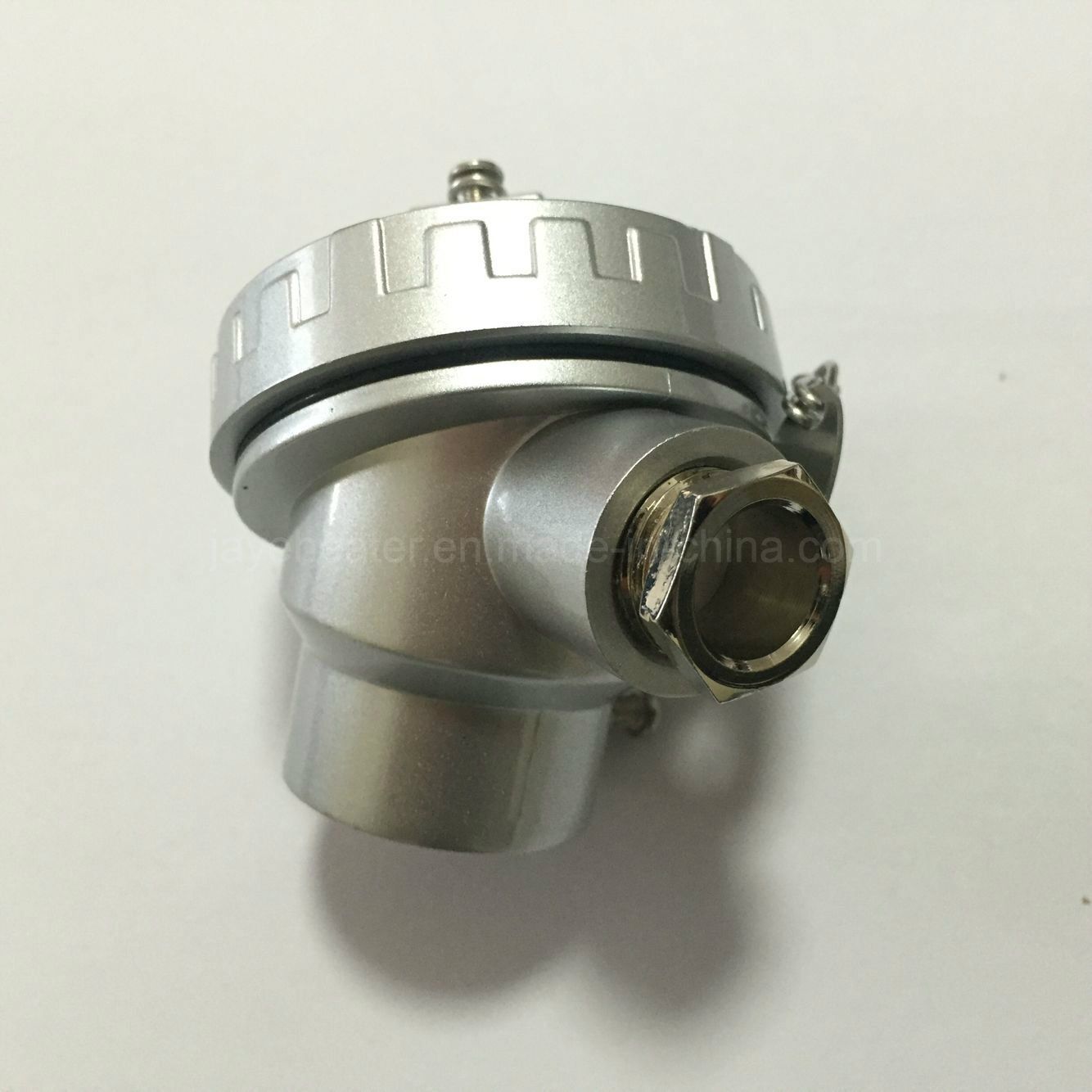

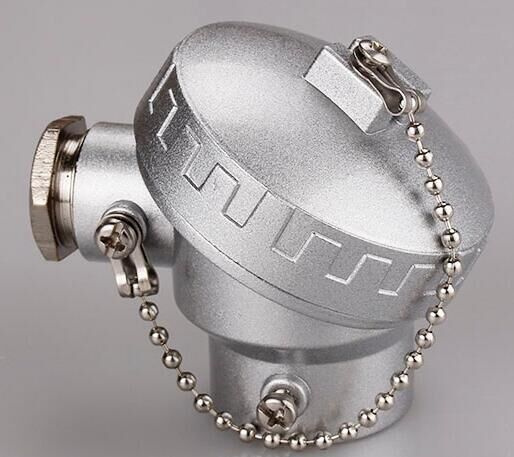

Temperature Sensor Thermal Couple Terminal Connection Head

Name: Temperature Sensor Thermal Couple Terminal Connection Head
Brand: all-electronics-online.com
SKU: 837428785
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	US $ 2-5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

High Quality Thermocouple Connection Head

1.Silver connection head for thermocouple

The head is grainy ( granulose ) not solid it means my head is a siliver bead.

Type: KD

Material: Alloy-Aluminum.

Pin must be.

Protection Tube Entry : inner diameter 1/2" = 19x1.5mm.

Extension Wire Entry : M 22X1.5

With ceramic terminal block 3 forks.

Under the ceramic T. B. St_St plate with carry the ceramic terminal block. ( Spring Load ).

2.Silver connection head for thermocouple

The head is grainy ( granulose ) not solid it means my head is a siliver bead.

Material: Alloy-Aluminum.

Pin must be.

Protection Tube Entry : inner diameter 1/2" = 19x1.5mm.

Extension Wire Entry : M 22X1.5

With ceramic terminal block 2 Block.

3.Silver connection head for thermocouple

The head is grainy ( granulose ) not solid it means my head is a siliver bead.

Material: Alloy-Aluminum.

Pin must be.

Protection Tube Entry : inner diameter 1/2" = 19x1.5mm.

Extension Wire Entry : M 22X1.5

With ceramic terminal block 3 forks.

Under the ceramic T. B. St_St plate with carry the ceramic terminal block. ( Spring Load ).

4.Silver connection head for thermocouple

The head is grainy ( granulose ) not solid it means my head is a siliver bead.

Material: Alloy-Aluminum.

Pin must be.

Protection Tube Entry : inner diameter 1/2" = 19x1.5mm.

Extension Wire Entry : M 22X1.5

With ceramic terminal block 3 forks.

The ceramic terminal block on the head direct without the plate, Without spring load.

Thermocouple Head

Item	Type	Features for Thermocouple Head
1	Cast Iron	* Rugged construction * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use
2	Burnished Die Cast Aluminum	* Small and Lightweight * Good corrosion resistance * Gasketed, weather resistant * Burnished finish * Safety chain on cover
3	Cast Aluminum Body and Cap	* Explosion resistant head * Rated for: Class III Class I, Group C, D Class II, Groups E, F, G * Screw cover * Moisture and dust resistant * Safety Ideal for outdoor use * Safety Utilizes barrier strip connector (optional)
4	Feraloy with Iron Alloy	* Explosion resistant head for 2-wire transmitter * Rated for Class I, Div 1&2, Groups C, D Class III Class II, Div 1 Groups E, F, G, Class III * Moisture and dust resistant * Ideal for outdoor use * Utilizes barrier strip connector (optional)

Prod Model:	JY-TC007
Material:	Alloy Aluminum
