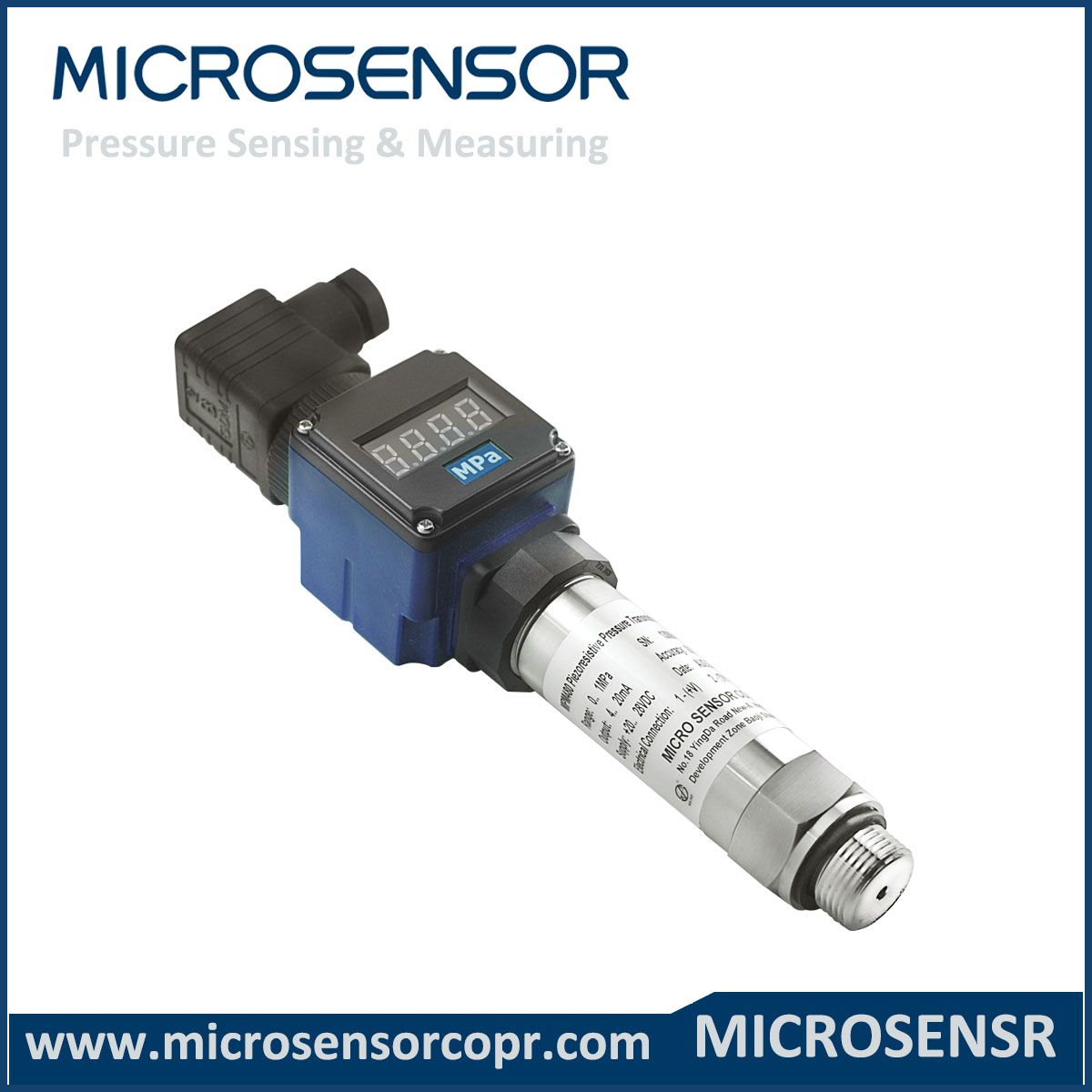

High Stable IP65 Pressure Transmitter Mpm480

Name: High Stable IP65 Pressure Transmitter Mpm480
Brand: all-electronics-online.com
SKU: 706056582
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

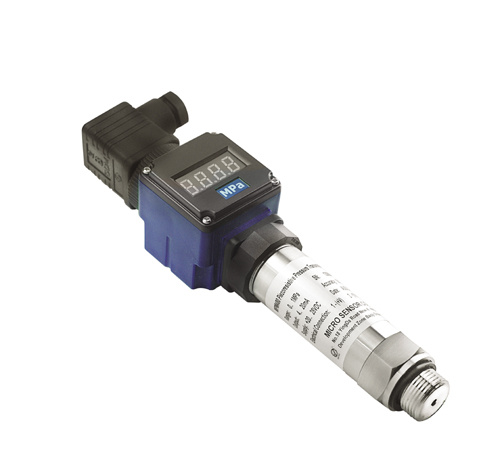

High stable IP65 Pressure Transmitter MPM480

Features:
  1.      High stable
  2.      All stainless steel
  3.      Display
  4.      Intrinsic safe
  5.      EXD explosion-proof
  6.      CE
  7.      RoHS
  8.      CCS

Specification
  1.      Pressure range: -0.10~0.01100MPa
  2.      Overpressure:   1.5 times FS or 110MPa(min. value is valid)
  3.      Pressure type:   gauge, absolute or sealed gauge
  4.      Accuracy:       0.25%FS(typ.)          0.5%FS(max.)
  5.      Long-term stability: 0.2%FS/year(typ.       0.3%FS/year(max.)
  6.      Zero temp. drift:   0.03%FS/ºC(≤100kPa); 0.02%FS/ºC(>100kPa)
  7.      FS temp. drift:    0.03%FS/ºC(≤100kPa); 0.02%FS/ºC(>100kPa)

Thermal:
  1.      Operation temp. -30ºC~80ºC
  2.      Storage temp.:   -40ºC~120ºC
  3.      Power supply:    15~30VDC        15~28VDC           15~28VDC
  4.      Output signal:    4~20mADC   0~10/20mADC         0/1~5/10VDC
  5.      Transmitting:    2-wire            3-wire                      3-wire
  6.      Load:          ≤(U-15)/0.02Ω    ≤(U-15)/0.02Ω        >100k

Constructions:
  1.        Protection: IP65 for both cable and plug connection
  2.        Electric connection: Plug connection or 1.5m cable connection
  3.        Housing: stainless steel 1Cr18Ni9Ti
  4.        Diaphragm: stainless steel 316L
  5.        O-ring: Viton
  6.        Rubber casing: NBR

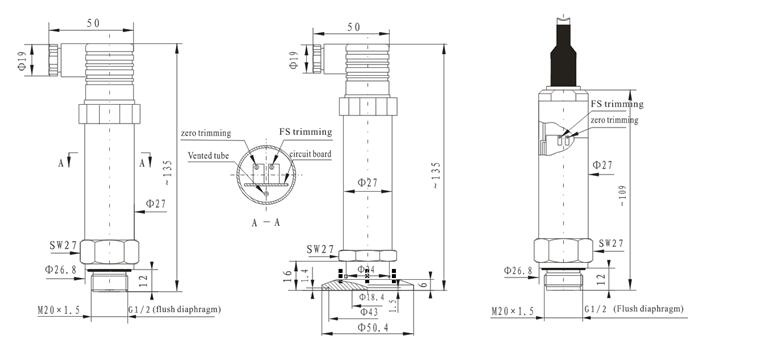

Outline Construction:

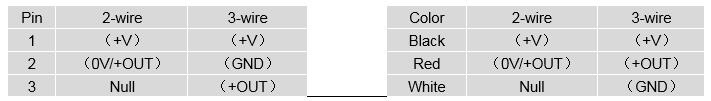

Electric Connection

Order information:

MPM480

Piezoresistive Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa or MPa

X= actual pressure range

Code

Output signal

4~20mADC

1~5VDC

0~5VDC

0~10mAC

0~20mAC

0~10VDC

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Tantalum

Hastelloy C

Code

Other

Plug connection

Cable connection cable length: 1.5m

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

Sanitationtype:-0.10~0.022MPa,DN25clamp connection

31/2 digits LCD digital indicator(only for 4~20mA)

31/2 digits LED digital indicator(only for 4~20mA)

Intrinsic safe version ExiaIICT6

Ship-use

ExdIICT6

M20×1.5 male, face type seal

G1/2 male

M20×1.5 male, waterline seal

Gauge

Absolute

Sealed gauge

MPM480 [0~100]kPa E 22 B1PC3G the whole spec

Prod Model:	MPM480
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range:	-0.1...0~0.01...100MPa
Accuracy:	0.25%Fs (Typ.)
Stable And Precise Pressure Transmitter:	Pipe Measurement
Output:	Analog Sensor
Usage:	Pressure Sensitive Sensor
Theory:	Processing Pressure Measurement
Diaphragm:	Ss316L
Overpressure:	1.5 Times Fs or 110MPa (Min. Value Is Valid)
Housing:	Stainless Steel
Certificates:	CE RoHS, CCS
Pressure Range:	-0.1...0~0.01...100MPa
