High Voltage Limit Current Fuse for Protection Oil-Immersed Tyoe Transformer

Name: High Voltage Limit Current Fuse for Protection Oil-Immersed Tyoe Transformer
Brand: all-electronics-online.com
SKU: 808649575
Availability: InStock
Rating: 5 (119 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

The product can be used in system with AC 50Hz and rated voltage of 10KV, used togethe r with other protection electtic faciIities(such as loading switches). It can protect electtic transformers and other electtic faciIitles against overloading or circuit break. It is mainly used in American style box transformers as backup protection.

Major technical characteristics
1,The fuse link can break any problem current between the minimum break current(2.5-5)In to rated break current 50KA.

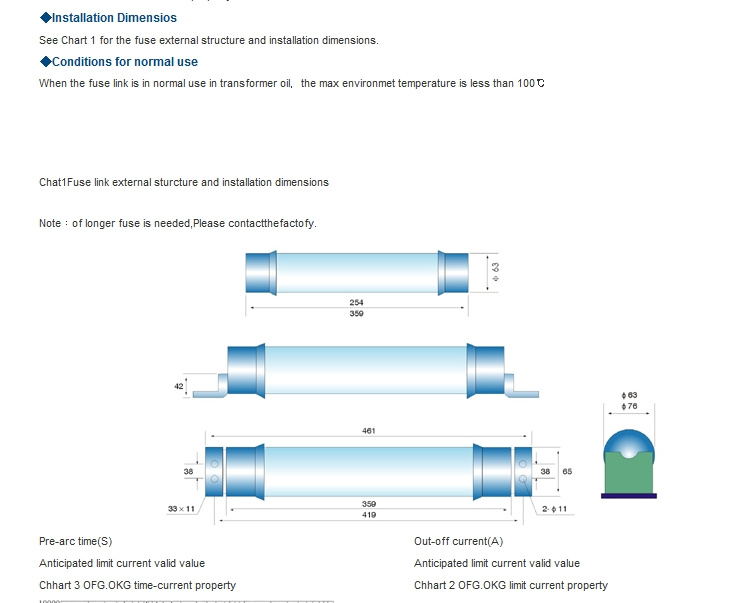

2,See chart 3 for the fuse time-current property.The upper section above the minimum break current is broken line.
3,See chart 2 for limn current property.

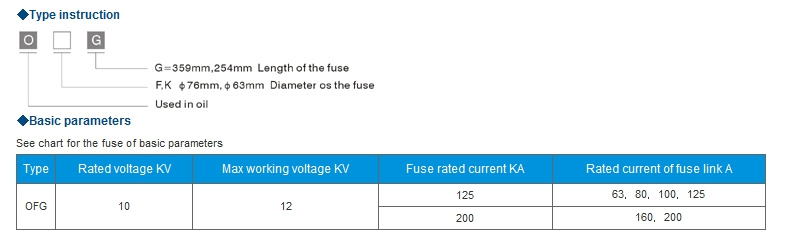

Prod Model:	OFG
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Zhejiang Zhiguang Fuse Co., Ltd. A modern company specialized in high and low voltage fuseptoduclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100 types of series "ZGUA"producls covering more than1000 specificalions, all the productscomply with international IEC standard and national GB13539and GB15166 standard and have passed.

We specialized in high and low voltage fuse produclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100types of series "ZGUA"producls covering more than1000 specificalions, all the products comply with international IEC standard and national GB13539and GB15166 standard and have passed.

The market is the base for the entrprise's survival. After years of market test; The products notonly satisfy the customers at home but also have been exported to above 30 countries and areas, ithas won the reputation all of the world with its advanced technology, perfect functiion, reliable quality and high quality service.

In order to realize sustainable development of enterprise in the competitive market, the companyalwavs intends to offer better products, more advanced technology and betler service to the customer with the tenet of "Quality No. 1, Managing with credibilily"and create a more magnificent future withmind and wisdom.
