Hydraulic Pressure Sensor Ppm-S522

Name: Hydraulic Pressure Sensor Ppm-S522
Brand: all-electronics-online.com
SKU: 827264765
Availability: InStock
Rating: 5 (75 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ppm-S522
Certification:	CMC

Product Description

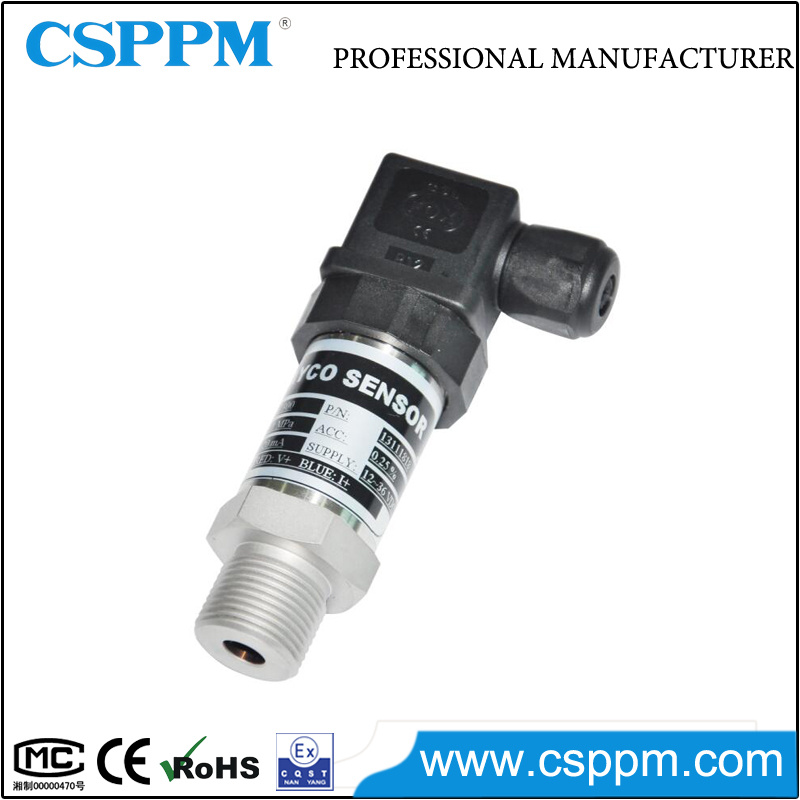

PPM-S522 Silicon Bonding Pressure Sensor

Description
PPM-S522 Pressure Sensor is a economic type for general industry. It features high reliability, long-term stability, good vibration. PPM-S522 Pressure Sensor widely apply to industrial process control, pumps and compressors, injection molding machines, water treatment system.

Features

Wide pressure range from 0...1MPa to 0...70MPa
Wide temperature range: -25~125ºC
Strong anti-overload ability
Good adaptation of harsh environment

Applications
Industrial process control, Compressor, Injection molding machine, Hydraulic system,Water treatment system, Refrigeration system.

Specification

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S),
Pressure range	0~1MPa…70MPa
Power supply	3~15VDC(10VDC suggested)
Output signal	5~20mV/V
Accuracy	±0.1%FS, ±0.25%FS, ±0.5%FS
Long-term stability	0.25%FS/year
Operation temperature	-25~125ºC
Storage temperature	-25~125ºC
Compensation temperature	-25~85ºC
Zero temp. drift	±0.02%FS/ºC
FS temp. drift	±0.02%FS/ºC
Insulation resistance	≥50MΩ/250V
Overpressure	200%FS (1.5 times FS)
Damage pressure	500%FS (5 times FS)
Vibration	±20g
Impact	100g, 11ms;
Process connection	M20×1.5,M16×1.5,M14×1.5,M10×1,G1/4 or other on request
Materials	17-4PH stainless steel

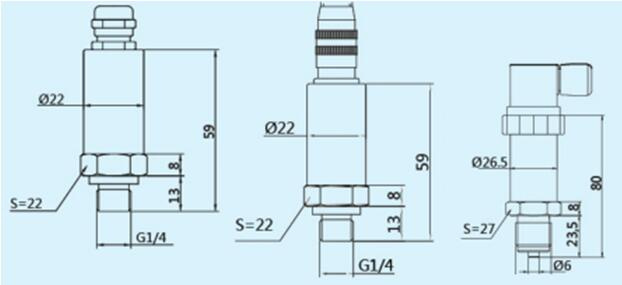

Dimensions
