| Prod Model: |
CP-4 |
| Model: |
Cp4 Series Current Transformer 13mm |
| Is Customized: |
Yes |
| Application: |
Electronic |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

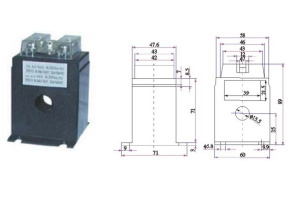

CP4 Encapsulated Interposing Current Transformer
Encapsulated current transformer
Tough resilient flame retardant UL-94V0
Temperature range -20°C to 70°C
Accuracy class 1.0 ,0.5
Test voltage 4kV 50Hz 1min
IEC44-1,IEC185,BS3938,DIN42600
Insulation Class E,Max 120°C
Totally enclosed in tough,self extinguishing mouldings
Operating voltage 0.72kV
Summation current transformer
Normal secondary winding 1A or 5A
Introduction
There are C.Ts.Which are interposed between the main C.T.and the burden(Load)so that the secondary current of the main C.T. is adjusted as required by the burden.When used in providing transformer differential protection,these C.Ts are also used to correct the phase shift,which may result due to particular method of connection used for the transformer windings.
The main fuction of an interposing CT is to balance the current supplied to the relay or others where threre would otherwise be an imbalance due to the ratios of the main CTs.Interposing CTs are equipment with a ratio that can be selected by the user to achieve the balance required.
As the name suggests,an interposing CT is installed betweenthe secondary winding of the main CT and relay.They can be used on the primary side or secondary side of power transformer being protected,or both interposing CTs also provide a convenient method of establishing a delta connection for the elimination of zero sequence currents where this is necessary.
Compliance:IEC 185 and BS 3938/1973
Burden:5VA or 7.5VA
Accuracy:0.5 or 1.0
Rated voltage:720V 50/60Hz
Dielectric voltage:4kV
Type of material:High impact flame-retardant moulded resin
Input:5/5A,1/1A other by request.
A When the main C.T.s having rated secondary current of 1Amp.And the burden requires a rated current of 5Amp,an I.C.T.is used,at the load end so that the lead burden is fed by 1Amp.Current.The lead burden on the I.C.T.is negligible as it placed very close to the burden(Pic.1)
B The arrangement suggested in a above may also be used when the main C.T.is having rated secondary of 5Amps.And the burden requires a rated current of 1amp.In this case .However,the I.CT, of ratio 5/1 Amp will have to be placed at the main C.T.end to reduce the effect of lead burden on the main C.T.(Pic. 2)
C In the case of transformer differential protection when the main C.T. ratios do not match.If phase shift is introduced due to the model of connections of the transformer on the H.T. and L.T.side,I.C. Ts Can be used to correct the phase shift.It is assumed here that all main C.Ts are star connected(Pic.3)
D For suppressing zero sequence currents from the out of balance current.This is achieved by providing an additional secondary winding on I.C.Ts.Which is connected in closed delta(Pic.4)
E If high ratio is selected for the main C.T. against a low load current,I.C.Ts may be used across the main C.T. to reduce the ratio effectively and satisfactorily cater ti the rated current requirement of the burden(Pic.5)
In all above applications it must be borne in mind that an I.C.T. imposes burden on the main C.T.if this burden is required to be restricted to a certain value,the value must be specific to enable the manufacture to design the I.C.T.suitably.If this value of burden(expressed in VA)is too low,it may result into an uneconomical design of the I.C.T.
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
