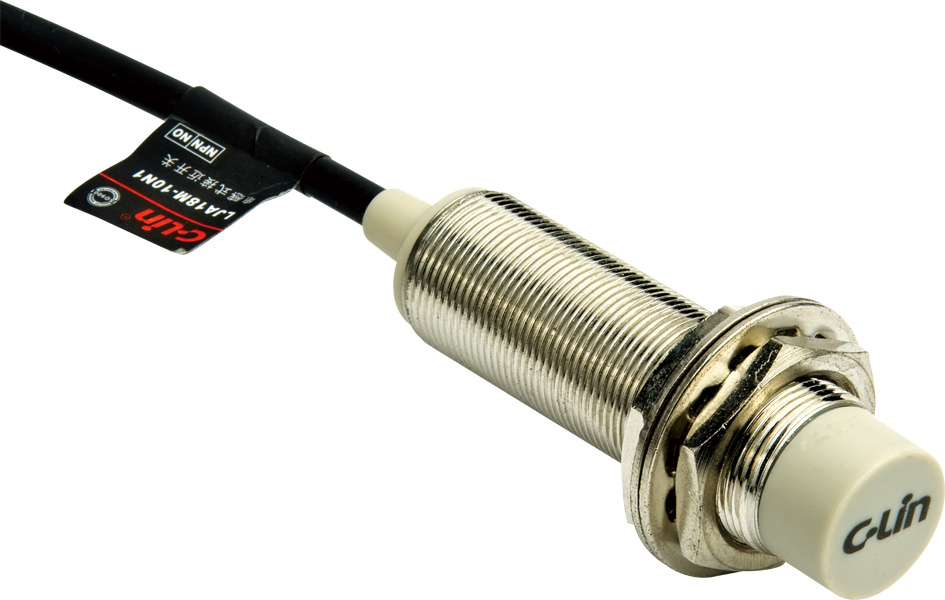

Inductive Long Cylinder Proximity Switch (LJA18 Series)

Name: Inductive Long Cylinder Proximity Switch (LJA18 Series)
Brand: all-electronics-online.com
SKU: 696966435
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

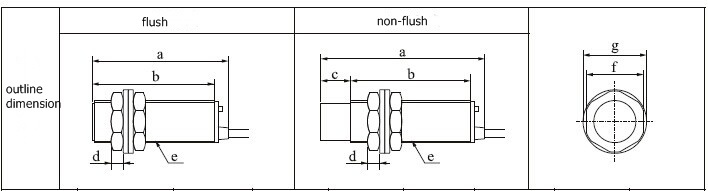

Outline Dimension

			LJA18 Long Cylinder Type
Operating State of Output			Flush	Non-flush
3-wire DC6-36V	NPN	NO	LJA18-5N1	LJA18M-10N1
		NC	LJA18-5N2	LJA18M-10N2
		NO+NC	LJA18-5N4	LJA18M-10N4
	PNP	NO	LJA18-5P1	LJA18M-10P1
		NC	LJA18-5P2	LJA18M-10P2
		NO+NC	LJA18-5P4	LJA18M-10P4
2-wire DC6-36V	NO		LJA18-5D1	LJA18M-10D1
	NC		LJA18-5D2	LJA18M-10D2
2-wire AC90-250V	NO		LJA18-5A1	LJA18M-10A1
	NC		LJA18-5A2	LJA18M-10A2
Detection distance			5mm±15%	10mm

Prod Model:	LJA18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter And Length:	18mm, 52mm
Working Power:	DC6-36V, AC90-250V
Working Temperature:	-20 Centigrade to +70 Centigrade
Measuring Material:	Magnetic Metal ( Iron Steel and Copper)
Backlash:	<10% Proximity Distance
Length Of Output Wire:	Level 1.5m ( Elect by Yourself)
Proximity Distance:	0-2mm
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
