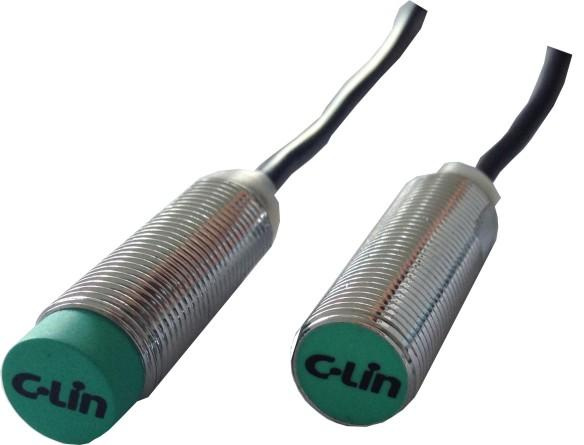

Inductive Type Proximity Switch (CHJ12)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
CHJ12 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
12mm |
| Working Power: |
DC10-30V, AC100-240V |
| Working Temperature: |
-25 to +70 Degrees |
| Measuring Material: |
Chrome Copper Alloy |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
| Standard: |
Standard |
Product Description
FeatureAdopt specialized chip inside; stable working performance, strong anti-interference capabilitySurface mounted technology; good consistency, high detection accuracy, small errorImported components, low residual voltage, small consumption currentPolarity protection, surge absorbability; load short circuit protection etc.Ambient temperature: -25ºC~+70ºC; low temperature-driftChrome copper alloy housing, high mechanical strengthShort housing size, can be used to install in a small placeProtection class: IP67; waterproof productOrdering InformationNote: conventional cable length is 2m; other lengths can be customized.| Diameter | Model | Technical Specification | Autonics Type |
| M12 AC 2-wire | CHJ12-2A1 | flush type, 2mm sensing distance,
AC100V-240V AC 2-wire NO | PR12-2AO |
| CHJ12-2A2 | flush type, 2mm sensing distance,
AC100V-240V AC 2-wire NC | PR12-2AC |
| CHJ12M-4A1 | non-flush type, 4mm sensing distance,
AC100V-240V AC 2-wire NO | PR12-4AO |
| CHJ12M-4A2 | non-flush type, 4mm sensing distance,
AC100V-240V AC 2-wire NC | PR12-4AC |
| M12 DC 2-wire | CHJ12-2D1 | flush type, 2mm sensing distance,
DC10-30V 2-wire NO | PRT12-2DO |
| CHJ12-2D2 | flush type, 2mm sensing distance,
DC10-30V 2-wire NC | PRT12-2DC |
| CHJ12M-4D1 | non-flush type, 4mm sensing distance,
DC10-30V 2-wire NO | PRT12-4DO |
| CHJ12M-4D2 | non-flush type, 4mm sensing distance,
DC10-30V 2-wire NC | PRT12-4DC |
| M12 DC 3-wire NPN | CHJ12-2N1 | flush type, 2mm sensing distance,
DC10V-30V NPN NO | PR12-2DN |
| CHJ12-2N2 | flush type, 2mm sensing distance,
DC10V-30V NPN NC | PR12-2DN2 |
| CHJ12M-4N1 | non-flush type, 4mm sensing distance,
DC10V-30V NPN NO | PR12-4DN |
| CHJ12M-4N2 | non-flush type, 4mm sensing distance,
DC10V-30V NPN NC | PR12-4DN2 |
| M12 DC 3-wire PNP | CHJ12-2P1 | flush type, 2mm sensing distance,
DC10V-30V PNP NO | PR12-2DP |
| CHJ12-2P2 | flush type, 2mm sensing distance,
DC10V-30V PNP NC | PR12-2DP2 |
| CHJ12M-4P1 | non-flush type, 4mm sensing distance,
DC10V-30V PNP NO | PR12-4DP |
| CHJ12M-4P2 | non-flush type, 4mm sensing distance,
DC10V-30V PNP NC | PR12-4DP2 |
