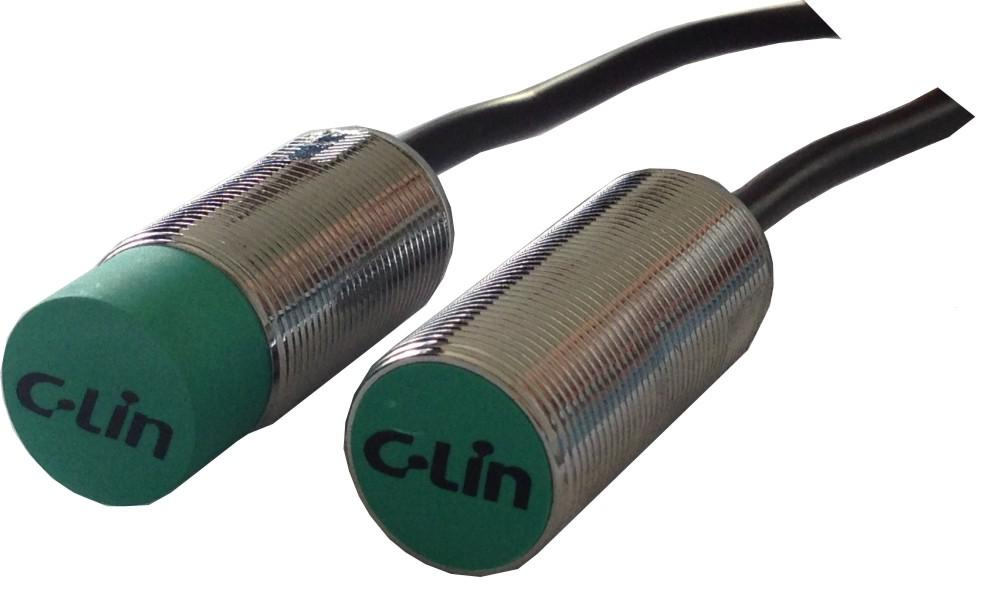

Inductive Type Proximity Switch (CHJ18)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
FeatureAdopt specialized chip inside; stable working performance, strong anti-interference capabilitySurface mounted technology; good consistency, high detection accuracy, small errorImported components, low residual voltage, small consumption currentPolarity protection, surge absorbability; load short circuit protection etc.Ambient temperature: -25ºC~+70ºC; low temperature-driftChrome copper alloy housing, high mechanical strengthShort housing size, can be used to install in a small placeProtection class: IP67; waterproof productOrdering InformationNote: conventional cable length is 2m; other lengths can be customized.| Diameter | Model | Technical Specification | Autonics Type |
| M18 AC 2-wire | CHJ18-5A1 | flush type, 5mm sensing distance,
AC100V-240V 2-wire NO | PR18-5AO |
| CHJ18-5A2 | flush type, 5mm sensing distance,
AC100V-240V 2-wire NC | PR18-5AC |
| CHJ18M-10A1 | non-flush type, 10mm sensing distance,
AC100V-240V 2-wire NO | PR18-8AO |
| CHJ18M-10A2 | non-flush type, 10mm sensing distance,
AC100V-240V 2-wire NC | PR18-8AC |
| M18 DC 2-wire | CHJ18-5D1 | flush type, 5mm sensing distance,
DC10-30V 2-wire NO | PRT18-5DO |
| CHJ18-5D2 | flush type, 5mm sensing distance,
DC10-30V 2-wire NC | PRT18-5DC |
| CHJ18M-10D1 | non-flush type, 10mm sensing distance,
DC10-30V 2-wire NO | PRT18-8DO |
| CHJ18M-10D2 | non-flush type, 10mm sensing distance,
DC10-30V 2-wire NC | PRT18-8DC |
| M18 DC 3-wire NPN | CHJ18-5N1 | flush type, 5mm sensing distance,
DC10V-30V NPN NO | PR18-5DN |
| CHJ18-5N2 | flush type, 5mm sensing distance,
DC10V-30V NPN NC | PR18-5DN2 |
| CHJ18M-10N1 | non-flush type, 10mm sensing distance,
DC10V-30V NPN NO | PR18-8DN |
| CHJ18M-10N2 | non-flush type, 10mm sensing distance,
DC10V-30V NPN NC | PR18-8DN2 |
| M18 DC 3-wire PNP | CHJ18-5P1 | flush type, 5mm sensing distance,
DC10V-30V PNP NO | PR18-5DP |
| CHJ18-5P2 | flush type, 5mm sensing distance,
DC10V-30V PNP NC | PR18-5DP2 |
| CHJ18M-10P1 | non-flush type, 10mm sensing distance,
DC10V-30V PNP NO | PR18-8DP |
| CHJ18M-10P2 | non-flush type, 10mm sensing distance,
DC10V-30V PNP NC | PR18-8DP2 |
| Prod Model: |
CHJ18 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
18mm |
| Working Power: |
DC10-30V, AC100-240V |
| Working Temperature: |
-25 to +70 Degrees |
| Measuring Material: |
Chrome Copper Alloy |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
| Standard: |
Standard |
Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.
Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling is ready for creating a magnificent tomorrow together with you!
