Infrared Gas Sensor NDIR Biogas Landfill Incinerator PCB CH4 CO2 CO SF6
| Price: |
US $ 100-250/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |

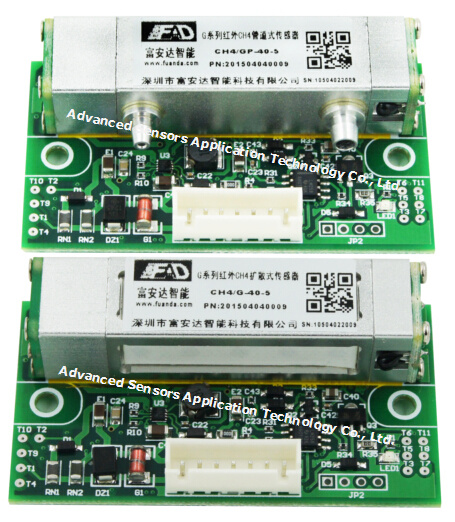

FAD NDIR Infrared Gas Sensor ModuleG series infrared gas sensor uses non-dispersive infrared (NDIR) detection technology, with good advantages of long life, low cost, intelligence, micro and so on. Sensor is easy to use, with a complete gas detection, serial communication function, widely used in ventilation systems, industrial control, environmental monitoring and other industries.
Product Selection| Gas | GP-40 | Range | Precision | Resolution | Power supply | Output |
| CH4 | CH4/GP-40-5 | 0-5VOL% | ±5%FS | 0.01 VOL % | 12-24VDC | RS485/4-20mA/0.4-2V |
| CH4/GP-40-10 | 0-10VOL% | ±5%FS | 0.01 VOL % | 12-24VDC | RS485/4-20mA/0.4-2V |
| CH4/GP-40-20 | 0-20VOL% | ±5%FS | 0.01 VOL % | 12-24VDC | RS485/4-20mA/0.4-2V |
| CH4/GP-40-50 | 0-50VOL% | ±5%FS | 0.01 VOL % | 12-24VDC | RS485/4-20mA/0.4-2V |
| CH4/GP-40-100 | 0-100VOL% | ±5%FS | 0.1 VOL % | 12-24VDC | RS485/4-20mA/0.4-2V |
| Detection principle | NDIR |
| Detection gas | CH4 |
| Detection Range | 0-5VOL, 0-10Vol%, 0-20Vol%, 0-50Vol%, 0-100Vol% |
| Resolution | 0-5Vol%, 0-10Vol%, 0-20Vol%, 0-50Vol% Resolution is 0.01Vol%
0-100Vol% Resolution is 0.1Vol% |
| Precision | ±5%FS |
| Operation Voltage | 12-24VDC |
| Operation Current | 10-120mA |
| Output Mode | RS485( baud rate 9600) |
| Response Time | T90<30s |
| Temperature | -20°C -50°C |
| Humidity | 0-95%RH |
| Operating life | >10Years |
| Gas | Model | Range | Precision | Resolution |
| CO2 | CO2/G(P)-40-1000P | 0-1000 ppm | ±5%FS | 1 ppm |
| CO2/G(P)-40-2000P | 0-2000 ppm | ±5%FS | 1 ppm |
| CO2/G(P)-40-5000P | 0-5000 ppm | ±5%FS | 2 ppm |
| CO2/G(P)-40-10000P | 0-1Vol% | ±5%FS | 5 ppm |
| Detection principle | NDIR |
| Detection gas | CO2 |
| Detection Range | 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-1Vol%, 0-5Vol% |
| Resolution | 0-1000ppm, 0-2000ppm, 0-5000ppm resolution is 1ppm
0-1Vol% resolution is 0.001VOL% |
| Detection precision | ±5%FS |
| Operation Voltage | 12-24VDC |
| Operation current | 10-120mA |
| Output Mode | RS485(baud rate 9600) |
| Response Time | T90<30s |
| Temperature | -20°C -50°C |
| Humidity | 0-95%RH |
| Operation Life | >10 years |
| Sensor Measurement | 65mm*35mm*20mm |
| Gas | Model | Range | Precision | Resolution |
| CO | CO/G(P)-40-5 | 0-5Vol% | ±5%FS | 0.01 Vol% |
| CO/G(P)-40-10 | 0-10Vol% | ±5%FS | 0.01 Vol% |
| CO/G(P)-40-20 | 0-20Vol% | ±5%FS | 0.01 Vol% |
| CO/G(P)-40-50 | 0-50Vol% | ±5%FS | 0.01 Vol% |
| CO/G(P)-40-100 | 0-100Vol% | ±5%FS | 0.1 Vol% |
| Detection Principle | NDIR |
| Detection gas | CO |
| Detection Range | 0-5Vol%, 0-10Vol%, 0-20Vol%, 0-50Vol%, 0-100Vol% |
| Resolution | 0-5Vol%,0-10Vol% resolution is 1ppm
0-20Vol%, 0-50Vol% resolution is 0.01Vol%
0-100Vol% resolution is 0.1Vol% |
| precision | ±5%FS |
| Operation Voltage | 12-24VDC |
| Operation current | 10-120mA |
| Output Mode | RS485(baud rate 9600) |
| Response Time | T90<30s |
| Temperature | -20°C -50°C |
| Humidity | 0-95%RH |
| Operation Life | >10 years |
| Sensor Measurement | 65mm*35mm*20mm |
| Gas | Model | Range | Precision | Resolution |
| SF6 | SF6/G(P)-40-1000P | 0-1000 ppm | ±3%FS | 1 ppm |
| SF6/G(P)-40-2000P | 0-2000 ppm | ±2%FS | 1 ppm |
| SF6/G(P)-40-3000P | 0-3000 ppm | ±2%FS | 1 ppm |
| Detection Principle | NDIR |
| Detection gas | SF6 |
| Detection Range | 0-1000ppm,0-2000ppm,0-3000ppm |
| Resolution | 0-1000ppm,0-2000ppm,0-3000ppm resolution is 1ppm |
| precision | ±3%FS |
| Operation Voltage | 12-24VDC |
| Operation current | 10-120mA |
| Output Mode | RS485(baud rate 9600),4-20mA,0.4-2V |
| Response Time | T90<30s |
| Temperature | -20°C -50°C |
| Humidity | 0-95%RH |
| Operation Life | >10 years |
ApplicationMining
Coal processing
Natural gas
Pipeline gas leaks
Petroleum extraction
Petrochemical
Pipeline leak detection
Process control analysis
Biogas engineering
Waste incineration and landfill
Municipal engineering
Fire rescue site
| Prod Model: |
Gas-range |
| Output: |
RS485/4-20mA/0.4-2V |
| Precision: |
5%Fs |
| After Sale Service: |
Yes |
| Customize: |
Yes |
| Conductivity Type: |
Infrared |
Company introduction
Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.
Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
