| Prod Model: |
BV-450/750×1.5 |
| Wire Color: |
as Per Customer′s Requirement |
| Wire Packing: |
PP+Carton |
| Shape: |
Round Wire |
| Voltage: |
450/750V |
| Electrical Wire Type: |
Fire Flame Retardant |
| Electrical Wire Conductor: |
Copper |
| Electrcial Wire Shealth Material: |
PVC |
| Cable Standard: |
IEC60332 |
| Cable Packing: |
Plastic Reel |
| Cable Sectional Area: |
1.5mm2-16mm2 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Upward |
Product Description

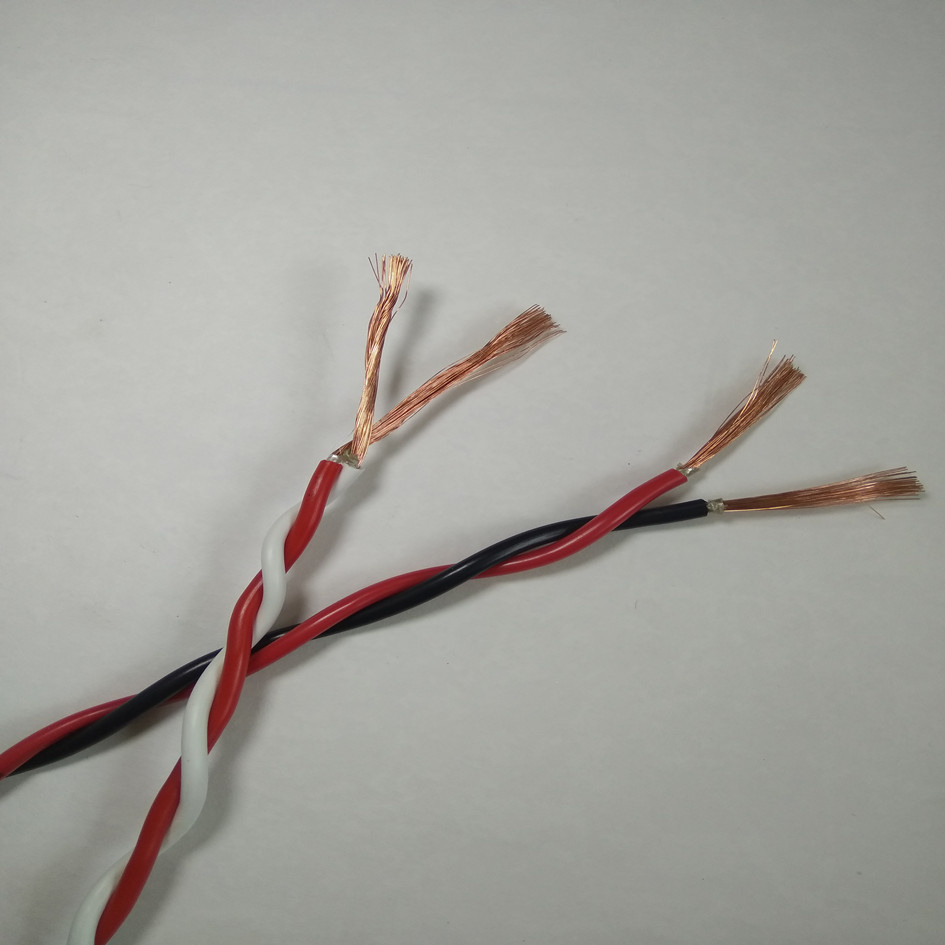

Low Voltage cable Electrical Wire
Feature
1.Cable Wire Price Per Meter
2.PVC Insulated and sheath
Parameter
1.Voltage Uo/U 450/750V
2.Long-time working temperature should be lower than 70°C (Can be 90°C or 105°C),
should not be lower than 0°C.
3.Minimum bending radius: minimum bending diameter is two times of cable diameter while test binding
Specification
Type: Pure Copper Conductor , Single Core CU/PVC Electric Wire
Strandard: IEC60332, GB/T5023-2008 JB8734-1998
Voltage: 300/500V 450/750V
Specification: Single Core 13-15AWG etc
Length: 100M 500M 1000M
| Type | Cross Section(mm2) | Conductor Size(No. of Cores/Diameter) | Rated Voltage | Nominal Insulation Thickness(mm) | Reference Weight(kg/km) | Application |
| Solid Type | 0.5 | 1/0.80 | 300/500V
450/750V | 0.6 | 8.0 | Solid, Hard,Suitable for fixed installation |
| 0.75 | 1/0.97 | 0.6 | 11.4 |
| 1 | 1/1.13 | 0.6 | 15.2 |
| 1.5 | 1/1.38 | 0.7 | 21 |
| 2.5 | 1/1.78 | 0.7 | 32 |
| 4 | 1/2.25 | 0.8 | 47 |
| 6 | 1/2.76 | 0.8 | 67 |
| Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 | Stranded, Flexible house wiring, Suitable for indoor applicant. |
| 2.5 | 7/0.68 | 0.7 | 35 |
| 2.5 | 19/0.40 | 0.8 | 34 |
| 4 | 7/0.85 | 0.8 | 50 |
| 4 | 19/0.52 | 0.8 | 51 |
| 6 | 7/1.04 | 0.8 | 71 |
| 6 | 19/0.64 | 0.8 | 72 |
| 10 | 7/1.35 | 1.0 | 118 |
| 10 | 49/0.52 | 1.0 | 127 |
| 16 | 7/1.70 | 1.0 | 177 |
| 16 | 49/0.64 | 1.0 | 184 |
| Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 | Ultra Flexible, Soft Conductor, Suitable for small power equipment instrument. |
| 2.5 | 49/0.25 | 0.8 | 34 |
| 4 | 56/0.30 | 0.8 | 49 |
| 6 | 84/0.30 | 0.8 | 70 |
| 10 | 77/0.40 | 1.0 | 117 |
| 16 | 119/0.40 | 1.0 | 168 |
| 25 | 189/0.40 | 1.2 | 265 |
| ... | | | |
The cable can be of flame retardance, fire resistance, environment friendly or other property. OEM Available. Single Core 13-15AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

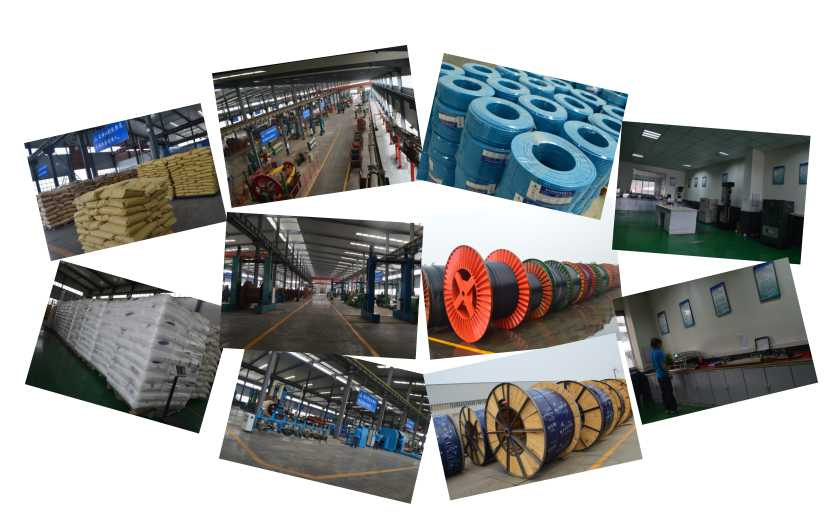

Our factory

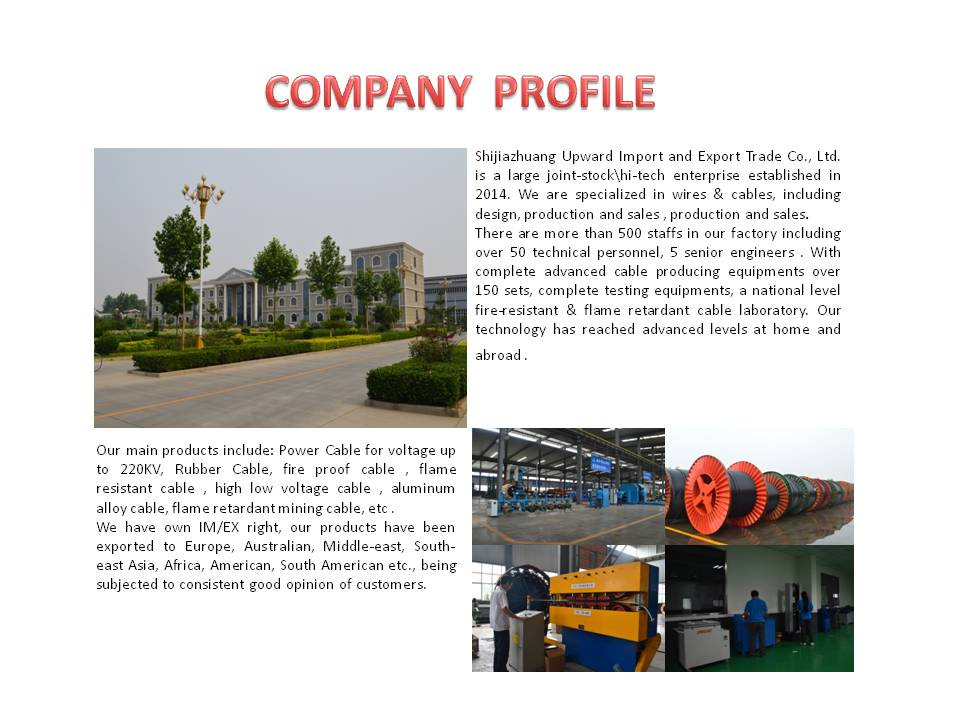

Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
