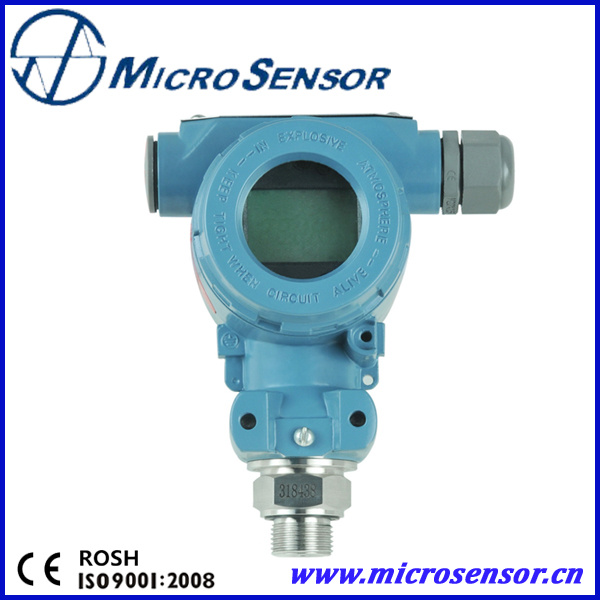

Intelligent MPM486 PressureTransmitter for water
Features:
1. Intelligent
2. 2-wire
3. 4~20mADC
4. Digital correction
5. HART
6. Temperature compensation
7. Stable
8. Accurate
9. Reliable
Specifications:
| Code | 02 | 03 | 07 | 08 | 09 | 10 | 12 | 13 | 14 | 15 | 17 | 18 | 19 | 20 |
| Unit | kPa | MPa |
| Pressure | 0-20
~
0-70 | 0-30
~0-100 | 0-60
~0-200 | 0-100
~0-350 | 0-200
~0-700 | 0-0.3
~0-1.0 | 0-0.6
~0-2.0 | 0-1.0
~0-3.5 | 0-2.0
~0-7.0 | 0-3.0
~0-10. | 0-4.0
~
0-20 | 0-8.0
~
0-35 | 0-16
~
0-70 | 0-20
~0-100 |
| Upper limit | 70 | 100 | 200 | 350 | 700 | 1.0 | 2.0 | 3.5 | 7.0 | 10 | 20 | 35 | 70 | 100 |
| Overpressure | 100 | 150 | 300 | 500 | 1000 | 1.5 | 3.0 | 5.0 | 10 | 15 | 30 | 52 | 100 | 110 |
For the other pressure range between min.range and max.range, but not indicated on the above table, we enlarge the above basic pressure range to produce (overpressure unavailable);
The min. available shrinked pressue range is 1/5 of basic pressure range.
| | Specification | Unit |
| Accuracy | ±0.1(typ.) ±0.25(max.) | %FS |
| Zero Thermal error | ≤±0.25(in the whole operation temp.range) | %FS |
| FS Thermal error | ≤±0.25(in the whole operation temp.range) | %FS |
| Stability | ≤±0.25 | %FS/year |
| Compensation temp. | -10~80 | ºC |
| Operation temp. | -20~80 | ºC |
| Storage temp. | -40~85 | ºC |
| Power supply | 12~36 | VDC |
| Digital output | 4~20mADC output+ HARTâ | |
| Display | LCD indicator, 2 or 3 keys to calibrate | |
| Damp | 0~32 | s |
| Load | (U-12V)/0.02A | Ω |
| Insulation | 100MΩ/50V |
| Shock | 20g,20~5000Hz |
| Impact | 20g,11ms |
| Diaphragm | Stainless steel 316L/tantalum |
| Pressure port | Stainless steel 1Cr18Ni9Ti/hastelloy |
| O-ring | Viton |
| Weight | ~1.7kg |
Order Information:
| MPM486 | HARTâ Intelligent Pressure Transmitter |
| | | Code | Pressure range kPa or MPa |
[0~X] kPa
or MPa | 02 | 0~2070kPa | 13 | 0~1.03.5MPa |
| 03 | 0~30100kPa | 14 | 0~2.07.0MPa |
| 07 | 0~60200kPa | 15 | 0~3.010.0MPa |
| 08 | 0~100350kPa | 17 | 0~4.020.0MPa |
| 09 | 0~200700kPa | 18 | 0~8.035.0MPa |
| 10 | 0~0.31.0MPa | 19 | 0~16.070.0MPa |
| 12 | 0~0.62.0MPa | 20 | 0~20.0100.0MPa |
| | Code | Output signal |
| E | 4~20mADC + HARTâ communication protocol (2-wire) |
| | | Code | Construction material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | Aluminum-alloy |
| 24 | SS 316L | SS 316L | Aluminum-alloy |
| 25 | Tantalum | SS | Aluminum-alloy |
| 35 | Tantalum | Hastelloy C | Aluminum-alloy |
| | | Code | Others |
| C1 | M20×1.5 male, face type seal |
| C3 | G1/2 male |
| C5 | M20×1.5 male, waterline seal |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male |
| G | Gauge |
| S | Sealed gauge |
| A | Absolute |
| | |
| MPM486 [0~200]kPa E 22 C1G the whole spec |
