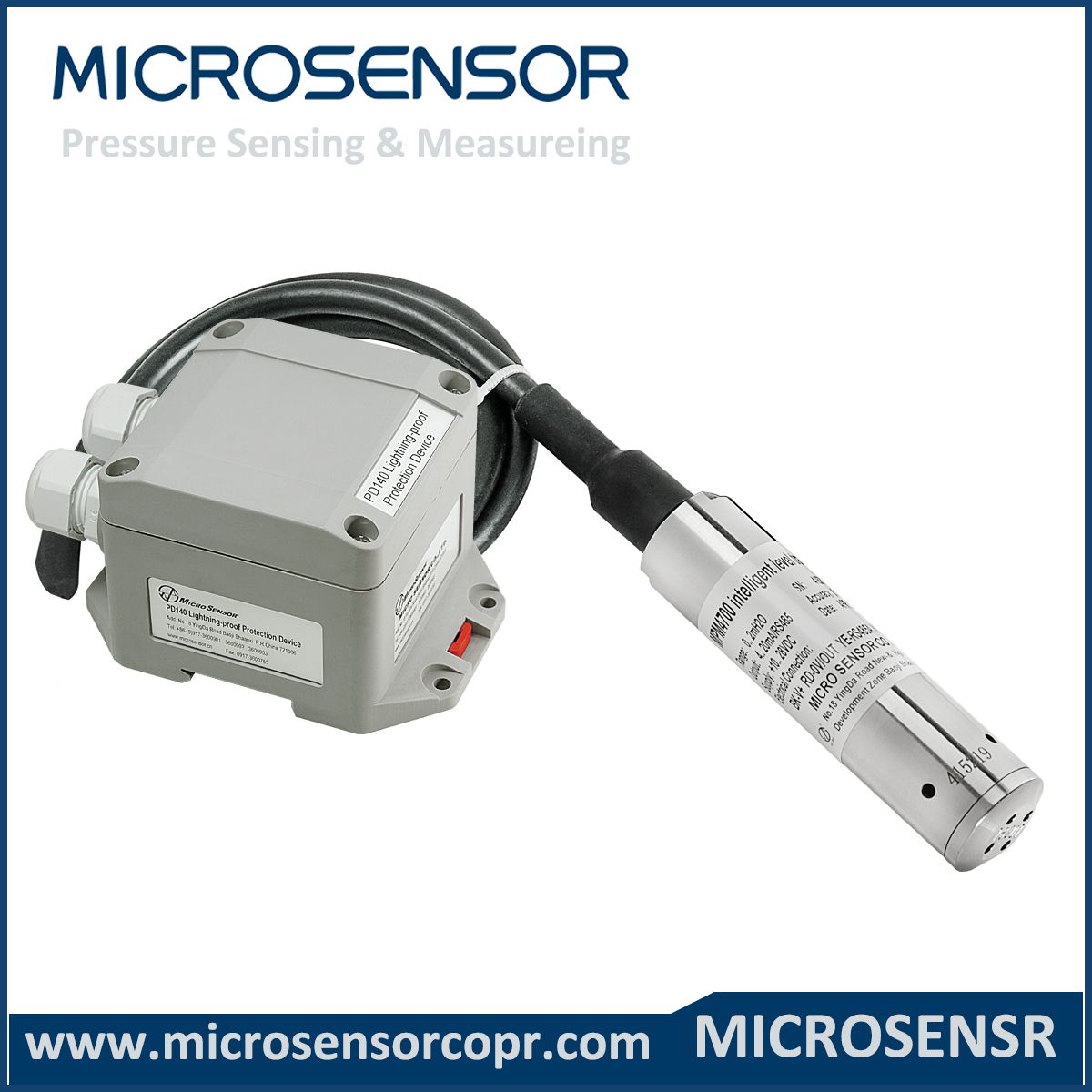

Intrinsic Safe IP68 Level Transmitter Mpm4700
Features: 1.Intrinsic Safe
2. 2-wire
3. Digital correction
4. RS485, HART optional
5. IP68
6. RoHS approved
7. Exia explosion-proof
8. OEM
9. Accuracy
Specifications| Basic range(mH2O) | 3.5 | 7 | 10 | 20 | 35 | 70 | 100 | 200 |
| Overpressure(mH2O) | 5 | 10 | 15 | 30 | 50 | 100 | 150 | 300 |
Note: The min.shrinked available range is 1/5 of basic range;
For the other pressure range between min.range and max.range, but not indicated on the above table, we enlarge the above basic pressure range to produce (overpressure unavailable); |
| Total accuracy | ±0.075%FS(min.) ±0.1%FS(typ.) ±0.25%FS(max.) |
| Stability | ±0.2%FS/year |
| Compensation temp. | (-10~70)ºC |
| Operation temp. | (-10~80)ºC |
| Storage temp. | (-40~100)ºC |
| Power supply | (10~28)VDC(RS485), (12~30)VDC(HARTâ) |
| (10~12)VDC(Intrinsic safe version) |
| Output | (4~20)mADC |
·RS485 communication interface(Custom or MODBUS protocol)
or HARTâcommunication protocol |
| Load | (4~20)mADC output,(U-12V)/0.02A(Ω) |
| RS485 bus line could connect with 99 transmitter |
| Insulation | 100MΩ/50V |
| Shock | 20g,(20~5000)Hz |
| Impact | 20g,11ms |
| Protection | IP68(Transmitter part);IP65(Junction box part) |
| Media compatibility | Diaphragm: stainless steel 316L |
| Housing: stainless steel 1Cr18Ni9Ti |
| O-ring: Viton |
| Weight | ~160g |
Total accuracy: including non-linearity, hysteresis, repeatability and thermal error;
For special temperature requirement, please contact with our company;
For pressure range 3.5mH2O ad 7mH2O, after shrinking, the total accuracy is60.5%FS.
Order Information:| MPM4700 | HARTâ Intelligent Level Transmitter |
| | | Range | Pressure range :0~3.5200mH2O |
| [0~XmH2O]L | X=actual pressure range, L=cable length , suggested L-X=(1~2)m |
| | | Code | Output signal |
| E | 4~20mADC |
| R4 | RS485 communication interface, Custom protocol
|
| R8 | RS485 communication interface, MODBUS communication protocol |
| H | HARTâ communication protocol |
| | | Code | Construction material |
| Diaphragm | Interface | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| | | Code | Others |
| C1 | M20×1.5 male, face type seal |
| C5 | M20×1.5 male, waterline seal |
| Yb | Aluminum connection box without display |
| Yc | MS200 water-proof connection box(default) |
| Yd | PD140 lightening-proof protection device |
| F1 | Fixed flange |
| i | Intrinsic safe version ExiaIIBT6 Ga |
| T | Ship-use |
| | |
| MPM4700 [0~10mH2O]12 ER4 22 Yc the whole spec |
| | | | | | | | | | | | | | |
