Intrinsic Safe Pressure Transducer with Good Performance Mpm430

Name: Intrinsic Safe Pressure Transducer with Good Performance Mpm430
Brand: all-electronics-online.com
SKU: 706054102
Availability: InStock
Rating: 5 (126 reviews)

Price:	US $ 10-100/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	mpm430
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	0~2...20kpa
Output:	Analog Sensor
Usage:	Pressure Sensitive Sensor
Theory:	Processing Pressure Measurement
Power Supply:	12~28VDC
Output Signal:	4~20madc 2-Wire
Accuracy:	0.5%Fs(Min.) 1.0%Fs(Typ.)
Long-Term Stability:	=<0.5%Fs/Year
Protection:	IP65
Media Temperature:	-30~80c
Pressure Range:	0~2...20kpa

Product Description

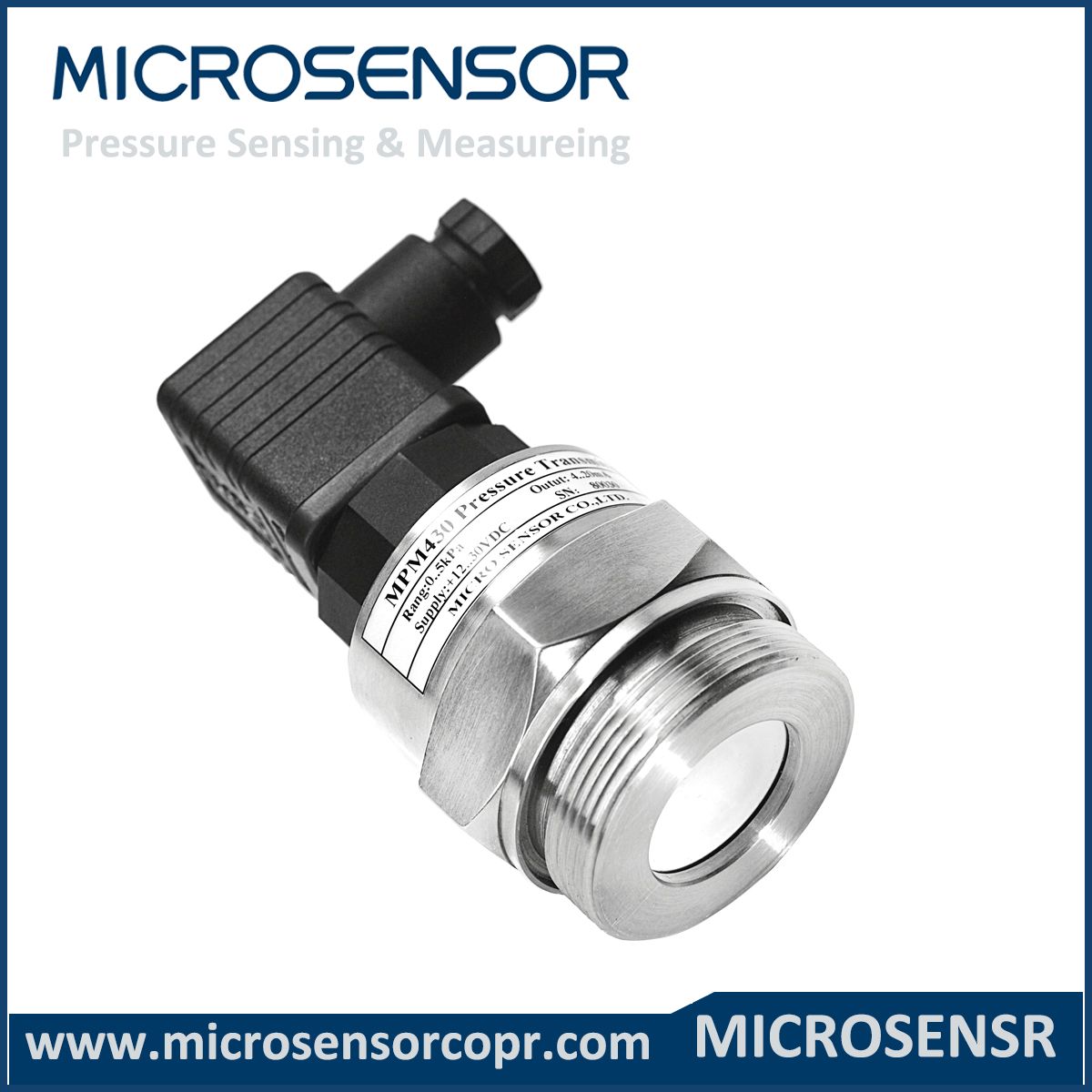

Intrinsic Safe Pressure Transducer with Good Performance MPM430

Features
  1.       Intrinsic Safe
  2.      For low pressure
  3.      Compact
  4.      Ceramic


Specification:
Range code and pressure range

Range code	0D	0C	0B
Sensor range	0~5kPa	0~10kPa	0~20kPa
Measure range	-2.5-0.5~0.55kPa	-10-1~110kPa	0~220kPa
Upper limit	5kPa	10kPa	20kPa
overpressure	400kPa	400kPa	600kPa

  1.        Power supply: 12~28VDC
  2.        Output signal: 4~20mADC 2-wire
  3.        Load: RL≤((U-12V)/20mA)-Rw(kΩ), U is power supply voltage, Rw is wire resistance
  4.        Accuracy: 0.5%FS(min.)     1.0%FS(typ.)
  5.        Thermal error: ≤±0.15%FS/10ºC   (-20ºC~+70ºC)
≤±0.2%FS/10ºC    (-30ºC~-20ºC)
  6.        Long-term stability: ≤0.5%FS/year
  7.        Shock: ≤±0.01%FS (X, Y, Z axes, 200Hz/g)
  8.        Environment temp.: -30ºC~+70ºC
  9.        Media temp. : -30ºC~+80ºC
  10.    Storage temp.: -30ºC~+85ºC
  11.    Protection: IP65(Code I general type, Code II non-cavity type)   IP68(Code III non-cavity          cable       connection type)
  12.    Pressure port and housing: stainless steel 1Cr18Ni9Ti
  13.    Sensor diaphragm: 96% alumina cramic
  14.    Sealing parts: Viton

Order Guide:

MPM430	Lower Pressure Transmitter
	Range	Measurement range Pa or kPa, X=actual pressure range; L=cable length for cable connection type transmitter, unit: m
	[0~X]L	Code	Pressure range
		0D	-2.5-0.5~0.55kPa
		0C	-10-1~110kPa
		0B	0~220kPa
		Code	Output signal
		E	4~20mADC
			Code	Others
			I	General type(M20×1.5 male)
			II	Non-cavity plug connection(M42×1.5 male)
			III	Non-cavity cable connection(M42×1.5 male)
				Code	Others
				G	Gague
				A	Absolute
				N	Available to measure vacuum

MPM430 [-2~10]kPa E I GN the whole spec
