Prod Model: |
mpm489 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measurement Range: |
-0.1MPa...0~0.01MPa...100MPa |
Accuracy: |
+-0.5%Fs |
Output Signal: |
4~20madc |
Overpressure: |
1.5 Times Fs |
Protection: |
IP65 |
Certificate: |
CE |
Storage Temp: |
-40~120c |
Compensated Temp: |
0~50c |
Operation Temp: |
-30~80c |
Housing: |
Stainless Steel |
Pressure Range: |
-0.1MPa...0~0.01MPa...100MPa |
Product Description

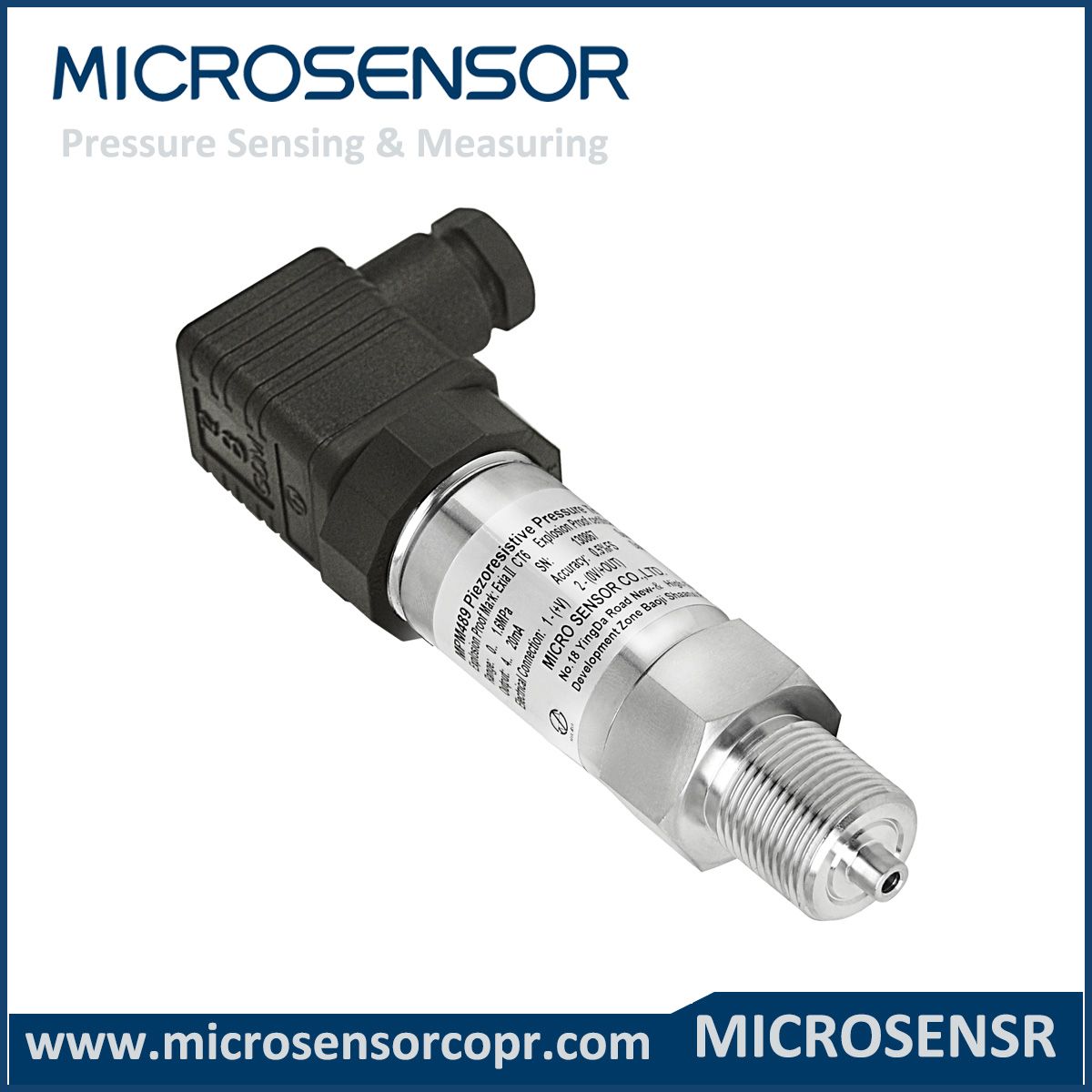

Intrinsic safe Pressure Transmitter For Oil MPM489
Features:1. Intrinsic safe;
2. Short protection;
3. Reliable performance;
4. Easy application;
5. Revered-polarity protection;
6. Cost-efficient product
Certificates:1. RoHS;
2. CE;
3. Ship-use;
4. Exd II CT6;
5. ISO
Applications:1. Oil;
2. Chemical industry;
3. Power station;
4. Hydrology & drainage;
5. Geology
Options:1. Gauge, sealed gauge, absolute;
2. LCD&LED digital indicator;
3. Flush diaphragm type;
4. Intrinsic safe version;
5. 4~20 m ADC output
Description:MPM489 Piezoresistive Pressure Transmitter has been certificated by RoHS, This product has excellent performance and good stability, it can be widely used to monitor and control flow pressure in petroleum, chemical industry, power station and hydrology, etc.
Specifications:1. Pressure range: -0.10~0.01100MPa
2. Overpressure: 1.5 times FS or 110MPa (min. value is valid)
3. Pressure type: gauge/ absolute / sealed gauge
4. Process connection: M20×1.5 male waterline seal (or on your demand)
5. Accuracy: 0.5%FS
6. Long term stability: max. ±0.3%FS/year
7. Zero thermal drift: 0.1%FS/ºC(≤100kPa);0.05%FS/ºC(>100kPa)
8. Span thermal drift: 0.1%FS/ºC(≤100kPa);0.05%FS/ºC(<100kPa)
9. Compensation temp.: 0~50ºC
10. Application temp.: -30~80ºC, intrinsic safe version: -10~60ºC , EXD: -20~60ºC
11. Storage temp.: -40~120ºC
12. Power supply: 11~28VDC,intrinsic safe version supplied by safe barrier
EXD: 8~28VDC
13. Output signal: 4~20mADC(2-wire), 0/1~5VDC(3-wire)
14. Load: ≤(U-10)/0.02Ω(2-wire), ≥10k(3-wire)
15. Housing protection: IP65
16. Electric connection: DIN43650 plug

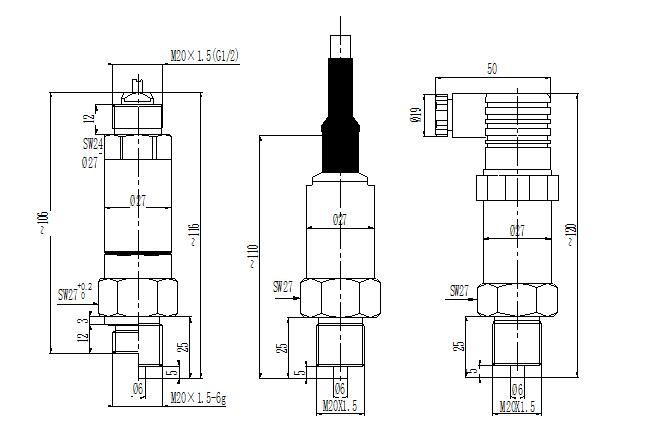

Outline Construction:

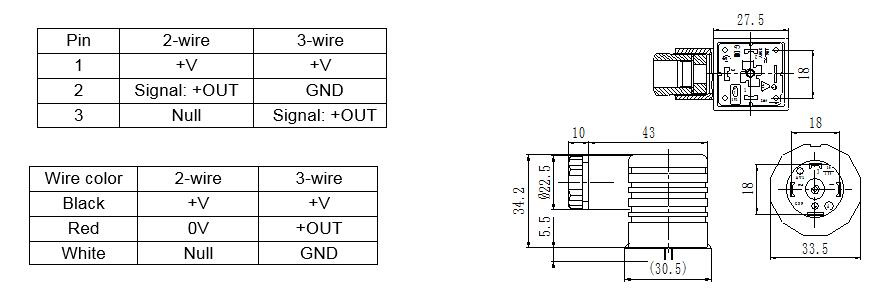

Electric Connection:Order guide:MPM489 | Pressure Transmitter |
| | Range | Pressure range: -0.10~0.01100MPa |
[0~X]kPa or MPa | X:the actual measured pressure |
| | Code | Output signal |
E | 4~20mADC |
F | 1~5VDC |
J | 0~5VDC |
| | | Code | Construction material |
Diaphragm | Pressure port | Housing |
22 | SS 316L | SS | SS |
24 | SS 316L | SS 316L | SS 316L |
25 | Tantalum | SS | SS |
35 | Tantalum | Hastelloy | SS |
| | Code | Others |
B1 | Plug connection |
B2 | Cable connection |
PC1 | Flush diaphragm, M20×1.5 male |
PC3 | Flush diaphragm, G1/2 male |
M3 | 3 1/2 digits LCD digital indicator |
M4 | 3 1/2 digits LED digital indicator |
i | Intrinsic safe version: ExiaIICT6 |
T | Ship-use |
d | ExdIICT6 |
C1 | M20×1.5 male, face type seal |
C3 | G1/2 male (used for flush diaphragm type) |
C5 | M20×1.5 male, waterline seal |
G | Gauge |
S | Sealed gauge |
A | Absolute |
| |
MPM489 [0~100kPa] E 22 B1C5G the whole spec |
| | | | | | | | | | | | |
