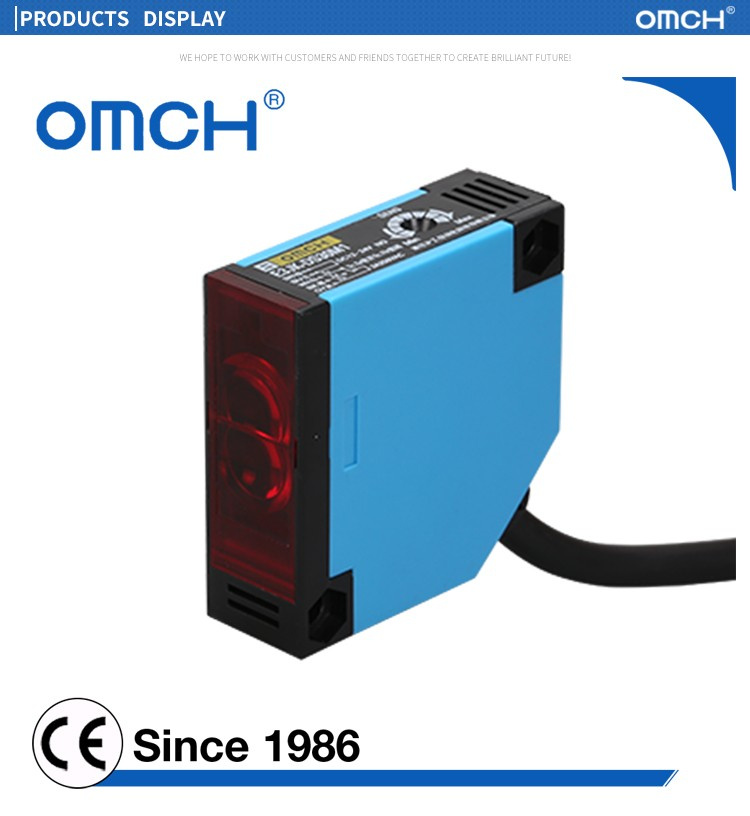

IP 65 Ce Ae3jk Optical Diffuse Photo Proximity Switch Sensor Manufacturing

Dimension

18X50X50

Mounting way

Diffuse type

Type

DC type

NPN

NO

AE3JK-DS30N1

AE3JK-DS50N1

NC

AE3JK-DS30N2

AE3JK-DS50N2

NO+NC

AE3JK-DS30N3

AE3JK-DS50N3

PNP

NO

AE3JK-DS30P1

AE3JK-DS50P1

NC

AE3JK-DS30P2

AE3JK-DS50P2

NO+NC

AE3JK-DS30P3

AE3JK-DS50P3

AC type

Two wire

NO

AE3JK-DS30A1

AE3JK-DS50A1

NC

AE3JK-DS30A2

AE3JK-DS50A2

relay output

DC illuminate

AE3JK-DS30M1-D

AE3JK-DS50M1-D

AC illuminate

AE3JK-DS30M1-A

AE3JK-DS50M1-A

DCnon- illuminate

AE3JK-DS30M2-D

AE3JK-DS50M2-D

AC non- illuminate

AE3JK-DS30M2-A

AE3JK-DS50M2-A

Detection distance

30cm+/-10%

10~50cm+/-10%

Set distance

Transparent/Opaque Object

Standard detection object

sensitivity adjuster

Response time

DC:1ms; AC:30ms

 DelP2 distance:

10% below of the detection distance

Detection object

Magnetic metal (the detection distance decreases when it is non-magnetic metal)

Supply voltage

DC type: DC12-24V(6-36V) Impulse(p-p) 10% below

Ac type: AC110-220V (36-250V) 50/60Hz

Consumption current

N.P type:13mA below   D type:0.8mA below   A type:1.7mA below

Control output

N.P type:300 mA below   D type:200mA below   A type:400mA below

Loop protection

N.P.D type: reversal connection protection, surge absorption, load short-circuit protection

A type: surge absorption

Ambient temperature humidity

During operation,storage: individually-30~+65(No freeze,no drew),

During operation,storage: Individually35~95%RH

Insulation resistance

50 MΩ about(DC500 megameter) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-30~+65,at+23,+/-15% detection distance

Temperature range-25~+60,at+23,+/-10% detection distance

Voltage influence

Inside+/-15%rated supply voltage range, at rated supply voltage value;

Inside +/-10% detection distance

Protection structure

IP65 ICE specification

material

Housing: Nickel plated brass; Detection surface: ABS
