IP65 AC 2-Wire Electric Light Sensor Switch

Name: IP65 AC 2-Wire Electric Light Sensor Switch
Brand: all-electronics-online.com
SKU: 840369185
Availability: InStock
Rating: 4.3 (44 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

IP65 ac 2-wire electric light sensor switch

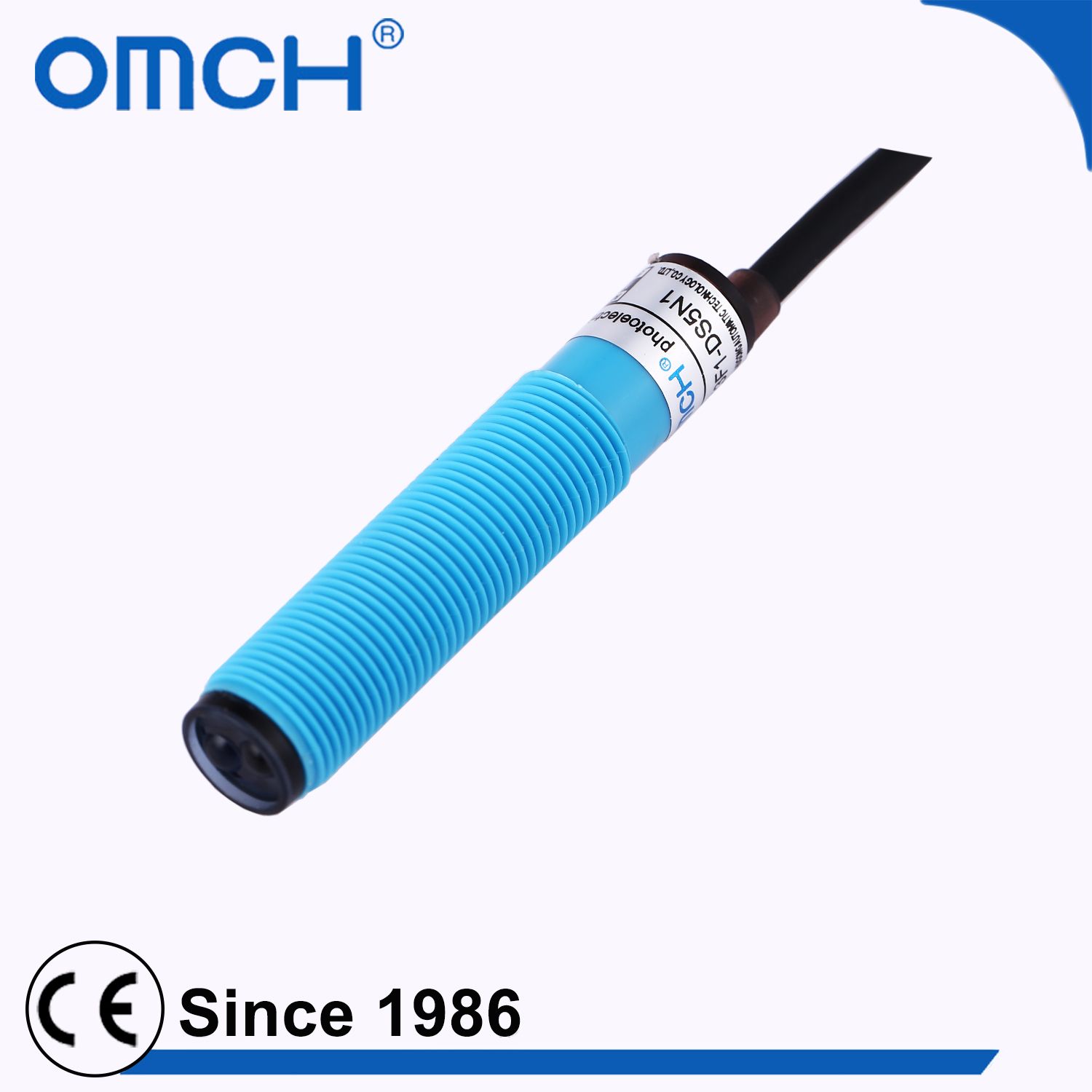

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimession					M12
Mounting					diffuse
Type	Ac type	Two wire	No	AE3F1-DS5A1		AE3F1-DS8A1
			Ac	AE3F1-DS5A2		AE3F1-DS8A1
Detection distance				5cm+/-10%/8cm+/-10%
Set distance				Transparent /Opaque object
Standard detection object				Fixed
Response time				1ms

Connection delay	1.5ms
Light Source	Infrared light 660nm
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:20mA below A type:1.7mA below
Control output	N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection sturcture	IP67 ICE specification
material	Nickel plated brass(ABS); Detection surface(lens)PMMA
