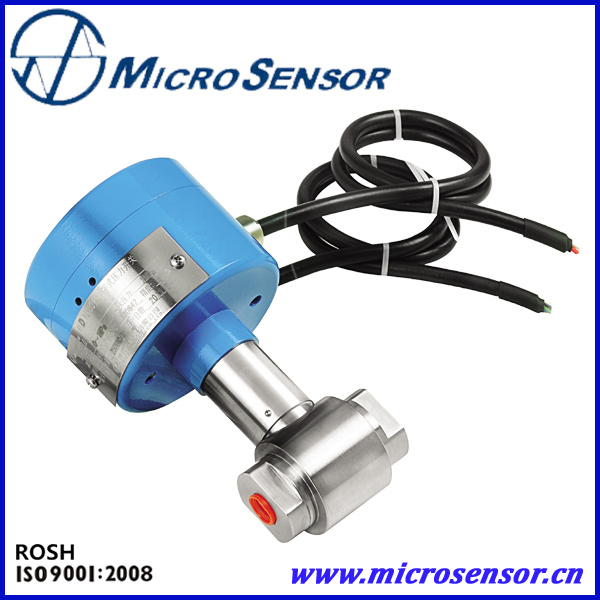

IP65 MPM580 Electronic Pressure Switch
Features:
1. IP65;
2. Easy observation;
3. High accuracy;
4. Various products
Application:
1. Power station;
2. Engineer;
3. Hydrology;
4. Chemical industry
Specifications:
| MPM580/580A | Pressure switch controlling range: -0.10~0.01100MPa, overpressure: 1.5 times FS or 110MPa(min.value is valid) |
| MPM580W/580AW | Level switch controlling range: 0~1200mH2O |
| MPM580WK/580AWK | Armoured level switch controlling range: 0~14mH2O |
| MDM580/580A | Differential Pressure controlling range | Allowing overpressure |
| + | - |
| 0~35kPa | 70kPa | 35kPa |
| 0~70kPa | 150kPa | 70kPa |
| 0~100kPa | 200kPa | 100kPa |
| 0~200kPa | 400kPa | 200kPa |
| 0~350kPa | 700kPa | 350kPa |
| 0~700kPa | 1400kPa | 700kPa |
| 0~1000kPa | 2000kPa | 1000kPa |
| 0~2000kPa | 4000kPa | 1000kPa |
| 0~3500kPa | 7000kPa | 1000kPa |
| Static pressure | ≤20MPa |
1. Accuracy: ≤61%FS(rep.+hys.)
2. Stability: ≤60.5%FS/year
3. Power supply: 18~24VDC
4. Consumption: ≤61W
5. Relay load: 250VAC/3A, 30VDC/5A
6. Relay life: >100000 times
7. Operation temp.: -10ºC~80ºC
8. Storage temp.: -40ºC~100ºC
9. Pressure port: stainless steel 1Cr18Ni9Ti Seal pad and O-ring: Viton
10. Diaphragm: stainless steel 316L Cable: Φ7.2mm PVC shielding cable
11. Electric housing: Aluminum-alloy Protection: IP65
12. Operation situation display: actual pressure ≤ lower limit value, L1 lights; (L1 is lower limit controlling indicating light)
actual pressure ≥ upper limit value, L2 lights;(L2 is upper limit controlling indicating light)
Order guide:
| MPM580 | Electronic Pressure Switch Control range: -0.10.01100MPa |
| MPM580W | Electronic Level Switch Control range: 0~1200mH2O |
| MPM580WK | Electronic Armoured Level Switch Control range: 0~14mH2O |
| MDM580 | Electronic Differential Pressure Switch Control range: 0~35kPa3.5MPa |
| | | Code | Housing outline |
| | The default is column electronic housing |
| A | Rectangle electronic housing |
| | | | Range | Control range: kPa, MPa or mH2O |
| [0~XmH2O]Lm | Level switch: 0~1200mH2O, X=actual max.measure range, L=cable length(m) |
| Armoured level switch: 0~14mH2O, X=actual max.measure range, L=armoured tube length(m) |
[0~X]kPa
or MPa | Pressure switch: -0.10~0.01100MPa, X=actual max. measure range |
| Differential pressure switch | Measure range (kPa) | Overpressure (kPa) | Measure range(kPa) | Overpressure (kPa) |
| + | - | + | - |
| 0~35kPa | 70 | 35 | 0~700kPa | 1400 | 700 |
| 0~70kPa | 150 | 70 | 0~1000kPa | 2000 | 1000 |
| 0~100kPa | 200 | 100 | 0~2000kPa | 4000 | 1000 |
| 0~200kPa | 400 | 200 | 0~3500kPa | 7000 | 1000 |
| 0~350kPa | 700 | 350 | |
| | | | Code | Relay |
| | 1 | Single relay |
| | 2 | Upper and lower limits two relays |
| | | | Code | Construction material |
| | Diaphragm | Interface | Electric housing |
| | 22 | SS 316L | SS | Aluminum-alloy |
| | 25 | Tantalum | SS | Aluminum-alloy |
| | 35 | Tantalum | Hastelloy | Aluminum-alloy |
| | | | Code | Others |
| | P | Flush diaphragm, G1/2 male | Only MPM580/580A |
| | C1 | M20×1.5 male, face type seal |
| | C3 | G1/2 male |
| | C5 | M20×1.5 male, waterline seal |
| | C4 | G1/4 male | Only MDM580/580A |
| | H/L | Upper and lower limit setting value(actual relay control value) |
| | G | Gauge | Only MPM580/580A |
| | A | Absolute |
| | S | Sealed gauge |
| | B2 | Cable connection(default cable length is 1.5m) |
| | F1 | Fixed flange | Only MPM580W/580AW/580WK |
| | |
|
| MPM580 A [0~1]MPa 2 22 C1(0.6/0.2MPa) the whole spec |
| | | | | | | | | | | | | | | | | | | |
