IP67 M18 NPN No 8mm Inductive Switching Transducer Proximity Sensor

Name: IP67 M18 NPN No 8mm Inductive Switching Transducer Proximity Sensor
Brand: all-electronics-online.com
SKU: 840386465
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 3.8-4.9piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

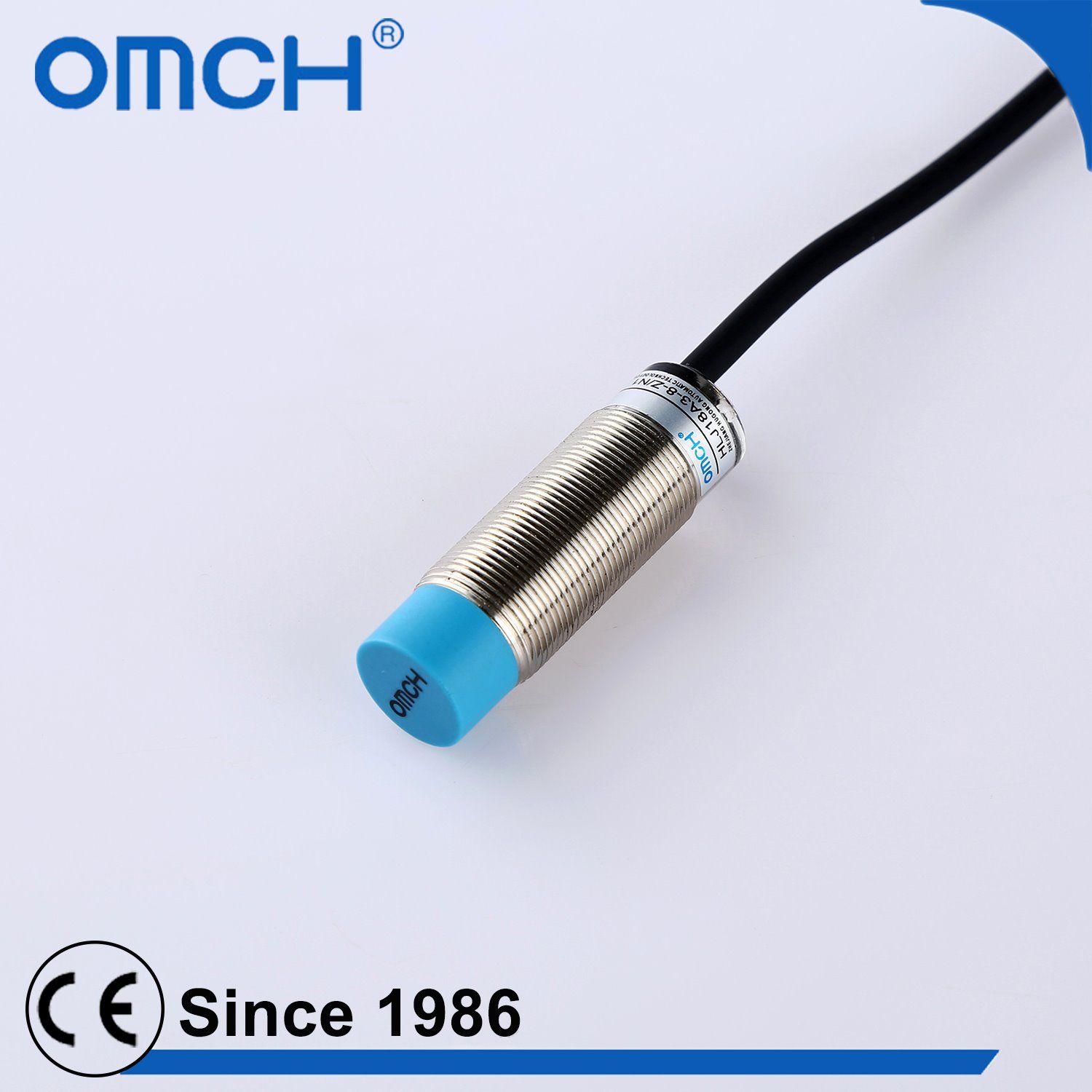

IP67 M18 NPN NO 8mm Inductive Switching Transducer Proximity Sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type Specification
We sincerely welcome agents from all over the world

Model	HLJ18A3-8-Z/N1
mounting way	non-flush type
output	6~36VDC, NPN, NO
sensing distance	8mm; 0~7mm set
response frequency	DC:>=800Hz AC:50Hz
Standard detection object	Iron12121
Protection structure	IP67 ICE specification
material	Housing: stainless steel; Detection surface: ABS
outlet	2 meter wire

delay distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
