IP67 Waterproof M30 Inductance Proximity Sensor Switch

Name: IP67 Waterproof M30 Inductance Proximity Sensor Switch
Brand: all-electronics-online.com
SKU: 840386615
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

IP67 Waterproof M30 Inductance Proximity Sensor Switch

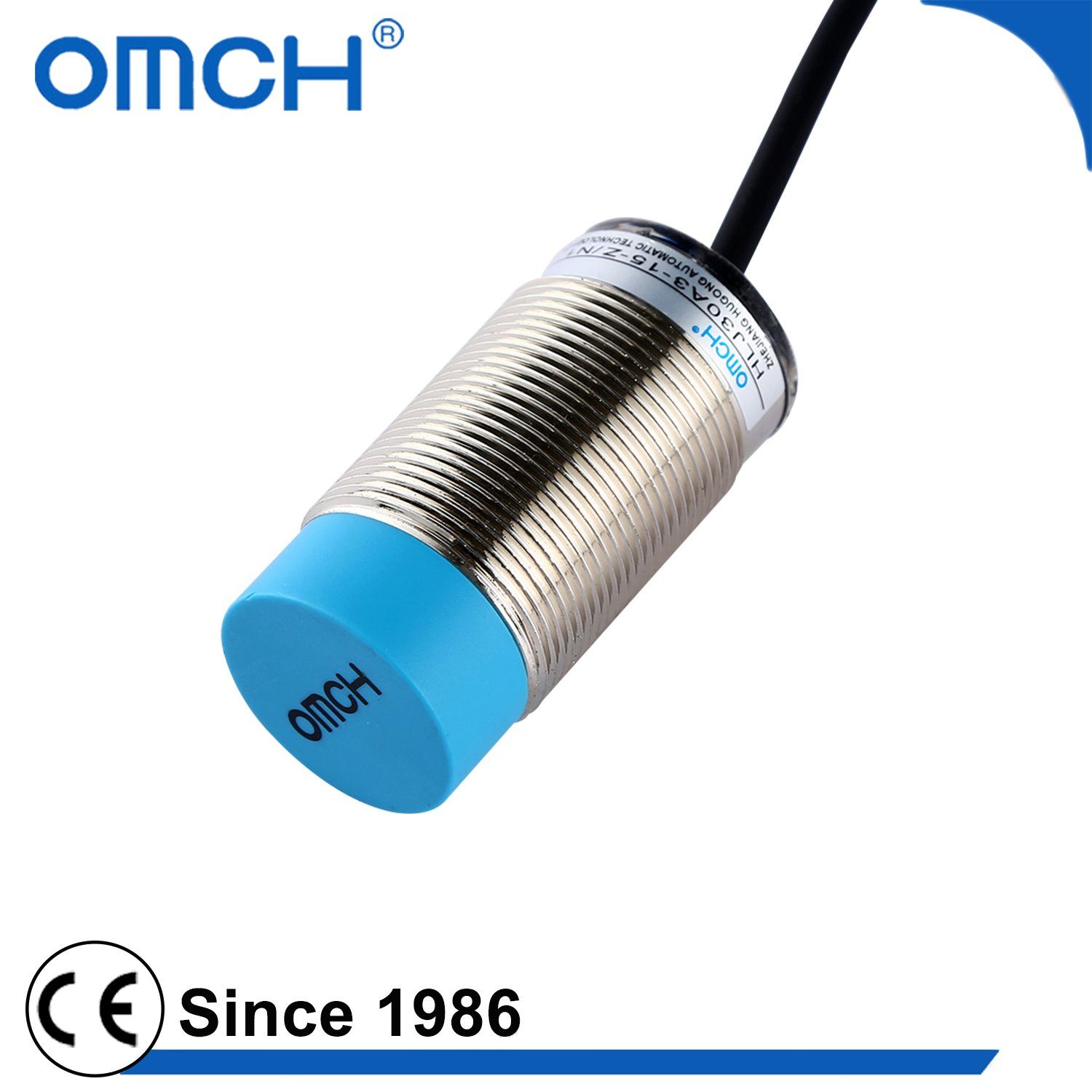

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type Specification
We sincerely welcome agents from all over the world

Dimension				M30
Mounting way				Non-Screen shield type
TYPE	DC TYPE	NPN	NO	HLJ30A3-15-Z/N1
			NC	HLJ30A3-15-Z/N2
			NO+NC	HLJ30A3-15-Z/N3
		PNP	NO	HLJ30A3-15-Z/P1
			NC	HLJ30A3-15-Z/P2
			NO+NC	HLJ30A3-15-Z/P3
		Two Wire	NO	HLJ30A3-15-Z/D1
			NC	HLJ30A3-15-Z/D2
	AC TYPE	Two Wire	NO	HLJ30A3-15-J/A1
			NC	HLJ30A3-15-J/A2
		3 wire	NO+NC	HLJ30A3-15-J/A3
Set distance				15 mm+/-10%
Standard detection object				0~13mm
Response frequency				Iron54541
Response frequency				DC:>=0.5kHz AC:50Hz

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP67 ICE specification
material	Housing: stainless steel; Detection surface: ABS
