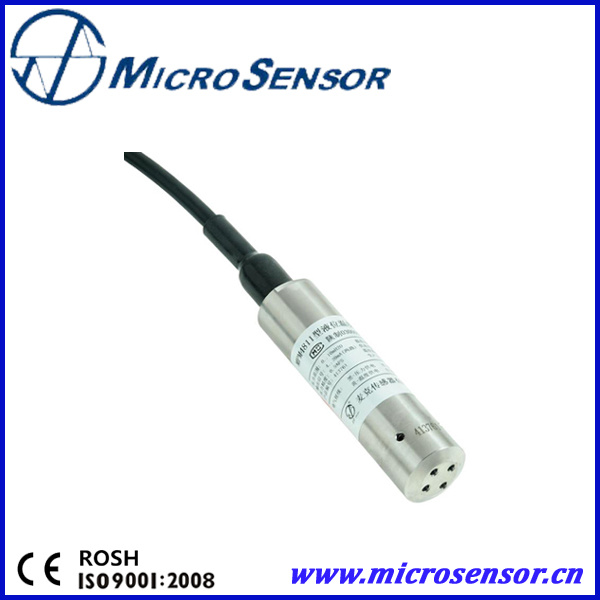

                                             IP68 Level Transmitter for Oil MPM4811

Features:
1.    IP68;
2.    Reversed-polarity protection;
3.    Level and temperature measurement;
4.    Double standard output

Applications:
1.     Petroleum;
2.     Chemical;
3.     Power plant;
4.     City water supply;
5.     Hydrology

Specifications:

1.                   Range: 1, 2, 5, 10, 20, 50, 100, 200mH2O; -200~1080ºC;
2.                   Overpressure: 1.5 times FS;
3.                   Accuracy: ±0.5%FS (level); ±2ºC(temperature);
4.                   Stability: ±0.2%FS/year
5.                   Zero thermal drift: ±0.02%FS/ºC
6.                   FS thermal drift: ±0.05%FS/ºC
7.                   Operation Temp.: -20ºC~80ºC;
8.                   Storage Temp.: -40ºC~100ºC
9.                   Electric Connection: 4-wire (level & temperature double output)
10.                 Power Supply: 12V~30V DC
11.                 Output Signal: 4mA~20mA (level) + 4mA~20mA (temperature)
12.                 Load(Ω): <(U-12V)/0.02A

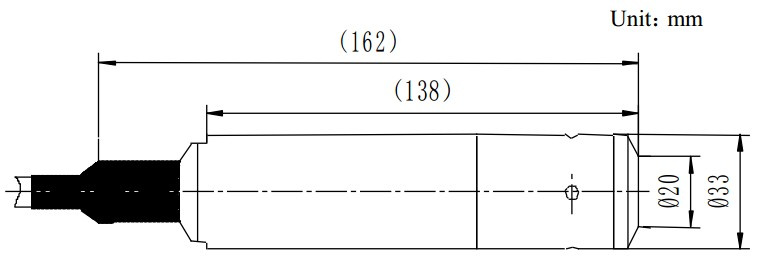

Outline Consruction:

Order guide:

MPM4811

Level Transmitter

Range

1, 2, 5, 10, 20, 50, 100, 200mH2O

-200~1080ºC

[0~XmH2O][0~TºC]L

X:level measurement T:temperature measurement
L:cable length (Unit: meter, for users option)

Code

Output Signal

4mA~20mA DC

Code

Construction Material

Diaphragm

Pressure Port

Housing

SS 316L

Tantalum

Code

Others

Aluminum connection box with display

MS200 water-proof connection box(suggested)

PD140 lightening-proof protection device

MPM4811 [0~50mH2O] [0~60ºC]60 E 22 Yc the whole spec.

Prod Model:	mpm4811
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	1, 2, 5, 10, 20, 50, 100, 200mh2o
Accuracy:	0.5%Fs
Overpressure:	1.5 Times Fs
Long Term Stability:	+-0.2%Fs/Y
Output Signal:	4~20madc
Power Supply:	12~30VDC
Storage Temp:	-40~100c
Operation Temp:	-20~80c
Fs Thermal Drift:	0.05%Fs
Wire:	4 Wire
