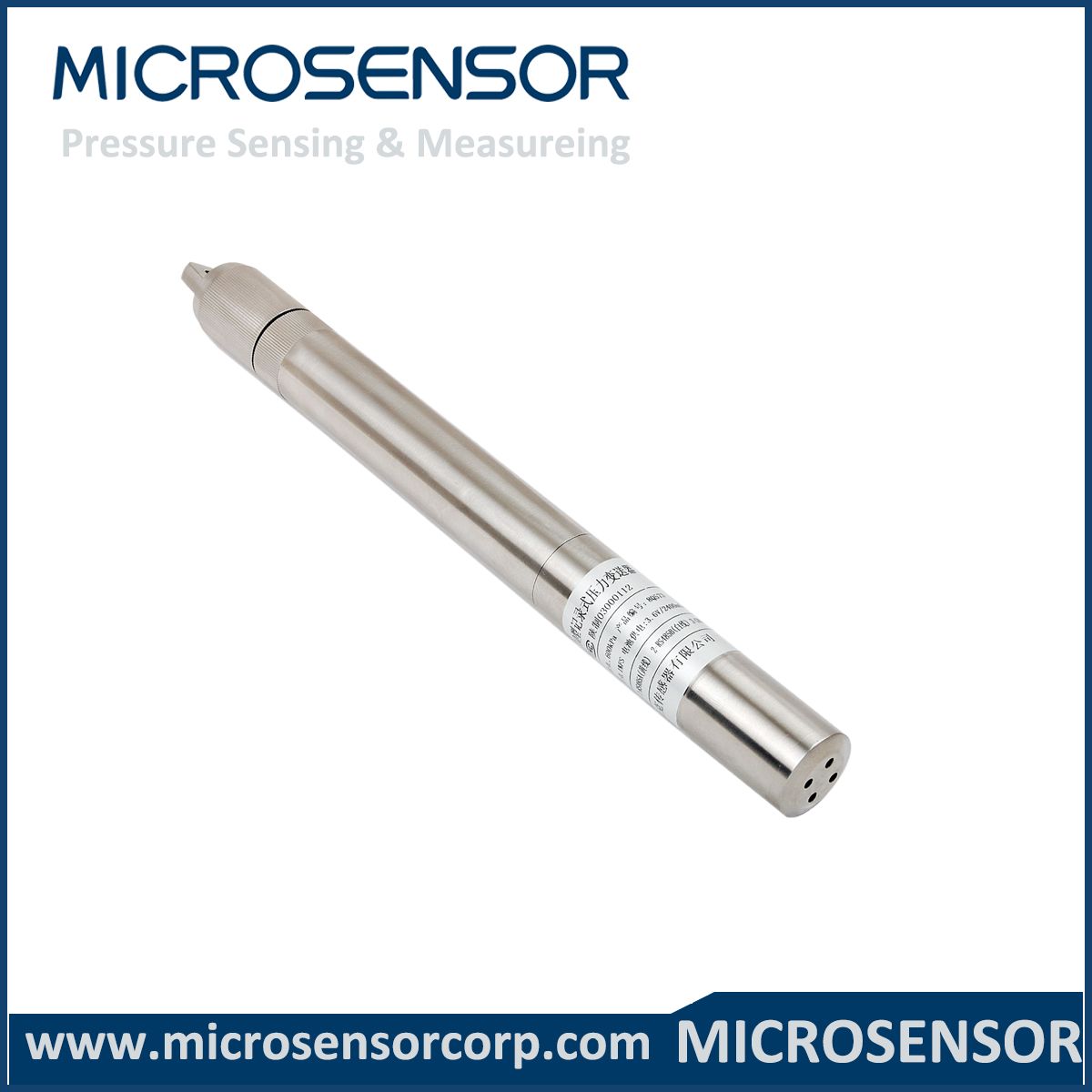

IP68 Recording Transmitter for Level (MPM4710)
Feature•The latest microprocessing technique; better accuracy and resolution for pressure and temperature signals; digital compensation for both linearity and temperature error of pressure sensor;
•Good data security due to nonvolatile memory units;
•Single 3.6V/2400mAh Lithium cell for power supply; low current ≤30uA for Standby Mode; long-term collection available;
•Full stainless steel housing; multi-track O-ring sealing; easy to change battery and read data;
•Complete recording to pressure, temperature and the happening time;
•Flexible recording time setting, the min. 1s, the max. 255 hours 59 minutes 59 seconds;
•The max. 50,000 recording;
•Bus line RS485 protocol; freely wake up transmitter to set and read pressure value, temperature value and recording;
•Factory setting restore available, could reduce cost when the user makes incorrect setting or maintenance;
•High stable design, use hardware watch-dog and multi-track sofeware inspection to reduce system halted;
•Protection class IP68, long-term submersible application available;
•High accuracy class at wider temperature range -30ºC~80ºC.
Introduction:MPM4710 Recording Transmitter is supplied by battery, could work without manual control. The transmitter could record level or pressure change continuously. By setting proper data collection interval, the transmitter could record from several days to several years. Very low power consumption is another advantages, one AA baterry 3.6V/2400mAh could work many years continuously. MPM4710 has an absolute pressure sensor inside, to measure lower level, please be careful for atmosphere change.
Application:- Petroleum
- Chemi-industry
- Power station
- Water conservancy
- City flood control
- City water supply and drainage
Specification:| Pressure range | 0~0.1…1.1MPa(Absolute) |
| Overpressure | 2×pressure range |
| Power supply | Cylinder 3.6V/2400mAh Lithium cell |
| Output signal | RS485 digital |
| Environment temp. | -30ºC~80ºC |
| Error | -10ºC~40ºC 0.10%FS(typ.) 0.2%FS(max.)
-30ºC~80ºC 0.15%FS(typ.) 0.3%FS(max.) |
| Stability | <0.2%FS/year (typ.) |
| Resolution | 0.01%FS |
| Temperature resolution | 0.1ºC(-30ºC~80ºC) |
| Temperature accuracy | ±1ºC |
| Record interval | 1s~255 hours 59 minutes 59 seconds
(1s~10 days 15 hours 59 minutes 59 seconds) |
| Record data quantity | Recording stops when the records are 50,000 (including date, time, temperature and pressure) |
| Static current | (no collection, no recording, no communication)<30uA |
| Battery life | Typ. (once per hour)about 7 years |
| Construction material | Housing: SS 316L O-ring: Viton |
| Protection class | IP68 |
| Others | Weight: about 500 g Resolution: 100MΩ/50V
Shock: 20g 20~5000Hz Impact: 20g 11ms |

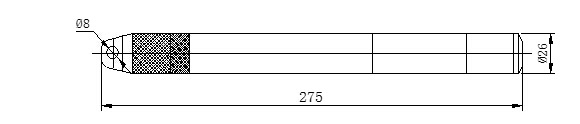

outline Construction:

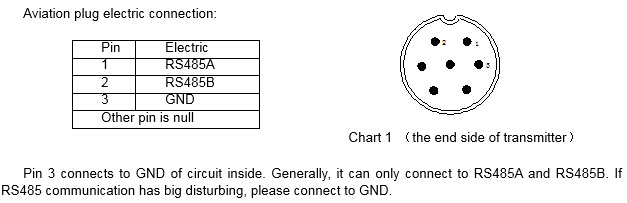

Electric Connection: Order Guide | MPM4710 | Recording Transmitter |
| | | Range | Pressure range: 0~0.1…1.1MPa(absolute) |
| (0~X) kPa | X= actual pressure range |
| |
| Code | Output signal |
| R4 | RS485 interface |
| | Code | Others | |
| A | Absolute | |
| | | | | |
| MPM4710 (0~600)kPa R4 A the whole spec |
