Keli C3 Alloy Single Point Load Cells Electronic Weighing Scales
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FSPC |
| Capacity: |
250,300,500,800,1000kg |
| Pattern: |
Single Point |
Product Description

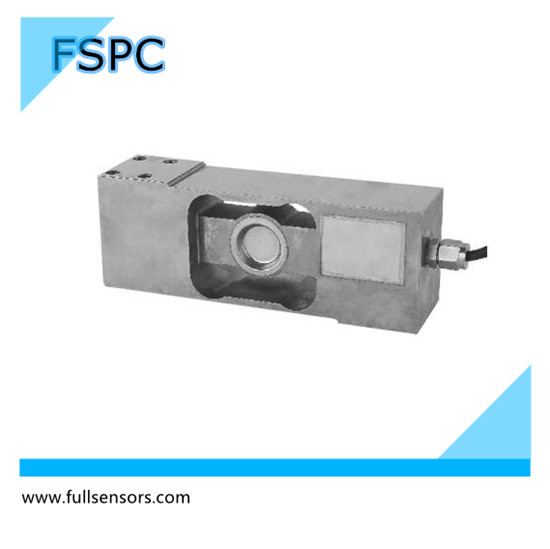

Keli C3 Alloy Single Point Load Cells for Electronic Weighing Scales1. Single point type load cell
2. Material: aluminum alloy or stainless steel
3. Surface: anodized treatment
4.Protection grade: IP67
5.Application: retail, bench and counting scales
6.Certificates of CE, ISO,RoHS, OIML etc
7. Wide capacities listed as 250,300,500,800,1000kg
| Item | Unit | Parameter |
| Accuracy class to OIML R60 | | 0.03 | 0.05 |
| Maximum capacity(Emax) | kg | 250,300,500,800,1000kg |
| Sensistivity (Cn) / Zero balance | mV/V | 2.0±0.2 / 0±0.1 |
| Temp. effect on zero balance (TK0) | % of Cn/10K | ±0.0175 |
| Temp. effect on sensitivity (TKc) | % of Cn/10K | ±0.0175 |
| Hysteresis error (dhy) | % of Cn | ±0.02 |
| Non-linearity (dlin) | % of Cn | ±0.0270 |
| Creep (dcr)over 30 min | % of Cn | ±0.0250 |
| Eccentric error | % | ±0.0233 |
| Input (RLC) &Output resistance (R0) | Ω | 400 ± 20 & 352 ± 3 |
| Nominal range of excitation voltage (Bu) | V | 5~15 |
| Insulation resistance (Ris) at 50Vdc | MΩ | >5000 |
| Service Temp. range (Btu) | ºC | -20...+50 |
| Safe load limit (EL) &Breaking load (Ed) | % of Emax | 150 & 200 |
| Protection class according to EN 60 529 | | IP67 |
Material: Measuring element
Cable fitting
Cable sheath | | Alloy steel or stainless steel
Stainless steel
PVC |
| Maximum capacity (Emax) | kg | 250 | 300 | 500 | 800 | 1000 |
| Min.load cell verification inter (vmin) | kg | 0.05 | 0.1 | 0.1 | 0.2 | 0.2 |
| Maximum platform size | mm | 600 x 500 |
| Deflection at Emax (snom), approx | mm | <0.5 |
| Weight (G), approx | kg | 1.8 |
| Cable: Diameter :ø5mm, Length | m | 3 |
| Mounting: Cylindrical head screw | | M8-10.9(800~1000kg: M8-12.9) |
| Tightening torque | N.m | 25N.m(800~1000kg:35N.m) |

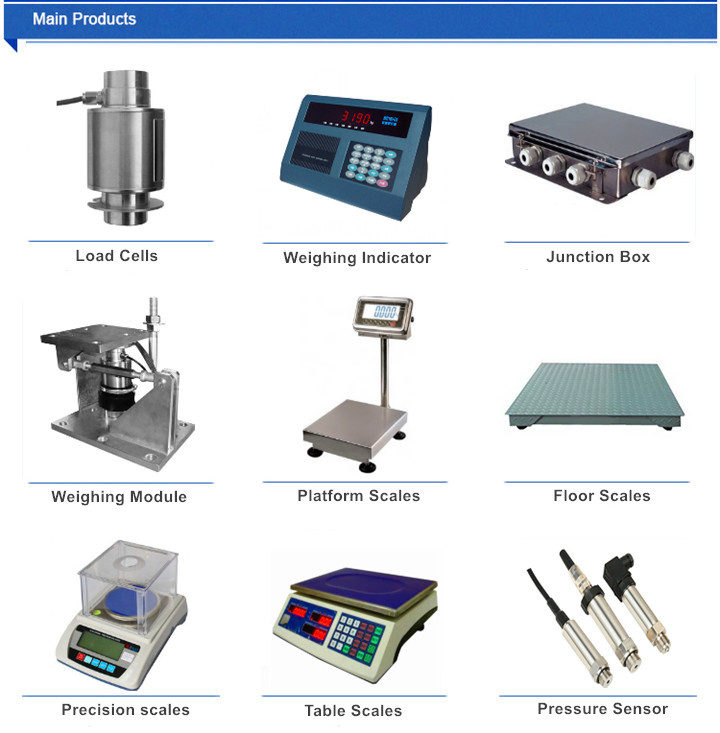

Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

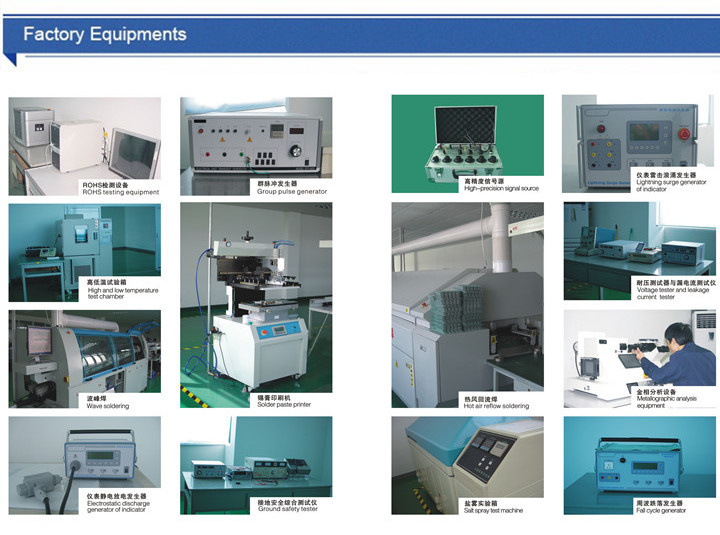

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reach theoptimal standard.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we willaccount price andhaulage time of each way for your selection before placing order.
CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
