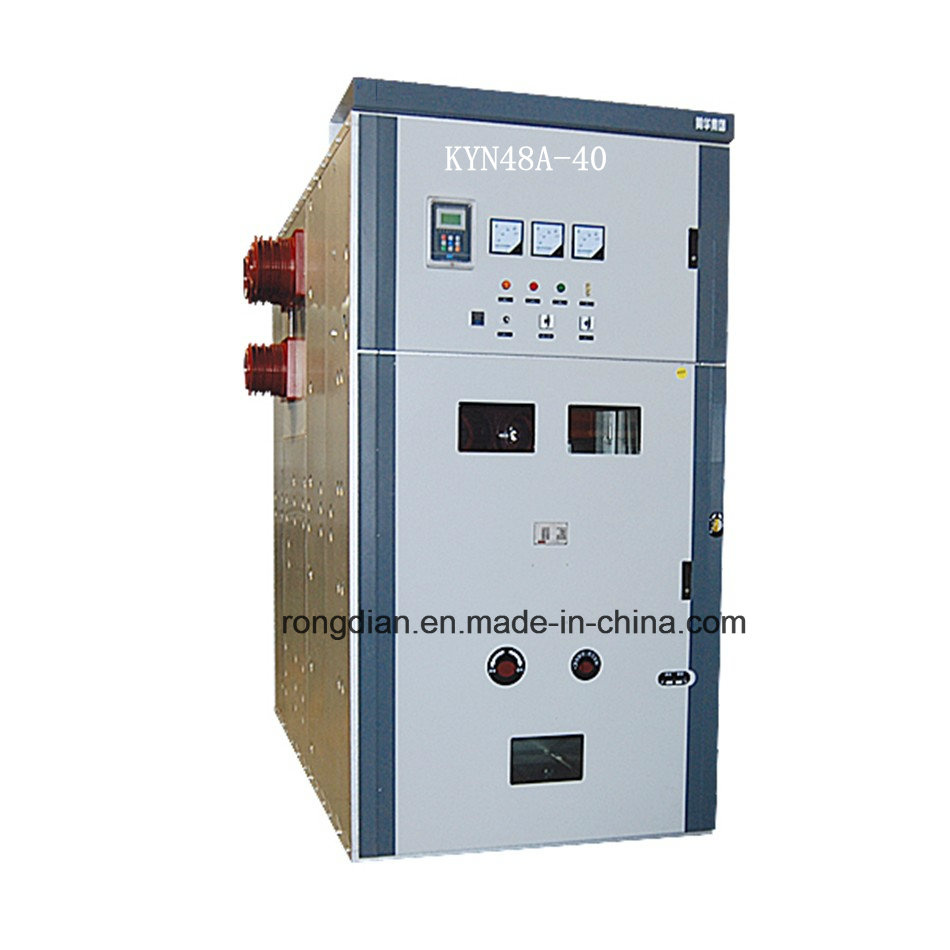

1. Product name: KYN48A-40 High Voltage 40.5KV Withdrawable Switchgear
2. Product description: Based on absorbing domestic and international advanced manufacturing skills, Shenzhen Rongdian Enterprise Co., Ltd has designed and developed a new product KYN48A-40 High Voltage 40.5KV Withdrawable Switchgear, which is applied in three-phase electric power system of rated voltage 3-40.5KV, 50HZ and rated current 630-5000A. Power station use it to finish electricity transmission and substation of power electricity system. Industrial and mining enterprises use it to get and distribute power and realize the goal of control, protection and detection. It can be used to start high voltage electromoter frequently and meet demand of five-prevention chain. The switchgear can be matched VD4 vacuum circuit breaker of ABB company and also can be matched domestic VIS vacuum circuit breaker. It is a kind power distribution equipment of superior performance, having those advantages of flexible combined solution, compact structure, safety reliability, convenient maintainance, impact resistance, corrosion resistance and so on.
3. Main applications: The intermedium switchgear is applied in power distribution equipment of three phase alternative current 50Hz and rated voltage 40.5kV. It is used widely in cable ring net of processing industry and civil and power supply terminal. And it is specially applied in electricity system of small secondary distribution station, Sub-section post,industrial and mining enterprises,urban residential community,airport,railway,tunnel,high altitude building and so on and it is used as power received and distributed.
A.Application: In the power system of 3.6 to 40.5kV, for control, protection and monitoring.VCBs produced by other manufactures could be installed in the switchgear panel.
B.Parameters: Rated voltage: 3.6V
C.Rated current: 630-5000A
D.Rated short-circuit breaking current: 16kA
4. Performance features: KYN48A-40 High Voltage 40.5KV Withdrawable Switchgear, the cabinet is made by high quality aluminized zinc plate and is shaped by CNC machine processing, fixed by rivets, stable and strong structure; Each functional isolated room is separated and sealed mutually. The protection level of isolated room is IP20 and protection level of shell can reach to IP40. Switchgear is divided into bus line chamber, cable chamber, handcart chamber and instrumentation control chamber; The main breaker is equipped with domestic and international high quality vacuum breaker of VS1, VD4 and other type. It has complete five protection inter-locking, safe and convenient operation and complete display of first and second. It is equipped with comprehensive or separate original parts protection according to design. It can be connected with cable in normal bottom incoming and outcoming at the same time or in top incoming and outcoming according to design. It can be combined multi-functions cabinet of incoming line, measured PT contact, outcoming line and turning. The switch handcart is interchangeable and is checked and maintained more conveniently.
A.Compact design
B.Easy operation and installation
C.Reliable interlock
D.Less Maintenance
5. Technology Prameters:| No. | Item | Unit | Data |
| 5.1 | Rated voltage | kV | 3.6,7.2,12,24,40.5 |
| 5.2 | Rated current of circuit breaker | A | 630,1250,1600,2000,2500,3150,4000,5000 |
| Rated current of switchgear | A | 630,1250,1600,2000,2500,3150,4000,5000 |
| 5.3 | Rated frequency | Hz | 50 |
| 5.4 | Rated short-circuit breaking current | kA | 16,20,25,31.5,40,50 |
| Rated short-time withstand current | kA | 16,20,25,31.5,40,50 |
| Rated short circuit continuous time | s | 4 |
| 5.5 | Rated peak withstand current | kA | 40,50,63,80,100,125 |
| Rated short-circuit closing current(peak) | kA | 40,50,63,80,100,125 |
| 5.6 | Rated insulation level: 1min power frequency withstand voltage | kV | 24,32,42 between poles, pole to earth |
| kV | 24,32,48 between open contacts |
| 5.7 | Rated insulation level: Lighting impulse withstand voltage(peak) | kV | 40,60,75 between poles, pole to earth |
| kV | 46,70,85 between open contacts |
| 5.8 | Rated power frequency withstand voltage | kV | 95/1min |
| 5.9 | Protection level | Switchgear shell | | IP3X |
| Compartments(door opened) | | IP2X when the VCB or CB doors are open. |
