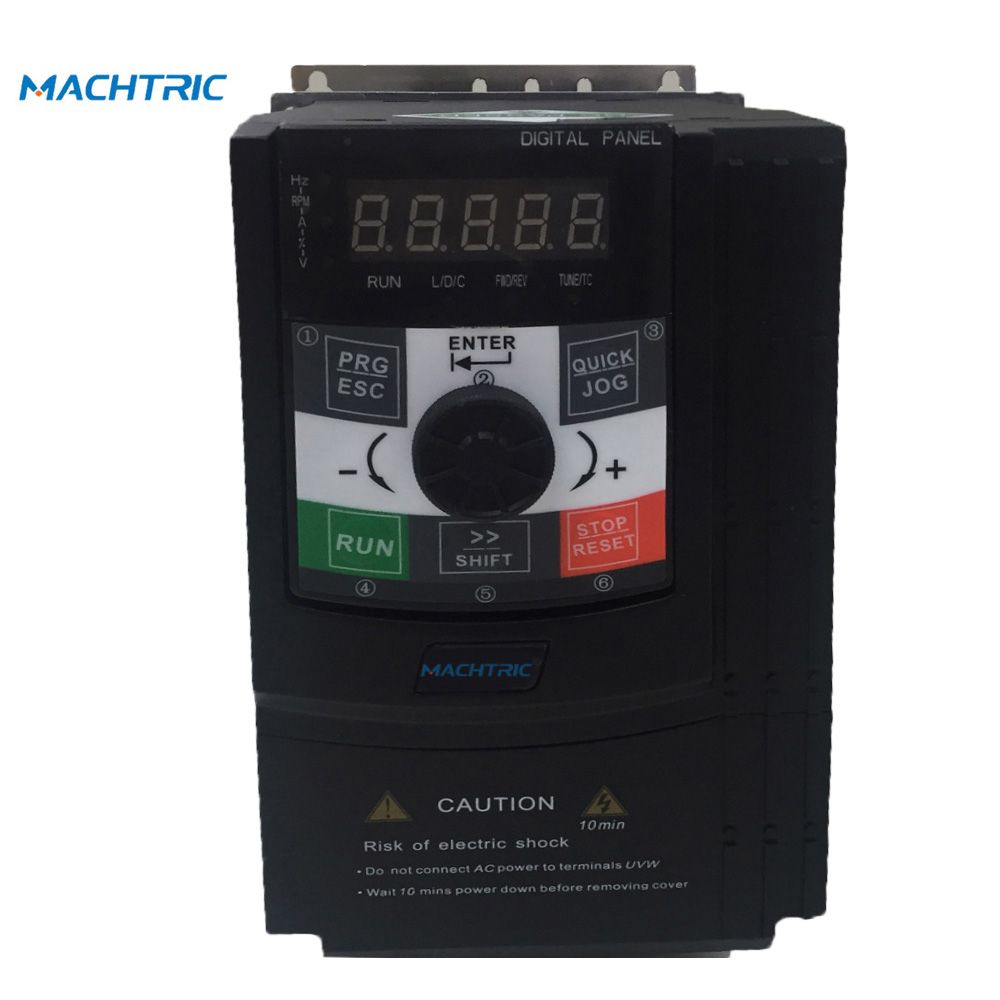

Large Torque Frequency Inverter Tension Control VFD for Winder Machine
| Price: |
US $ 79/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S1100VG |
| Item Name: |
VFD with Tension Control for Winder Machine |
| Carrier Frequency: |
1-15kHz |
| Control Mode: |
V/F Control/ Vector Flux Control |
| Output Power: |
220V(0.4-2.2kw);380V(0.75-400kw) |
| Multi Speed: |
16 Segments Speed |
| Jog Frequency Range: |
0.00-50.00Hz |
| With C3 Filter: |
Yes |
| Pid Control: |
Built-in |
| Maximum Frequency: |
600.00Hz |
| Interface RS-485: |
Standard RS485 Communication Function |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
Heavy Loading Machines |
| Brand: |
Machtric |
Product Description
Large Torque Frequency Inverter Tension Control VFD For Winder Machine
1.Product Specification:| Item | S1100VG |
| | Maximum frequency | 400H |
| | Input frequency | Digital setting: 0.01Hz |
| | resolution | Analog setting: maximum frequency ×0.1% |
| | Control mode | V/F control |
| | Vector flux control 1 |
| | Vector flux control 2 |
| | Startup torque | G modle: 0.5Hz/180%(Open loop Vector flux control) |
| | P model: 0.5Hz/120%(Open loop Vector flux control) |
| | Speed adjustment | 1:200(Open loop Vector flux control) |
| | range |
| | Speed stabilization | Open loop Vector flux control:≤±0.5% |
| | precision |
| Basic function | Speed stabilization | Open loop Vector flux control:≤±0.3% |
| | precision |
| | Torque response | ≤40ms(Open magnetic flux vector control) |
| | Overload capacity | G model: 150% rated current 60s; 180% rated current 3s |
| | P model: 130% rated current 60s; 150% rated current 3s |
| | Torque hoist | Automatic torque hoist; manual torque hoist 0.1% to |
| | 30.00% |
| | V/F curve | Linear V/F, Multi-point V/F, and Square V/F |
| | Speed-up and | Straight line or S curve speed-up and speed-down |
| | Speed-down curve | mode;Two kinds of speed-up and speed-down |
| | | time;Speed-up and speed-down time ranges between 0.0s |
| | | to 3000.0min. |
| | DC brake | DC brake frequency:0.00Hz to maximum frequency;
brake time:0.0s to 36.0s,and brake current value: 0.0% to 100.0%. |
| | Jog control | Jog frequency range:0.00Hz to 50.00Hz;jog |
| | speed-up/speed-down time: 0.0s to 3000.0s. |
| | Simple PLC and MS speed running | It can realize a maximum of 16 segments speed running |
| | via the built-in PLC or control terminal. |
| | Built-in PID | It is easy to realize process-controlled close loop control |
| | system. |
| | (AVR)Auto | It can keep constant output voltage automatically in case
of change of mains voltage. |
| | voltage regulation |
| | Torque limit and control | "Shovel" characteristics, the runtime automatic torquelimit, prevent frequent
over-current trip; closed loop vectormodel can realize the torque control |
| Individua-lized function | Peripherals self-detection upon | It can conduct safety detections on the peripherals upon power-on,
including earth and short circuit detections. |
| power-on |
| Shared DC bus | It can realize the function that multiple inverters share the DC bus. |
| function |
| JOG key | Programmable key: Select the command channel switching/forward
and reverse rotations/jog operation. |
| Display | LED display | The machine has the LED keyboard,and realize parameter
settings,status monitoring function. |
| and |
| Keyboard | LCD display | Optional, / English prompts content |
| Operation | Parameter Copy | Keyboard can be copied using the parameters to achive
the rapid replication parameter. |
2.Product Features:1.Enhanced Control and Performance
2.Switchable Dual Rating Operation Mode:Normal Duty/Heavy Duty
3.Various Functions:(Built-in programmable Logic Controller,PID Control Option,Multi speed control with 16 step frequency selection)

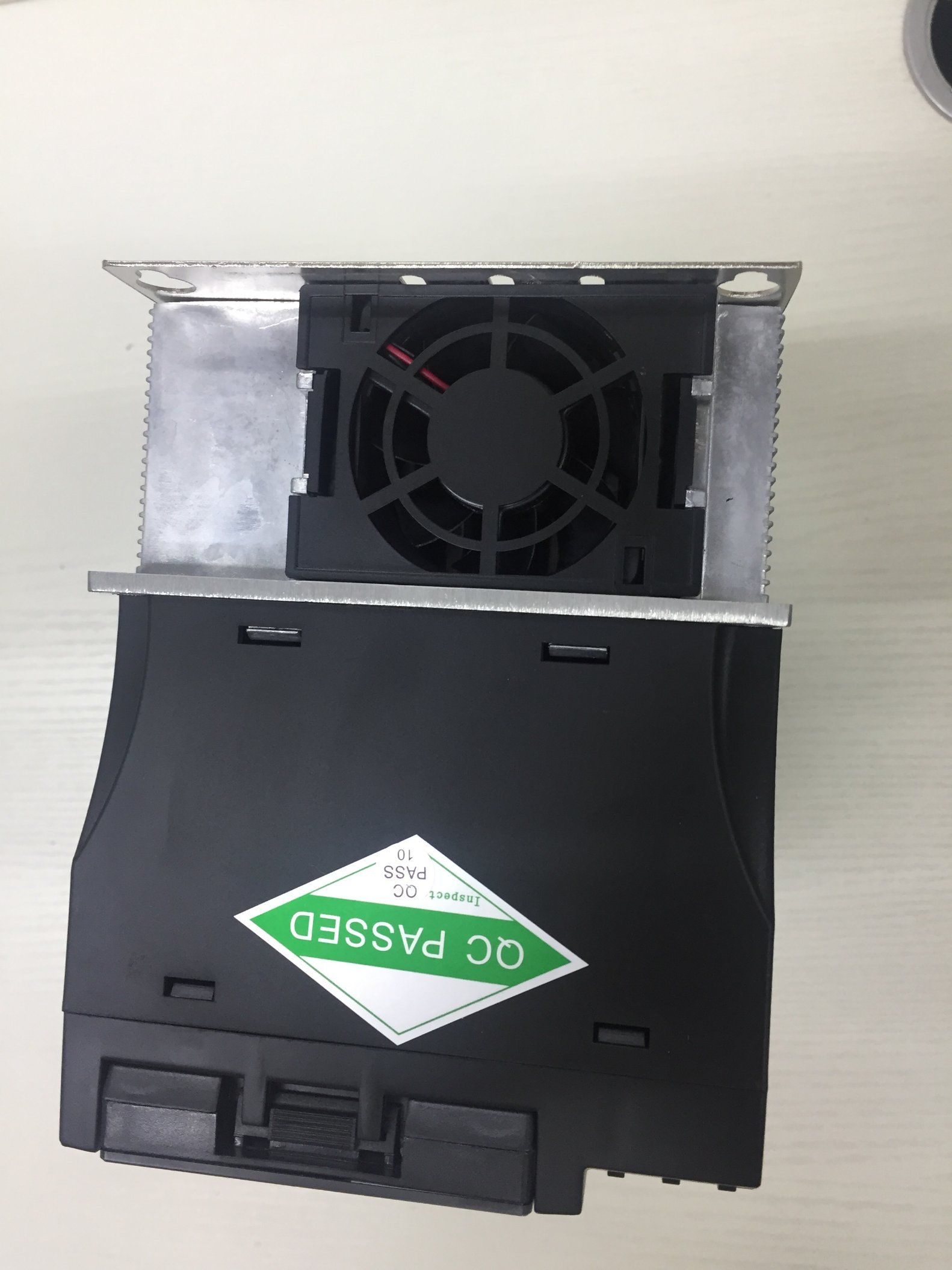

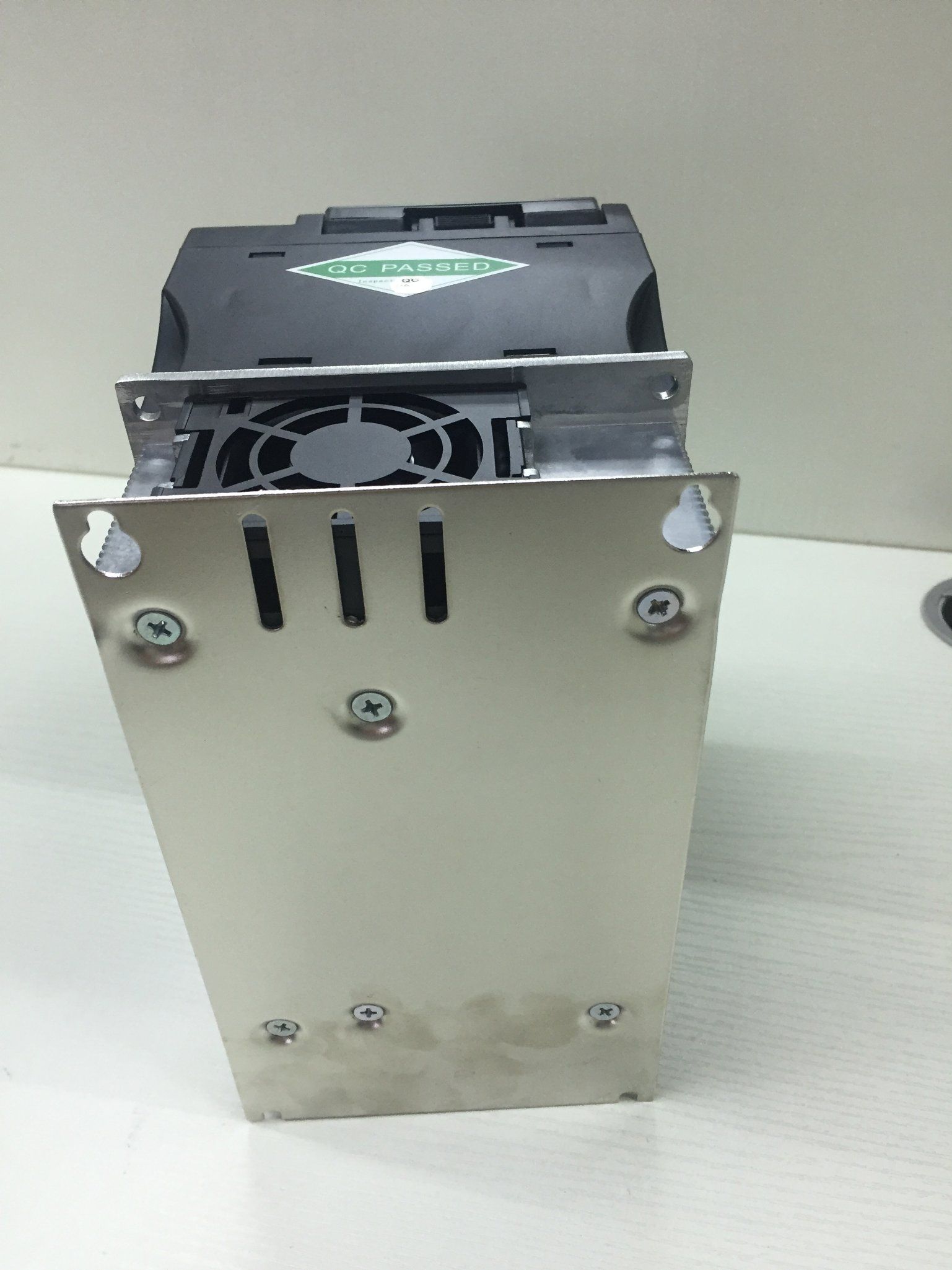

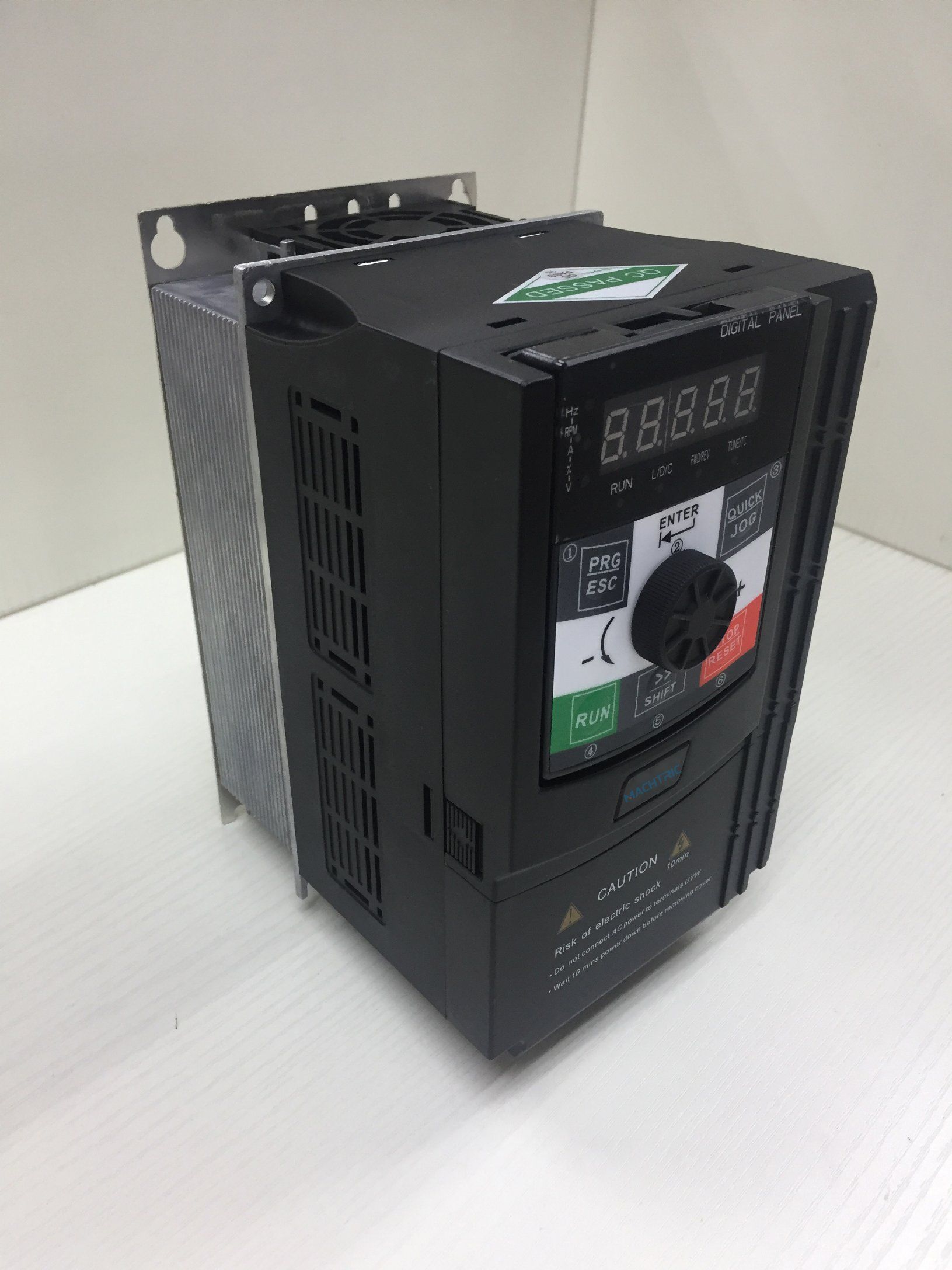

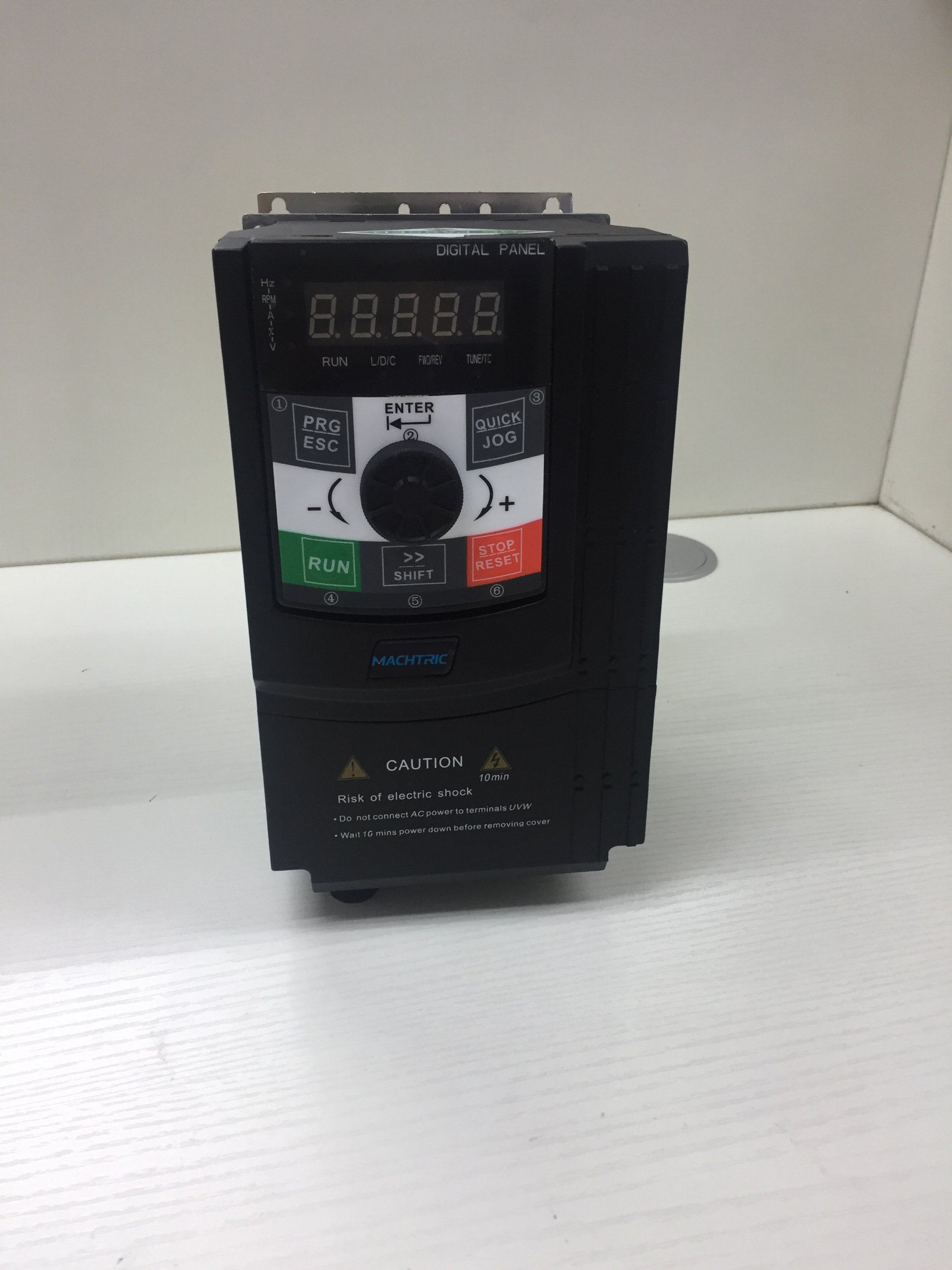

4.Protection of environment(Environment oriented design,Improved ecological characteristics)3.Product Show:
4.Why choose our Frequency inverter ?More than 15 years - we are more than 15 years professional manufacture frequency inverter
More than 50 countries- we exported our products to more than 50 countries all over the world.
Professional work team- we can accept OEM ODM
Powerful production capacity - we can offer a large quantity products each month.
Certification -we have passed CE
We offer 24 hours service
Welcome to you any time visit our factory5.Contact Us:
