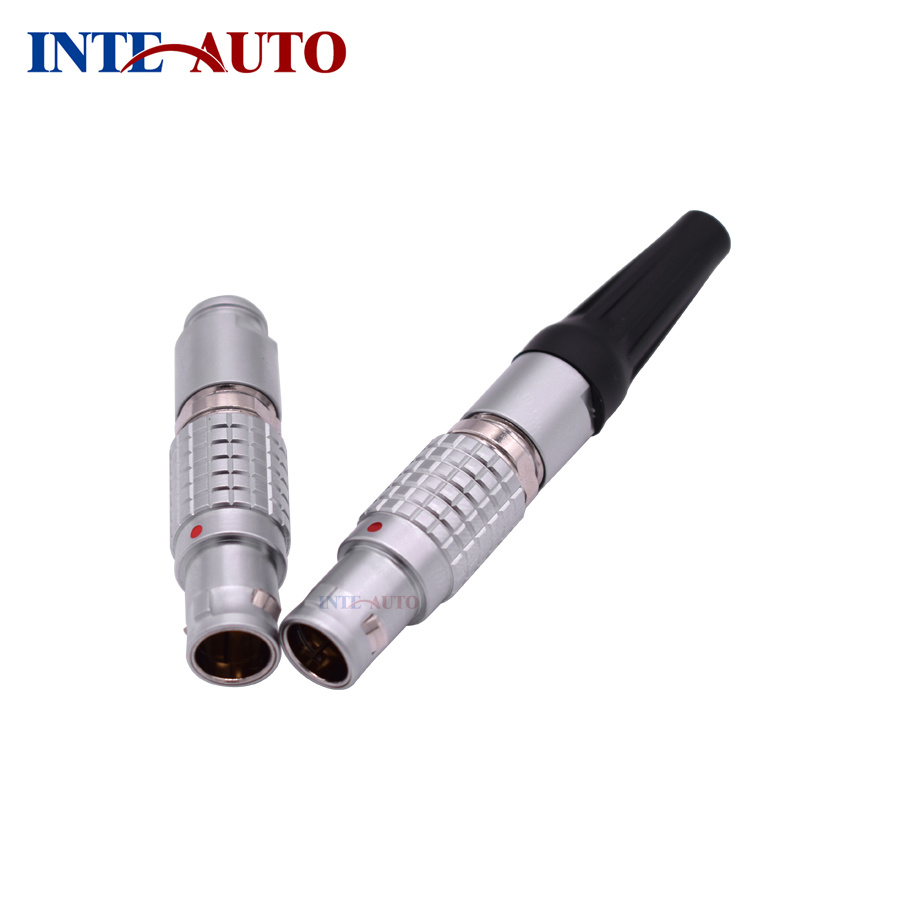

Lemos Connector 12 Pins Circular Male Connector with Self-Locking
Price: |
US $ 8-12/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
INT13-FGG. 2B. 312. CLAD70Z |
IP Degree: |
IP50 |
Contacts: |
Soldering |
Insulator Material: |
PPS |
Sleeve Material: |
PSU |
Contacts Type: |
Solder |
Sample: |
Free |
Shipping Way: |
by TNT DHL UPS FedEx |
Lead Time: |
Inventory |
Number Of Contacts: |
12 Pins |
Product Description
B series connectors provide the following main features:
1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system ("G" key standard)of similar connectors for connector alignment
4.360°screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder,print contacts (straight or elbow)
7.High packing density for space savings
Technical characteristics:
Mechanical and Climatically
1.Endurance:>5000 mating cycles;
2.Humidity :Up to 95% at 60ºC;
3.Temperature range:-45ºC, +125ºC;
4.Resistance to vibration :15g(10Hz-2000Hz)
5.Shock resistance:100g,6MS
6.Salt spray corrosion test :>48h;
7.Protection index (mated) :IP50.
Industry Application:
It is widely used on all kinds of medical equipments, especially for the signal transmission, Medical Equipment, Audio/Video, Test and Measurement, Communications product line.
Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30Pins2B 12 Pole circular push pull male connector

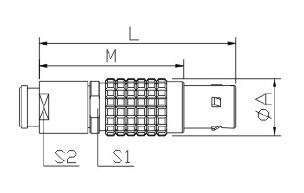

Model (FGG).Series (00…3B).Key(G).Straight Plug, Cable collet.Nut for fitting a bend reliefModel | Series | L | M | A | S1 | S2 |
INTFGG | 00 | 34.5 | 19 | 6.4 | 5.5 | 6 |
INTFGG | 0B | 35 | 25 | 9.5 | 8 | 8 |
INTFGG | 1B | 41 | 30 | 12 | 10 | 9 |
INTFGG | 2B | 48 | 36 | 15 | 13 | 13 |
INTFGG | 3B | 57 | 42 | 18 | 16 | 15 |

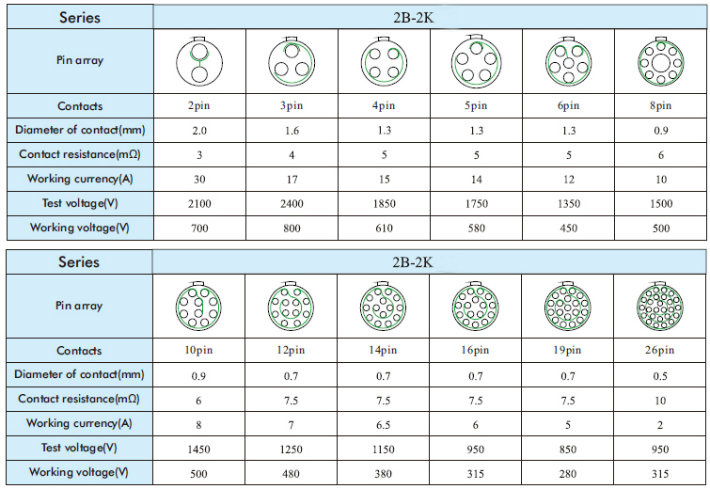

Insulator specs for B series:Product Details:
INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products proved to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.INTEAUTO Certifications &Contact INFO:
PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen
INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.
Electrical Connectors for Main Industry:
-Machine Manufacturer Industry.
-Vehicle testing facilities.
-Military and Aerospace.
-Test and Measurement.
-Nuclear Technology.
-Industrial Control.
-Medical apparatus.
-Military Industry.
-Communications.
-Automotive.
-Audio/Video.
-Power/Oil & Gas.
