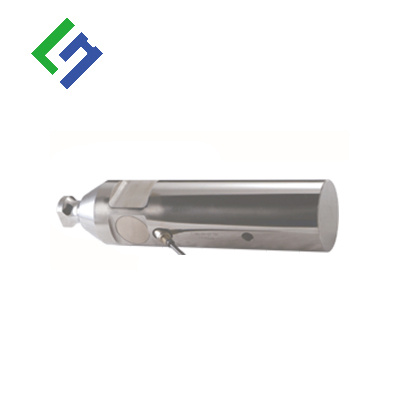

Lhx-4 Alloy Steel Shear Beam Load Cell for Weighing Scales

Name: Lhx-4 Alloy Steel Shear Beam Load Cell for Weighing Scales
Brand: all-electronics-online.com
SKU: 839690235
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 40-700/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Materials: Alloy Steel
Single fixed beam load cell, rotundity section structure, simple to install, easy to use,good interchangeability.
Alloy steel, nickel plated, special potted seal or hermetically sealed, good humidity resistance, ideal for various hostile environments.
Suitable for small or medium size electronic platform scales, crane scale, hopper scale, and various process control device, etc.

Capacity	1.25klb, 2.5klb, 5klb, 10klb, 25-50klb, 75klb
Rated output	2.00+/-0.05(≥37.5k is 3.0)
Nonlinearity	± 0.02%F. S
Hysteresis	± 0.03%F. S
Repeatability	± 0.02%F. S
Creep(30)	± 0.02%F. S
Zero balance	± 1%F. S
TCO	± 0.02%F. S /10º C
Input resistence	385± 10Ω
Output resistence	350± 3Ω
Insulation resistence	≥ 5000M
Operating tem range	-20~+60º C
Safe overload	120%F. S
Recommend excitation	10v DC/AC
Material	Alloy steel, stainless steel

Exhibition Show

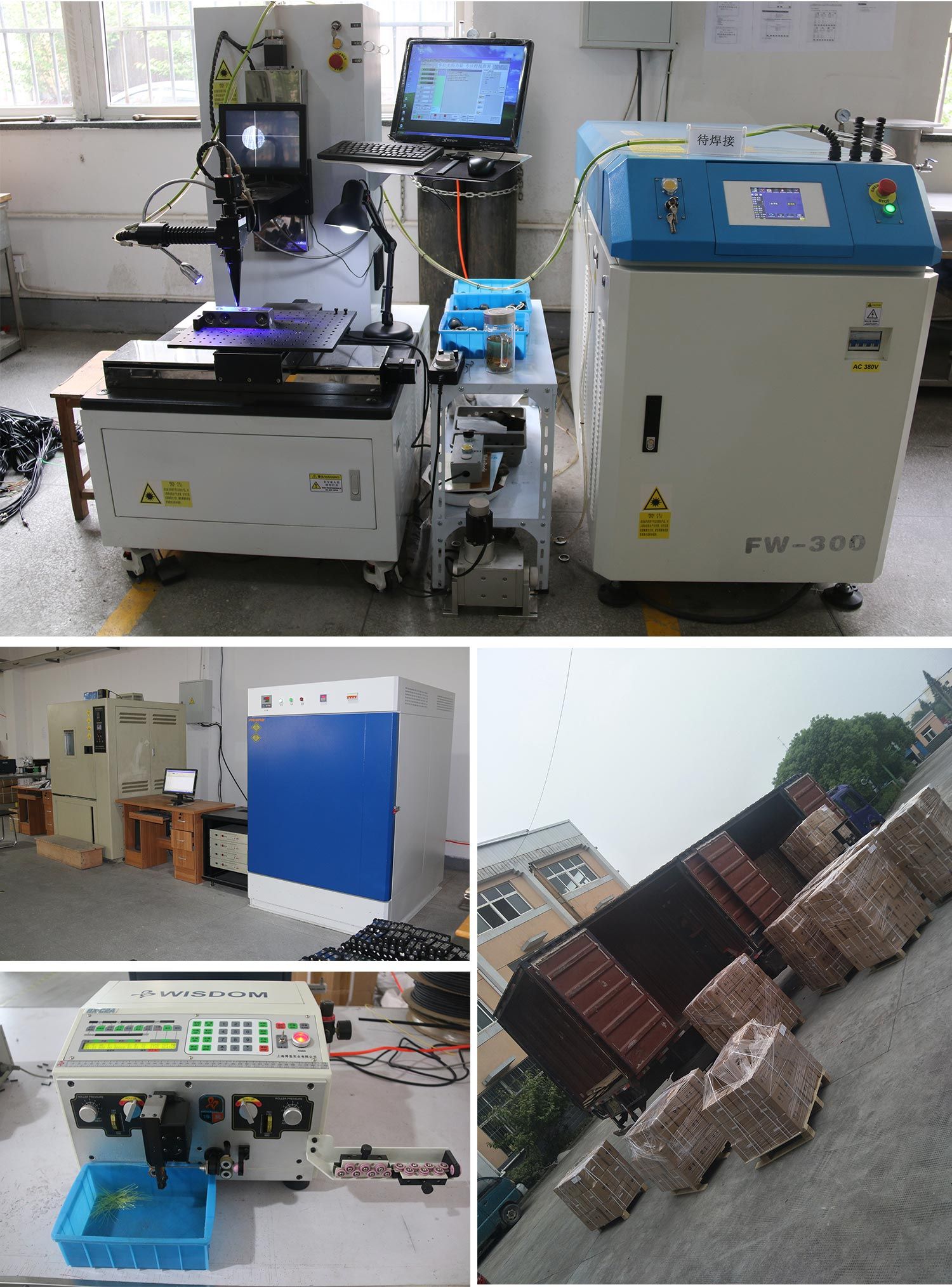

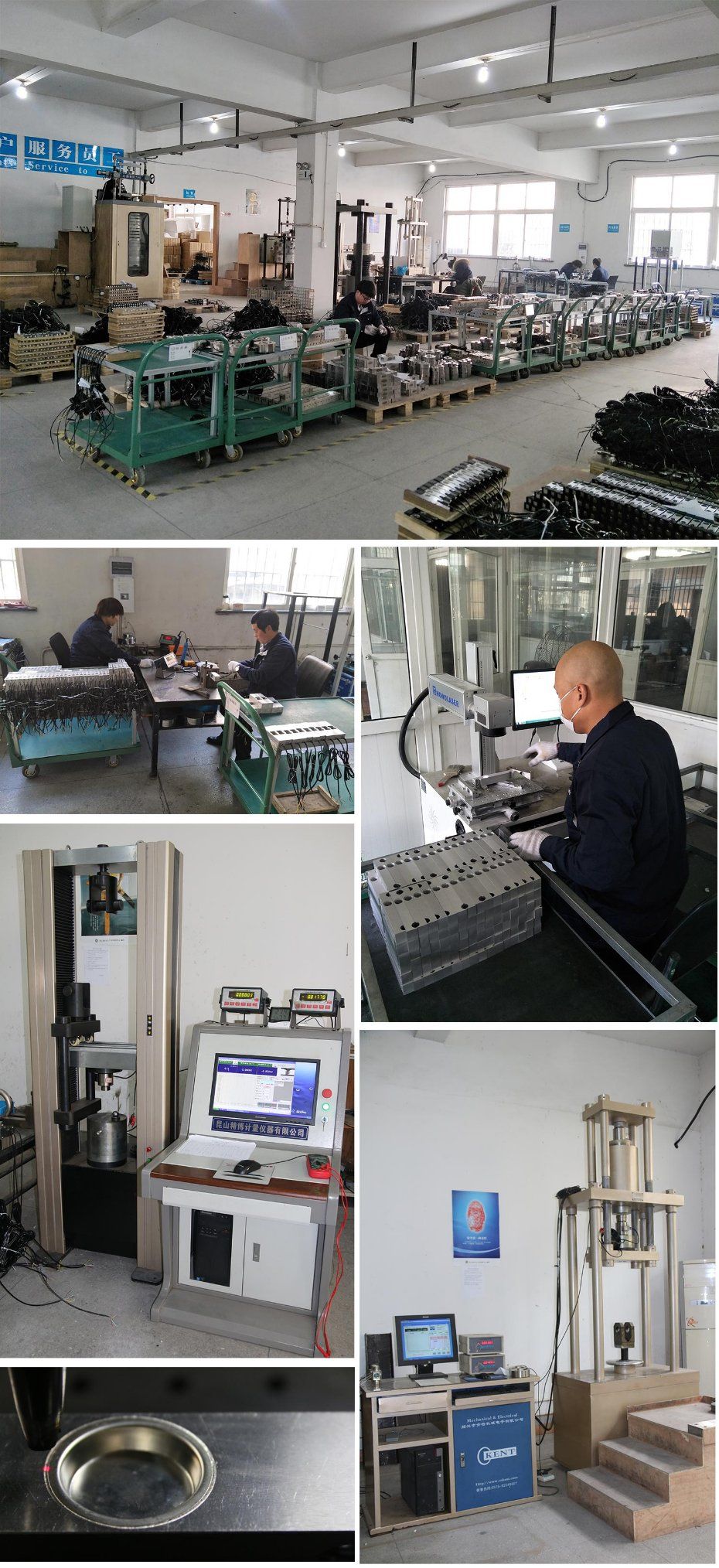

Company show

Prod Model:	LHX-4
Sensitivity:	2.00+/-0.05(≥37.5K Is 3.0)
Nonlinearity:	+/-0.02%Fs
Hyteresis:	+/-0.03%Fs
Repeatability:	+/-0.02%Fs
Pattern:	Shear Beam Load Cell
Material:	Alloy or Stainless Steel
IP Rating:	IP67 or IP68

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
