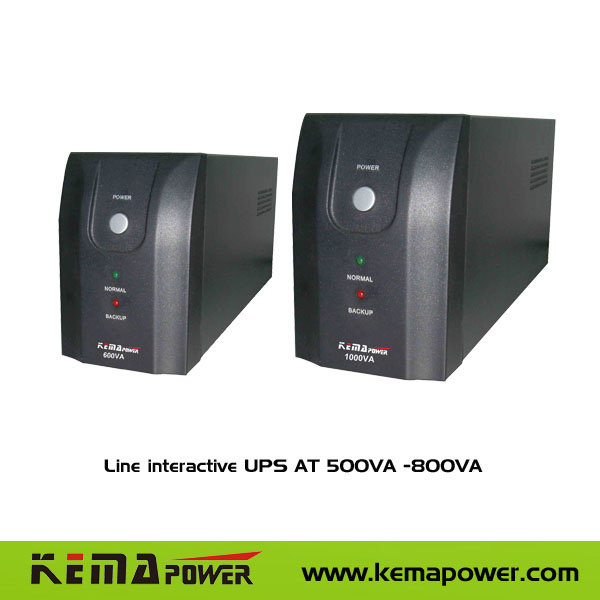

Line Interactive UPS (AT 500W-1500W)1. Wide input voltage window
2. Boost and Buck AVR
3. Protection for short circuit, overload and battery low voltage
4. LED indication and audible alarm function
5. Intelligent battery management
6. AUTO start function is option
7. Automatic battery charging in UPS off mode ( Option)
8. Cold start function
9. RJ11/RJ45 is option
10. dB9 is option
Capacity:* AT500/500VA/300W
* AT650/650VA/390W
* AT800/800VA/480W
* AT1000(1kVA/600W)
* AT1200(1.2kVA/720W)
* AT1500(1.5kVA/900W)

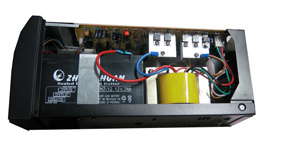

Product Show:
Technical Specifications | ITEM | MODEL | AT 500 | AT 650 | AT 800 | AT 1000 | AT 1200 | AT 1500 |
| Capacity | Output power | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage range | 165~275Vac±5V (140--280v is option ) or 88 - 139Vac |
| Frequency range | 50 or 60 ± 2.5Hz |
| Output | Voltage (battery mode) | 220V or 110V ± 10% |
| Frequency (battery mode) | 50 or ± 6Hz |
|
| Transfer time | <10Ms |
| Waveform | Modified sine wave (battery mode) |
| Battery | Type | Sealed lead acid, maintenance free |
| DC voltage | 12VDC |
| Battery number | 1*12V/7AH | 1*12V/9AH | 2*12V/7AH | 2*12V/7AH | 2*7.2AH |
| Low battery voltage protection | 9.5V or 10V. |
|
| Standby time | Full load >3min,half load >8min |
| Recharge | After fully discharged, charge 8 hours to 90% capacity |
| Protecting | Output overload | Fuse & current limited when overloaded |
| Battery low voltage | Automatically lock out the machine so as to protect the Battery from over discharging |
| Short circuit | Fuse & current limited |
| Restart | Auto restart when AC recovery. |
| Alarm | Battery back-up | Sounding every 4 seconds |
| Battery low | Sounding every 1 second |
| Overload | Shutdown at once |
| Indicator | LED | LED indicator for line on, battery back-up, UPS cut-off |
| Package size | L*W*H(mm) 2PCS | 590*315*240 | 385*315*235 | 400*315*335 | 480*405*290 | 480*405*290 | 480*405*290 |
| Package weight | Kg, 2PCS | 9 | 11 | 13.4 | 19.6 | 19.6 | 19.6 |
