Liquid Level Transmitter

Name: Liquid Level Transmitter
Brand: all-electronics-online.com
SKU: 680615142
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Liquid level gauge

1, Generation:

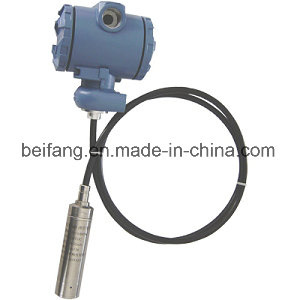

XY-A type throw-in static press liquid level gauge are all adopt importing military transducer as sensor units. Reasonable industrial structure is to make stainless and compact packing. Enlarge wire circuit and deal with laser compensation to make sure the date reliable. Electric connecting cable adopts military using anticorrosion air guide cable which connect Backpressure cavity with air. It is suitable to various pot-packed liquid level measures of industrial fields.
Transmit the measured pressure to 4~20mA standard current signal and group with meter realizing remote control.
It is widely used in lines of petroleum, chemical, textile, metallurgy, water conservancy, environmental protection, and beer and ship oil tank.

2, Product characteristics:
The fluid to be measured is widely: Any liquid and paste that is compatible to membrane can be measured.
Long life service: Owing to the material is stainless and with reasonable sealing method and special cable, so the normal service life is longer.
High accuracy and good static feature: Transducer has actualized temperature compensation, and due to the temperature compensation, it removed the effect of temperature elegant.
Easy to install: It only needs to throw the probe point into fluid to be measured, and connect with digital display instrument. It can apply to little spaces.
Upgrade features: Electric source connection no polarity, have design of outside working lightning protection.

Prod Model:	UL-2088
Measure Ranges:	0~210m
Accuracy Class:	±0.2% ±0.5%
Temperature:	-30~160c
Electric Source Voltage:	24VDC
Kind:	Liquid Level Transmitter
Structure:	All in One, All in One~

Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
