Lora Pressure Sensor
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

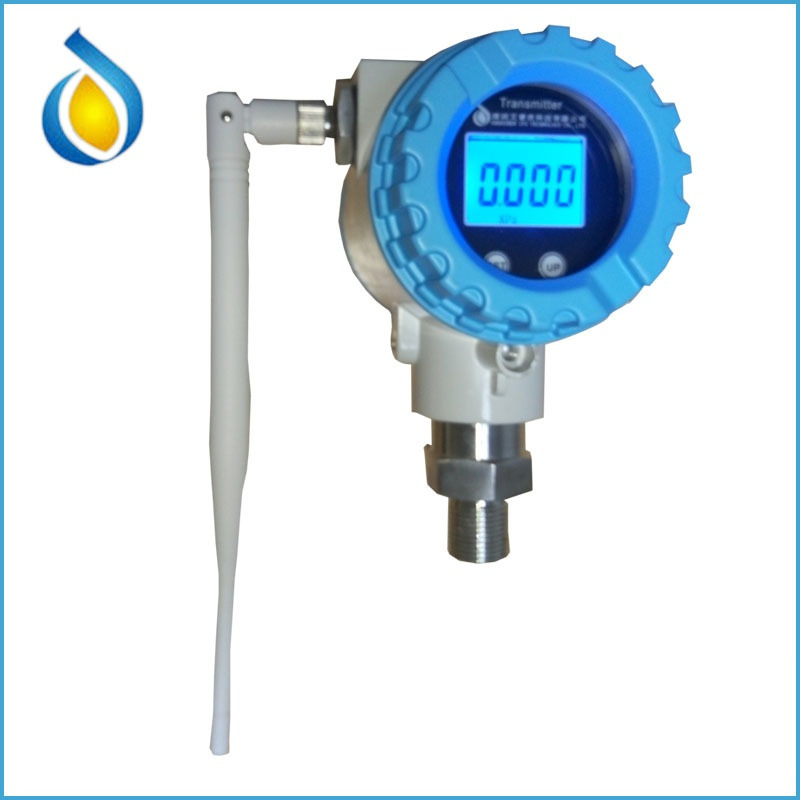

IPD57L LoRaWan Pressure Transmitter
IPD57L pressure transmitter, uses silicon diaphragm sensor or capacitance sensor, with stainless steel housing, using professional IC circuit over a wide temperature range of zero and full scale performance compensation. So it can detect a large number of monitoring points in the wide region real-time data of the network systems, such as the liquid tank testing, storage tanks and oil and water pressure monitor, other industrial field automation control.
With LoRaWAN® module, it transmits the pressure via gateway to networks server and application server. User can monitor the status remotely. It is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia). As it is with algorithm of low power consumption, the internal battery can work for more than 1 years for one charge (With different parameter, 3 years lifetime is realized).
- More than 3 years battery life
- -141dBm sensitivity
3) 10,000m emission distance in the view area4) Through the gateway, it can upload the data into cloud5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field | Power Supply | Internal Battery, 2200mAh @ 7.4V Lithium |
| pressure medium | gas or liquid compatible to wetted stainless steel |
| pressure ranges | -1...0~0.01bar...1000bar |
| pressure type | gauge(G),absolute(A),sealed gauge(S) |
| wireless | LoRaWAN® CN470/EU868/US915/AS923Mhz, 10km in view sight |
| accuracy | 0.5%FS |
| long term stability | <0.1%FS/year |
| Relay output(2 relays) | 220V/3A |
| indicator | 4 digits LCD display |
| compensation temperature range | -20~+85°c |
| working temperature range | -40~+125°c |
| temperature coefficient of zero | 0.2%FS/10°c |
| temperature coefficient of span | 0.2%FS/10°c |
| insulation resistance | 100MΩ@ 50VDC |
| electrical connection | M20×1.5 female |
| material of wetted part | 1Cr18Ni9Ti |
| material of membrane | 316L |
| material of housing | cast aluminium |
| process connection | M20x1.5,G1/2 or others |
| overload pressure | 150%FS |
| Chip | SX1276 |
| Spreading Factor | 6-12 |
| Bandwidth | 7.8-500KHZ |
| Bitrate | 0.018-37.5kbps |
| Sensitivity | -141dBm |
| Frequency Range | 137 - 1020 MHz |
| Emission Power | 17±1 dBm |
| Sleep Current | 1.45uA |
| Stand_By Current | 1.8mA |
| Receiver Current | 12.15mA |
| Emission Current | 93mA |
| Max.DATA Rate | 300kbps |
| Certification | FCC&CE,IC,TELEC |
| Frequency | SF | SNR | Sensitivity |
| 433MHZ | 7 | -7 | -125 |
| 10 | -15 | -134 |
| 12 | -20 | -141 |
| 470MHZ | 7 | -7 | -126 |
| 10 | -15 | -135 |
| 12 | -20 | -141 |
| Frequency | | Countries/Regions |
| EU868 | | |
| | OK | Australia |
| OK | |
| OK | Brunei |
| OK | Cambodia |
| OK | Hong Kong |
| OK | Indonesia |
| OK | Japan |
| OK | Laos |
| OK | Singapore |
| OK | Taiwan |
| OK | Thailand |
| OK | Vietnam |
| CN470 | OK | China |
| US915 | OK | USA |
| KR920 | To do | Korea |
| Item | Name | Function |
| System Configuration | Core | ARM Cortex-A53 |
| Basic frequency | 1.2GHZ |
| RAM | 1Gbytes |
| Flash | 4Gbytes eMMC |
| Communication Mode | 10M/100M Internet Interface | |
| GPRS/3G/4G Wireless Communication | |
| Wireless Communication | Lora |
| Electric Performance | Power Supply | PoE +48V input
IEEE 802.3 af/at |
| Average Consumption | 5W |
| Peak Power | 15W |
| Lora output power | Type: 14dBm@868MHZ
17dBm@470MHZ
Max: 27dBm |
| Lora Receive Sensitivity | -141dBm@SF12,BW=125KHZ |
| Inner sensor | Temperature Sensor | Temperature Sensor |
| User interface(Outer) | 4G Antenna Interface | 4G Connect to Server |
| LoraWan Antenna Interface | LoraWan Connect to Sensor |
| GPS Antenna Interface | Connect to the outer GPS module |
| PoE Interface | 10M/100M Ethernet cable connect to Server |
| User interface(Inner) | Micro Sim Card | |
| USB | USB boot, Burning or update |
| Serial Com | Online debug |
| LED100 | System Running Indicator |
| LED200 | FDX-LED Mode indicator |
| LED201 | LNKA_LED Connection status indicator |
| LED202 | SPD_LED data rate indicator |
| LED203 | 4G mode indicator |
| Mechanical dimension and weight | dimension | 145x95x40mm |
| Weight | 715g |
| Installation | Wall mount or Holding pole |
| Working Temperature | Working Temperature | -40~75ºC |
| Storage Temperature | -40~85ºC |
1, Pressure sensor2, Battery or Adapter3, LoraWan GateWay4, PC software of Mobile phone App | IPD57L | IPD57L Lora Pressure Transmitter |
| | | M | M20X1.5 |
| | | N | 1/4-18NPT |
| | | O | M12X1.5 |
| | | P | M10X1.0 |
| | | Q | 1/8NPT |
| | | R | G1/4 |
| | | Z | According the customer request |
| | | | | xxxK | 0~xxx KPa | |
| | | | | xxxM | 0~xxx MPa | |
| | | | | xxxB | 0~xxx Bar | |
| | | | | xxxP | 0~xxx Psi | |
| | | | | | G | Gauge | |
| | | | | | S | Seal | |
| | | | | | A | Absolute | |
| | | | | | | A | Outer Adapter Supply |
| | | | | | | B | Inner Battery Supply |
| | | | | | | | Y | Accessories |
| | | | | | | | N | No |
| IPD57L | | M | --- | 1600K | G | A | Y |
