Wireless Temperature Sensor
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description

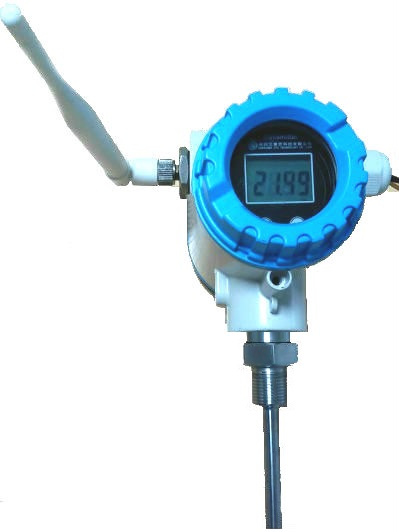

ITD50W Long Range Wireless Temperature Transmitter
ITD50W Wireless temperature transmitter uses Pt100 thermal resistor as sensing element. The thermal resistor transforms the measured temperature into electrical signalis, compiance with MODBUS RS485 protocol. It can realize the 255 units to be one wireless net communication,.
It is featured with good performance and stability. It is sealed with epoxy resin, this construction makes it have good ability on anti-shock and withstand high temperature.It also have high mechanical strength , suitable for the application in bad working condition.
It has widely been used for temperature meansurement in such industries as petroleum industry, chemical industry, spinning and weaving, mine, medicine, electric power, environmental protection, municipal administration, food industry as well as scientific research and so on.
1) LCD display, wireless signal output2) High-precision real-time performance, high sampling frequency, low frenquency, low power consumption3) relay output, 220VAC/3A;4) 433MHZ wireless communication,emission range is 6-10KM5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field | Temperature Part Parameters |
| Project | Parameter |
| Standard Range | Testing range(°C):-50~0;-50~50;0~50;0~80;0~100;0~120;0~150;0~200; |
| Installation Mode: Inserting |
| Depth of Inserting (mm): 50mm (typically, beyond the screw threads); custom-made available. |
| Probe Size(mm):Φ6,Φ8 |
| temperature measurement element | PT100 or other thermal resistors |
| measured medium | solid, gas or liquid compatible to stainless steel |
| measuring range | -200~+500°c |
| insert depth | can be made upon customer's request |
| output signal | Wireless transmitter |
| accuracy | 0.5%FS (standard), 1%FS |
| circuit working temperature range | -30~+80°c |
| storage temperature range | -40~+125°c |
| temperature | 120% of measured range |
| long term stability | <0.15%FS/year |
| response time | <1ms |
| process connection | M12 ,M20x1.5 or others |
| material of housing | stainless steel |
| Frenquency Range | 119~1050MHz |
| Receiver Sensitivity | -126dBm |
| Emission Power | 31dBm |
| Off Current | 30nA |
| Stand_By Current | 50 nA |
| Receiver Current | 10.0mA |
| Emission Current | 450mA |
| DATA Rate | 0.123~1M |
| Emission Range | 10000 Meter
In Condition(434M 2.4K) |
1, Temperature sensor2, Battery or Adapter3, Receiver4, PC software of Mobile phone App | ITD50W | ITD50W Wireless Pressure Transmitter Compliance with MODBUS |
| | | M | M20X1.5 |
| | | N | 1/4-18NPT |
| | | O | M12X1.5 |
| | | P | M10X1.0 |
| | | Q | 1/8NPT |
| | | R | G1/4 |
| | | Z | According the customer request |
| | | | | xxxAx | (Depth of Inserting)A( Probe Diameter) |
| | | | | | FxxxTxxx | xxx ºC to xxx ºC |
| | | | | | | A | Outer Adapter Supply |
| | | | | | | B | Inner Battery Supply |
| | | | | | | | Y | Accessories |
| | | | | | | | N | No Accessories |
| ITD50W | 1 | M | --- | 120A6 | F000T180 | A | Y |
