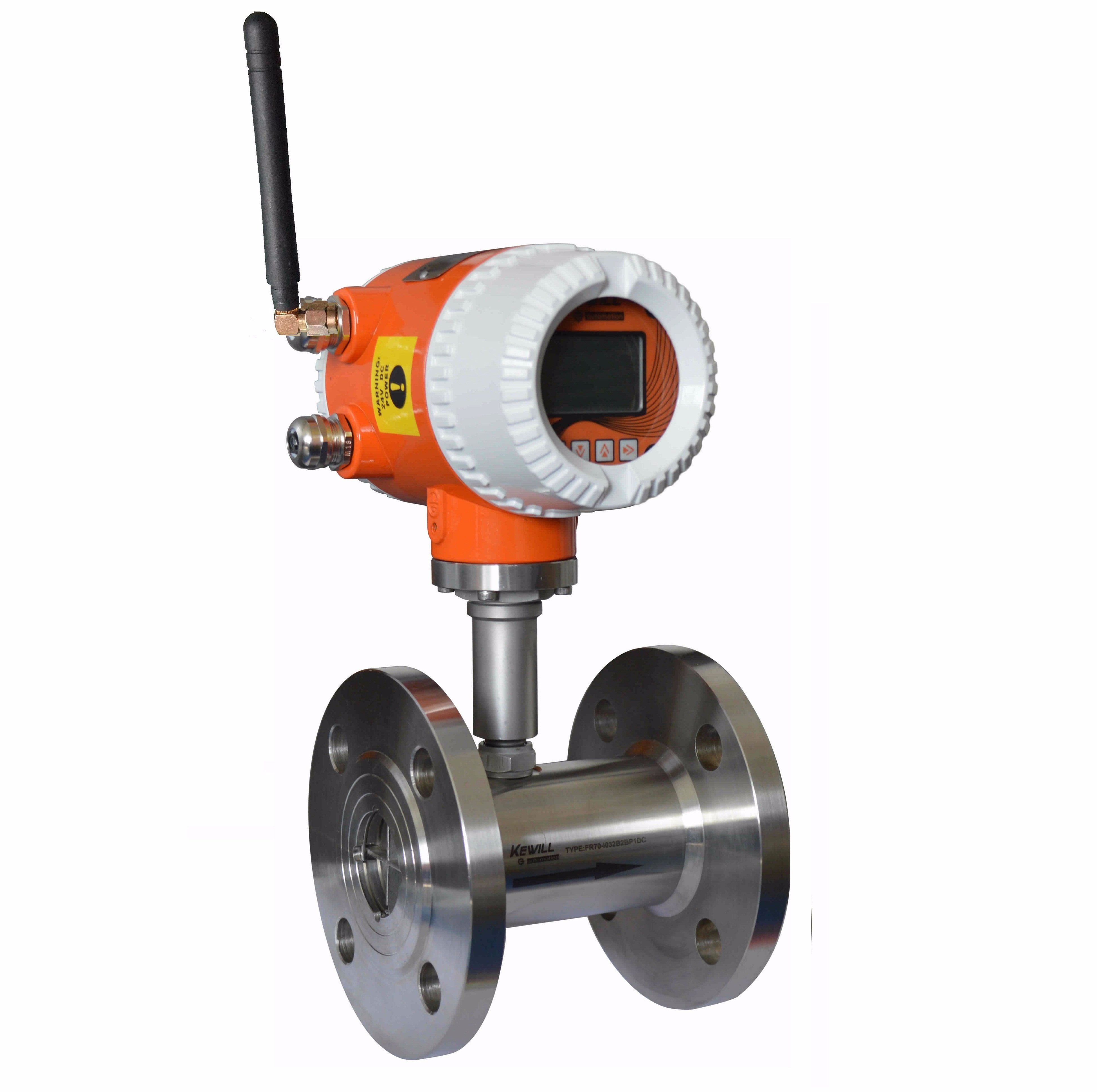

Wireless Flow Sensor
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description
IFD50W Long Range Electromagnetic Flow Meter IFD50W series electromagnetic flowmeters is the advanced engineering designed magnetic flow meter; It has a dual cavity housing isolating the electronics from the environment. It uses the low frequency excitation, which provides noise free output. It is compliance with MODBUS RS485 protocol, it can realize the 2500 units to be one wireless net communication. It has strong power and can reach 10,000 meters. 1)No Moving Parts, mostly No Pressure Loss;2)Corrosion protection, abrasion resistant;3)High accuracy, Stable performance;4) LCD display, wireless signal output5) 433MHZ wireless communication,emission range is 6-10KMPower Supply | 24 VDC |
Power Consumption | 10W |
Accuracy | ± 0.5% accuracy of rate from 0.3-10 m/s ± 1.0% accuracy of rate from 0.1-0.3 m/s |
Repeatability | 0.2% |
Minimum Fluid Conductivity | 5.0 micromhos/cm |
Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
Zero-point Stability | Automatic correction |
Ambient Temperature | -4 to 140° F (-20 to 60° C) |
Electrode Materials | SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
Liner Material | PTFE, FEP, Hard Rubber |
Fluid Temperature | PTFE: 120°C Standard (Customized: 180°C) Rubber: 60°C |
Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
Coil Power | Pulsed DC |
Pipe Spool Material | SS316 |
Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
Flange | Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
Frequency Range | 119~1050MHz |
Receiver Sensitivity | -126dBm |
Emission Power | 31dBm |
Off Current | 30nA |
Standby Current | 50 nA |
Receiver Current | 10.0mA |
Emission Current | 450mA |
DATA Rate | 0.123~1M |
Emission Range | 10000 Meter In Condition(434M 2.4K) |
1, Electromagnetic sensor2, Battery or Adapter3, Receiver4, PC software of Mobile phone App Knowledge |
How to choose the Lining materials | |
Lining material | Main Performance | Applications | |
Teflon | 1.The most steady material in plastics which is resistibal to boiling hydrochloric acid,vitriolandqua fortis as well as strong alkali and organic impregnates. 2.Not be perfect in abrasion resistance. | Strong corrosive mediums such as strong acid and alkali | |
PFA | Having the same abrasion resistance with PTFE. Having strong ability of load pressure resistance. | Applicable in state of load pressure | |
F46 | 1.Have the same abrasion resistance with PTFE. 2.Resistable for low abrasion. 3.Having strong resistance to load pressure. | 1.The same as PTFE.2.Applicable in mediums of low abrasion. | |
Neoprene | 1.Be of good elasticity,retractility and abrasion resistance. 2.Be resistant to low aicd,alkali and salt but not for oxidation mediums. | Water,sewage and slurry,mineral serosity of low abrasion. | |
Polyurethane | 1.Be of good abrasion resistibility. 2.Not be perfect in acid/alkali resisitance. 3.Can't be used for water mixed with organic impregnants. | Applicable in mineral serosity,slurry and coal slurry of high abrasion. | |
How to choose the electrode materials |
Electrode material | Applications |
Stainless steel SUS316 | Applicable in water,sewage and corrosive mediums.Widely used in industries of petrol, chemistry,carbamide,etc |
Stainless steel covered with tungsten carbide | Applicable in mediums of no corrosive and low abrasion. |
Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont. Also resistable against vitriol,phosphate,hydrofluoricacid,organic acid etc which are oxidable acid,alkali and non-oxidable salt. |
Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such as Fe+++,Cu++and sea water |
Titanium | Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable acid(including fuming nitric acid),organic acid,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid)corrosion.But if acid contains antioxidant(such as Fe+++,Cu++)is greatly reduce corrosion. |
Da | In addition to hydrofluoric acid, fuming sulfuric acid, alkali remaining outside chemicals, including boiling hydrochloric acid |
Platinum-iridium | Almost be applicable in all chemical mediums except for aqua fortis,ammonium salt. |
IFD50W | IPD50W Wireless Long Range Electromagnetic Flow Meter |
| 1 | 433MHZ |
| 2 | ZigBee |
| 3 | GPRS |
| 4 | SMS |
| 5 | GPRS+SMS |
| 6 | Wi-Fi |
| 7 | Others |
| | DNxxx | Pipe Diameter xxx millimeter |
| | | | A | Teflon Lining materials |
| | | | B | PFA Lining materials |
| | | | C | F46 Lining materials |
| | | | D | Neoprene Lining materials |
| | | | | Polyurethane Lining materials |
| | | | | 1 | Stainless steel SUS316 Electrode Material |
| | | | | 2 | Stainless steel covered with tungsten carbide Electrode Material covered with tungsten carbide |
| | | | | 3 | Hastelloy B(HB) Electrode Material |
| | | | | 4 | Hastelloy C(HC) Electrode Material |
| | | | | 5 | Titanium Electrode Material |
| | | | | 6 | Da Electrode Material |
| | | | | 7 | Platinum-iridium Electrode Material |
| | | | | | A | Outer Adapter Supply |
| | | | | | B | Inner Battery Supply |
| | | | | | | Y | Accessories |
| | | | | | | N | No |
IFD50W | 1 | DN100 | --- | A | 1 | A | Y |
| | | | | | | | | | | |
