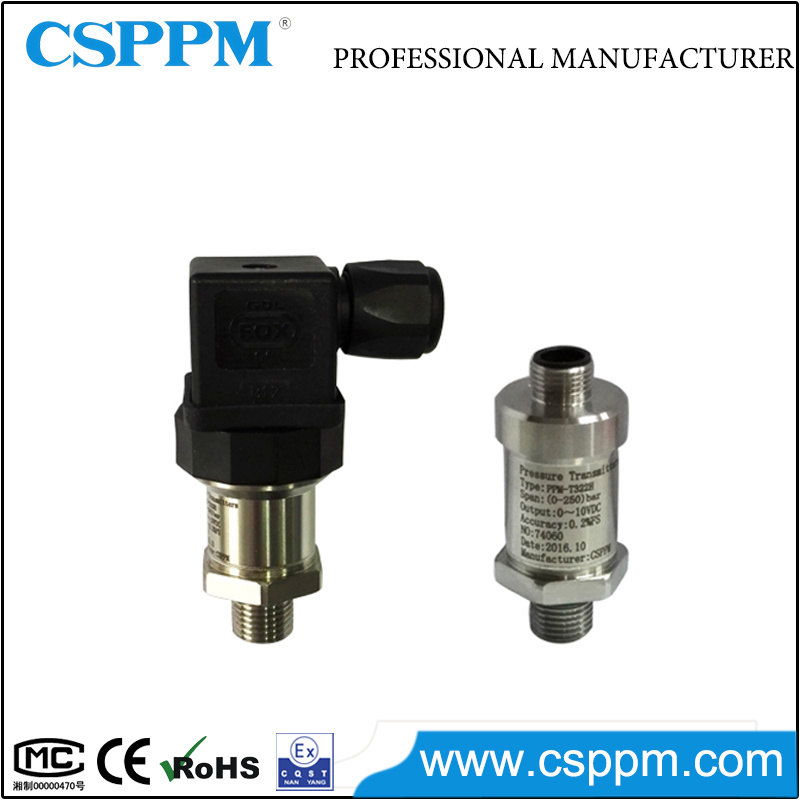

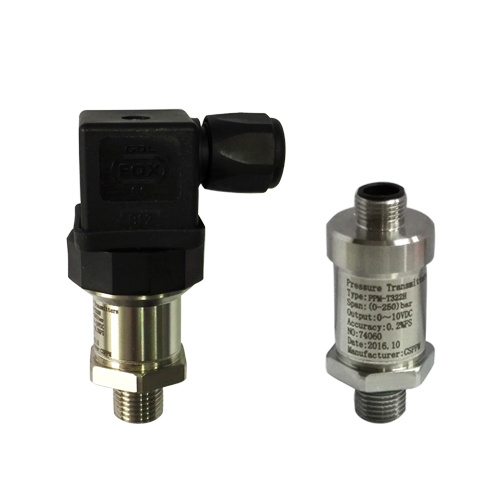

Low Cost Stainless Steel Pressure Transmitter Ppm-T222h

Name: Low Cost Stainless Steel Pressure Transmitter Ppm-T222h
Brand: all-electronics-online.com
SKU: 835278125
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 35-45/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Description
The model PPM-T222H pressure transmitter is the ideal solution for general industrial application. The model PPM-T222H offers continuous measuring ranges between 0…160 bar to 0…1000 bar in all common engineering units. These measuring ranges can be combined with several standard industry output signal, such as 4…20 mA, 0…10 V, 0…5V and many others.

Features
1. Cost-effective
2. Long working life
3. OEM accepted
4. Strong anti-interference ability
5. Overvoltage protection

Applications
1. Hydraulic system
2. Engineering machinery
3. Pneumatic control system
4. Compressor, engine, pump
5. Other industrial automatic control system

Specification

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S)
Pressure range	0~160bar,250bar,400bar,600bar,700bar,1000bar
Power supply	9-32VDC
Output signal	4~20mA ,0~10VDC,0~5VDC
Nonlinearity	≤0.2
Non-repeatability	≤0.2% FS
Accuracy	0.5%FS
Long-term stability	0.25%FS/year
Medium temp	-40~+85ºC
Operation temp	-40~+85ºC
Zero temp. drift	≤0.03%FS/ºC
FS temp. drift	≤0.03%FS/ºC
Response time	≤1ms(10%~90%)
Insulation resistance	≥1000 MΩ/100V
Overpressure	150%FS (1.5 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	5~1000Hz
Shock resistance	50g, 20ms
Process connections	G1/4, M14×1.5, or other process connections on request
Materials	Wetted parts: 17-4PH, non-wetted parts: stainless steel 304
Ingress protection	IP67
Electrical connections	Circular connector M12 x 1,L-connector DIN43650

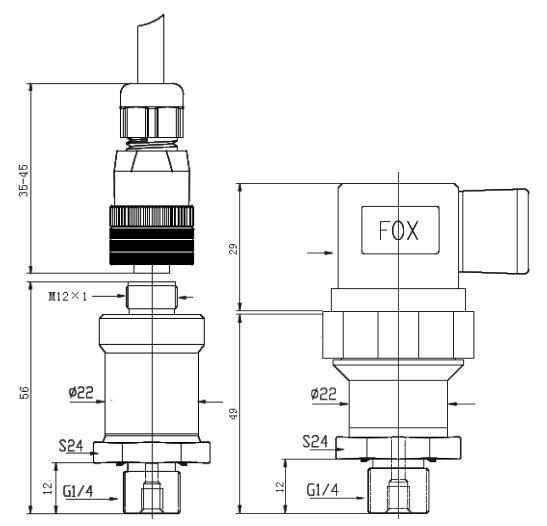

Dimensions in mm

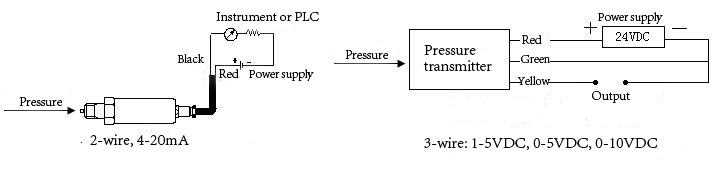

Wiring diagram

Prod Model:	PPM-T222H
Pressure Range:	100MP
Certification:	CMC
