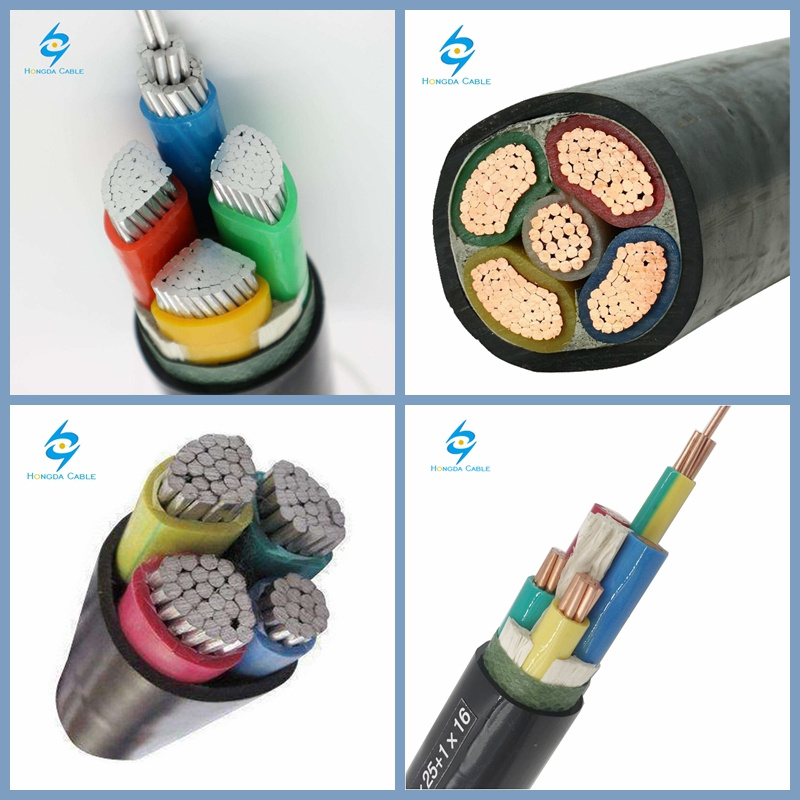

Low Voltage XLPE/PVC Insulated Aluminum Underground Power Cable
APPLICATIONS OVERVIEW
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Category: Power Cable.
Tags: NYY, NAYY, AYY, A2XY, Power, PVC, XLPE.
Description
XLPE/PVC Insulated Aluminum Underground Power Cable
Aluminum Underground Power Cable APPLICATION
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Aluminum Underground Power Cable CONSTRUCTION:
- Single or multiple Aluminum / copper
- Solid strand to VDE-0295 Class-1 - For #4 AWG and up, VDE-0295 Class-2 strand
- PVC core insulation - Color code to VDE-0293-308 with ground - Above 5 cores, color is black w/ white numbers
- PVC (DMV5) outer jacket - Black (RAL 9005)
Aluminum Underground Power Cable TECHNICALS:
- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temp: -5º C to +50º C
- Static temp: -40º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: > 100 MΩ x km
| Conductor | Inductance | Current - Carrying Capacity at 30° C * | Short circuit current at 1 sec |
| Nom. Cross Section Area | DC Resistance at 20°C | AC Resistance at 70°C |
| in air | in ground |
| (mm²) | Max. (Ω/km) | Max. (Ω/km) | (mH/km) | Max. (A) | Max. (A) | Max. (kA) |
| 10 | 3.08 | 3.701 | 0.269 | 53 | 59 | 0.76 |
| 16 | 1.91 | 2.295 | 0.253 | 71 | 77 | 1.22 |
| 25 | 1.20 | 1.442 | 0.257 | 93 | 99 | 1.90 |
| 35 | 0.868 | 1.043 | 0.247 | 115 | 119 | 2.66 |
| 50 | 0.641 | 0.770 | 0.247 | 134 | 135 | 3.80 |
| 70 | 0.443 | 0.533 | 0.238 | 167 | 165 | 5.32 |
| 95 | 0.320 | 0.385 | 0.238 | 207 | 198 | 7.22 |
| 120 | 0.253 | 0.305 | 0.233 | 240 | 225 | 9.12 |
| 150 | 0.206 | 0.248 | 0.235 | 277 | 254 | 11.40 |
| 185 | 0.164 | 0.198 | 0.233 | 316 | 286 | 14.06 |
| 240 | 0.125 | 0.152 | 0.232 | 377 | 332 | 18.24 |
| 300 | 0.100 | 0.122 | 0.231 | 433 | 376 | 22.80 |
A2XY, 2XY 0.6/1KV POWER CABLE Specification:
Nominal Cross Sectional Area
(Sq. mm) | Nominal Thickness of Insulation
(mm) | Nominal Thicknessof Outer Sheath
(mm) | Approx.Overall Diameter(mm) | Approx. Net Wt. of Cable (kg/km) |
| AL Cable A2XY | CU Cable 2XY |
| 1x16 | 0.7 | 1.8 | 11 | 125 | 225 |
| 1x25 | 0.9 | 1.8 | 12 | 170 | 330 |
| 1x35 | 0.9 | 1.8 | 13 | 205 | 425 |
| 1x50 | 1.0 | 1.8 | 15 | 250 | 550 |
| 1x70 | 1.1 | 1.8 | 16 | 335 | 750 |
| 1x95 | 1.1 | 1.8 | 18 | 425 | 1000 |
| 1x120 | 1.2 | 1.8 | 20 | 515 | 1250 |
| 1x150 | 1.4 | 2.0 | 22 | 615 | 1520 |
| 1x185 | 1.6 | 2.0 | 24 | 770 | 1880 |
| 1x240 | 1.7 | 2.0 | 27 | 965 | 2415 |
| 1x300 | 1.8 | 2.0 | 30 | 1160 | 2980 |
| 1x400 | 2.0 | 2.2 | 33 | 1480 | 3800 |
| 1x500 | 2.2 | 2.2 | 36 | 1840 | 4815 |
| 1x630 | 2.4 | 2.2 | 40 | 2350 | 6150 |
| 1x800 | 2.6 | 2.4 | 47 | 2830 | 7840 |
| 1x1000 | 2.8 | 2.6 | 51 | 3670 | 9800 |
Nominal Cross Sectional Area
(Sq. mm) | Nominal Thickness of Insulation
(mm) | Minimum Thickness of Inner Sheath(mm) | Nominal Thickness of Outer Sheath
(mm) | Approx.Overall Diameter(mm) | Approx. Net Wt. of Cable (kg/km) |
| AL Cable A2XY | CU Cable 2XY |
| 3×25+16 | 0.9/0.7 | 0.3 | 2.0 | 22 | 575 | 1125 |
| 3×35+16 | 0.9/0.7 | 0.3 | 2.0 | 24 | 685 | 1425 |
| 3×50+25 | 1.0/0.9 | 0.3 | 2.0 | 27 | 880 | 1980 |
| 3×70+35 | 1.1/0.9 | 0.4 | 2.2 | 31 | 1185 | 2680 |
| 3×95+50 | 1.1/1.0 | 0.4 | 2.2 | 34 | 1480 | 3580 |
| 3×120+70 | 1.2/1.1 | 0.4 | 2.2 | 38 | 1880 | 4480 |
| 3×150+70 | 1.4/1.1 | 0.5 | 2.4 | 43 | 2275 | 5485 |
| 3×185+95 | 1.6/1.1 | 0.5 | 2.6 | 46 | 2770 | 6785 |
| 3×240+120 | 1.7/1.2 | 0.6 | 2.8 | 52 | 3580 | 8675 |
| 3×300+150 | 1.8/1.4 | 0.6 | 3.0 | 57 | 4380 | 10780 |
| 3×400+185 | 2.0/1.6 | 0.7 | 3.4 | 65 | 5580 | 13980 |
| 3×500+240 | 2.2/1.7 | 0.7 | 3.6 | 73 | 6980 | 17425 |
| 3×630+300 | 2.4/1.8 | 0.7 | 4.0 | 82 | 8885 | 21970 |
Nominal Cross Sectional Area
(Sq. mm) | Nominal Thickness of Insulation
(mm) | Minimum Thickness of Inner Sheath(mm) | Nominal Thicknessof Outer Sheath
(mm) | Approx.Overall Diameter(mm) | Approx. Net Wt. of Cable (kg/km) |
| AL Cable A2XY | CU Cable 2XY |
| 4x4 | 0.7 | 0.3 | 1.8 | 16 | 225 | 340 |
| 4x6 | 0.7 | 0.3 | 1.8 | 17 | 315 | 480 |
| 4x10 | 0.7 | 0.3 | 1.8 | 19 | 370 | 640 |
| 4x16 | 0.7 | 0.3 | 1.8 | 20 | 440 | 840 |
| 4x25 | 0.9 | 0.3 | 2.0 | 24 | 650 | 1290 |
| 4x35 | 0.9 | 0.3 | 2.0 | 26 | 780 | 1685 |
| 4x50 | 1.0 | 0.3 | 2.0 | 29 | 985 | 2190 |
| 4x70 | 1.1 | 0.4 | 2.2 | 34 | 1380 | 3090 |
| 4x95 | 1.1 | 0.4 | 2.2 | 37 | 1685 | 3980 |
| 4x120 | 1.2 | 0.5 | 2.4 | 41 | 2125 | 5130 |
| 4x150 | 1.4 | 0.5 | 2.6 | 45 | 2630 | 6230 |
| 4x185 | 1.6 | 0.5 | 2.8 | 50 | 3230 | 7830 |
| 4x240 | 1.7 | 0.6 | 3.0 | 56 | 4080 | 9980 |
| 4x300 | 1.8 | 0.7 | 3.2 | 63 | 5030 | 12030 |
| 4x400 | 2.0 | 0.7 | 3.6 | 70 | 6385 | 15980 |
| 4x500 | 2.2 | 0.7 | 3.8 | 79 | 7980 | 19985 |
| 4x630 | 2.4 | 0.7 | 4.0 | 88 | 9985 | 25985 |
PackingA: Reel of 1500 m.
B: Reel of 1000 m.
C: Reel of 500 m.
D: Multiple Reels of 1000 m.
E - Length to the client's requirement.Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!Shipping Port:Shanghai, Qingdao, Tianjin or other ports as per your requirements.Sea freight:FOB/C&F/CIF/DAP quotation are all available.
