Product Description:
We produce all kinds of low voltage products including contactors,thermal overload relay,Circuit Breaker,mangnetic starter and so on.LR2-D series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1 - 93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation and can be plugged in LC1-D series AC contactor.At present, it is the most advanced thermal relay in the world.
Rated insulation voltage 660V.
Rated working current 25,36,93A separately.
The regulator seal of rated setting current and setting.

Type	Rated Working Curremt of The Thermal Relay		Thermal Component
Type	Rated Working Curremt of The Thermal Relay		Rated Current(A)	Rated or Scale of Rated Current(A)

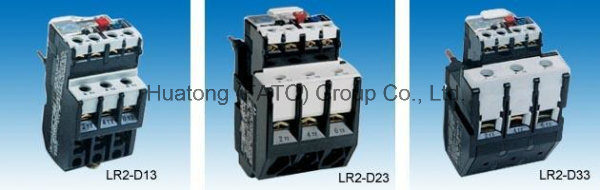

CFR2-D13	25	LR2-D1301	0.16	0.1-0.16
		LR2-D1302	0.25	0.16-0.25
		LR2-D1303	0.40	0.25-0.40
		LR2-D1304	0.63	0.40-0.63
		LR2-D1305	1	0.63-1
		LR2-D1306	1.6	1-1.6
		LR2-D1307	2.5	1.6-2.5
		LR2-D1308	4	2.5-4
		LR2-D1310	6	4-6
		LR2-D1312	8	5.5-8
		LR2-D1314	10	7-10
		LR2-D1316	13	9-13
		LR2-D1321	18	12-18
		LR2-D1322	25	17-25
CFR2-D23	36	LR2-D2353	32	23-32
CFR2-D23	36	LR2-D2355	36	28-36
CFR2-D33	93	LR2-D3353	32	23-32
		LR2-D3355	40	30-40
		LR2-D3357	50	37-50
		LR2-D3359	65	48-65
		LR2-D3361	70	55-70
		LR2-D3363	80	63-80
		LR2-D3365	93	80-93

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Prod Model:	LR2-D
Inside Parts:	Pure Copper
Voltage:	660V
Current:	0.16-93A
Frequency:	50/60Hz
