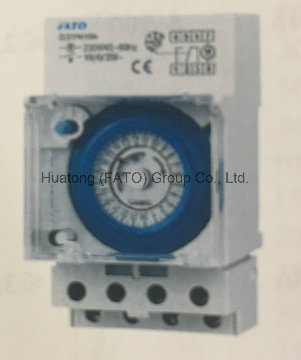

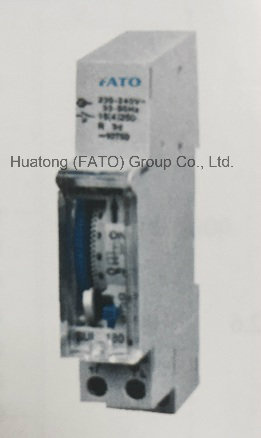

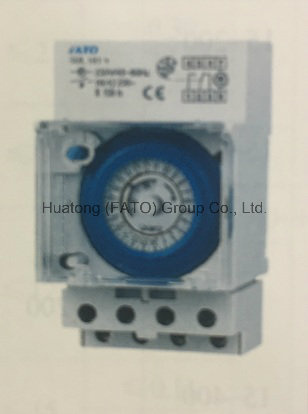

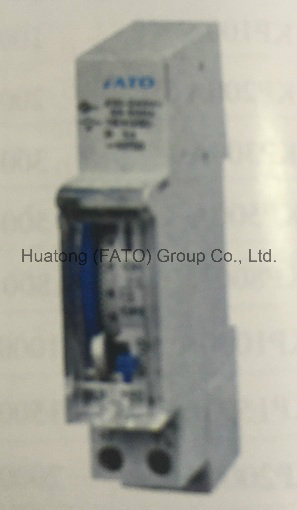

Time Relay (SUL181H)

Name: Time Relay (SUL181H)
Brand: all-electronics-online.com
SKU: 606249764
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Feature:
1) Synchronous motor drive or quartz clock with approx three days power reserve
2) Twenty four h segment switching dial.
3) Programmable every thirtymin.
4) Change over contacts
5) Fine clock setting
6) Switching preselection
7) Permanent On and Off switch
8) Standard time adjustment with the clocks two directional finest function
9) Operation indicator
10) Captive hinged cover, can be sealed
11) Captive terminal screws.
12) Din rail fixing
13) Packaging: Cardboard case

Classification		Timer
Type		SUL181h	SUL161h	SUL180a	SUL160a
Appearance
Contact Capacity		AC220V16A	AC220V16A	AC220V16A	AC220V16A
Full Timing Range		24h/24	24h/24	24h/24	24h/24
Contac Resistance		≤50mΩ	≤50mΩ	≤50mΩ	≤50mΩ
Insulation Resistance		≥100MΩ	≥100MΩ	≥100MΩ	≥100MΩ
Coil Voltage		110,230VAC	110,230VAC	110,230VAC	110,230VAC
Life	Electrical	10⁵times/10⁵	10⁵times/10⁵	10⁵times/10⁵	10⁵times/10⁵
Life	Mechanical	10⁷times/10⁷	10⁷times/10⁷	10⁷times/10⁷	10⁷times/10⁷
Operating Temperature		-40ºC--+55ºC	-40ºC--+55ºC	-40ºC--+55ºC	-40ºC--+55ºC

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Prod Model:	SUL181H
Function:	Reversible Counter
Electrical Life:	100000 Times
Mechanical Life:	10000000 Times
Full Timing Range:	24h
