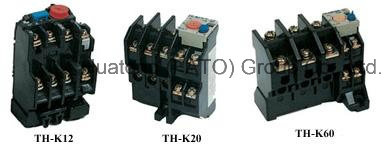

Thermal Relay (Th-K)
| Price: |
Negotiable/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T,D/P |
Application:
The thermal overload relays is suitable for overload protection of AC motor operated on 8-hours duty or uninterrupted duty.The overload protected AC motor with frequency 50Hz, voltage up to 660V, current up to 40A.
Several functions provided by these relays are phase-failure protection, temperature compensation, ON/OFF indication and manual/automatic reset; The relays comply with IEC292-1 standard.
Specifications:| Type | Plug in AC Contact | Rated Currewnt of Thermal Element(A) | Seeting Current Range(A) |
| CTH-K/N12 | S-K/N10,S-K/N11, S-K/N12,S-K/N18 | 0.24,0.35,0.5,0.7,0.9,1.3, 1.7,2.1,2.5,3.6,5,6,9,11 | 0.2-0.28,0.28-0.42,0.4-0.6,0.55-0.85,0.7-1.1,1.1-1.6,1.4-2,1.7-2.1,2-3,2.8-4.4, 4-6,5.2-8,7-11,9-13 |
| CTH-K/N20 | S-K/N20,S-K/N21, S-K/N25,S-K/N35 | 2.1,2.5,3.6,5,6,9,11,
15,19,22,29,35 | 1.7-2.1,2-3,2.8-4.4,4-6,5.2-8,7-11,9-13, 12-18,16-22,18-26,24-34,30-40 |
| CTH-K/N60 | S-K/N50,S-K/N65, S-K/N80,S-K/N95 | 42,54 | 34-50,43-65 |
| Thermal Element Rated Current(A) | Rated Setting Range(A) | Motor rated Cpacity(KW) |
| 220-240V | 380-440V | 500-550V |
| 3 | 2-3-4 | 0.75 | 1.5 | 2.2 |
| 6 | 4-6-8 | 1.5 | 3.7 | 4.5 |
| 12 | 8-12-16 | 3.7 | 7.5 | 9 |
OPeration Characteristics: | Code | Motion Current(set Current Cinles) | Motion Time | Start State | Ambient Temperature |
| AM potes live simultaneously | 1 | 1.05 | >2h | Cold state | +20ºC |
| 2 | 1.2 | <2h | Heat state |
| 3 | 1.5 | <2min | Heat state |
| 4 | 7.2 | 2S-10S | Cold state |
| Only diode live | 1 | Three pole 1.0 | >2h | Cold state | +40ºC |
| 2 | TWo pole 1.25,Single pole 0 | <2h | Heat state |
Why do you choose us?- FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
- FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
- FATO group has more than 2800 staff, more than 18000 M² production area.
- Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..
| Prod Model: |
Th-K |
| Inside Parts: |
Pure Copper |
