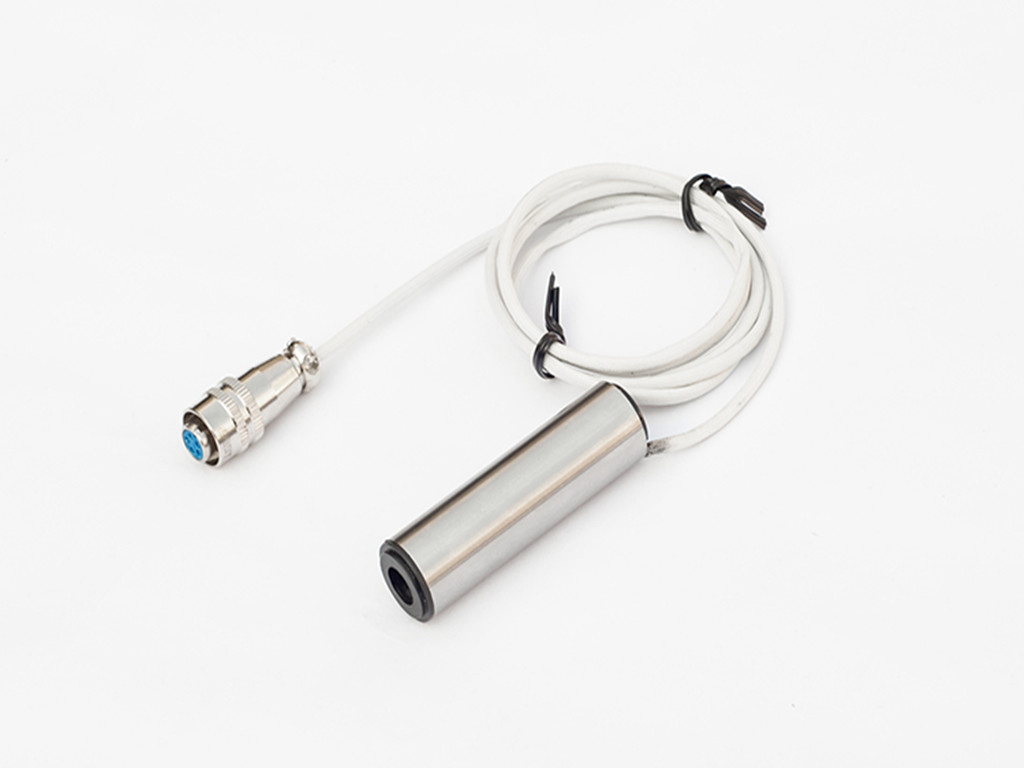

LVDT Linear Displacement Sensor for Large Shaft TIR Measurements

It can be widely used in various industries such as aviation, machinry, construction, textile, railway,
coal, metallurgy plastics, chemical industry and braking, building water supply and other pressure
vibration, object thickness and expansion.

Product	SDVG28 Series Explosion-proof type
Power Supply	9~28V DC
Operating Current	input current ≤12mA(Voltage output type)
Operating Current	input current 4~20mA(current output type)
Measuring range	0-63mm
Output	0~5V (9~28V DC)
	0~10V (15~28V DC)
	4~20mA(15~28V DC)
	RS485(9-12V DC)
Linearity Error	Analog: ±0.25%,±0.5%
Linearity Error	Digital: 0.25%,0.1%
Repeative error	≤0.01% of FS
Resolution	≤0.01um(max),Digital output is 16 bit
Dynamic Feature	default 50Hz(Customizable)
Operating temperature	-25°C ~ +85°C
Temperature coefficient	Null point ≤0.01%/°C
Temperature coefficient	Sensitivity ≤0.025%/°C

LVDT is widely applied in Aerospace, Machinery, Construction, Textile, Railway way,Coal mine, Metallurgy, Plastic, Chemical industry and Academic research,which is used to measure the distance, vibration,thickness, expansion and so on.
The integrated circuit is hermetically sealed in SUS 304 stainless steel sleeve, which can ensure the transducers worksaccurately and reliably in hostile environment such as damp and dust, corrosion, etc.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Prod Model:	SDVG28
Dymatic Characteristics:	Max 10Hz
Power Supply:	DC or AC
Application:	Large Shaft Tir Measurements
Output:	Digital or Anolog
Repetitive Error:	Less 0.01% of Fs
Material:	Aluminum Alloy
