| Prod Model: |
M100 |
| Item Name: |
Low Cost AC Variable Frequency Drive |
| Communication Control: |
RS485 |
| Operation Temperature: |
-10~40 Degree |
| Humidity: |
0-95% Relative Humidity (Without Dew) |
| Vibration: |
Below 0.5g |
| Keyboard Setting Method: |
Press Directly to Set |
| V/F Curve: |
Set V/F Curve at Will |
| Torque Control: |
Torque Increase Is Settable by Max. 10.0%. |
| Other Functions: |
AVR (Auto Voltage Regulation), Deceleration Stop O |
| Overload Protection: |
Electronic Relay Protection Motor Drive |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

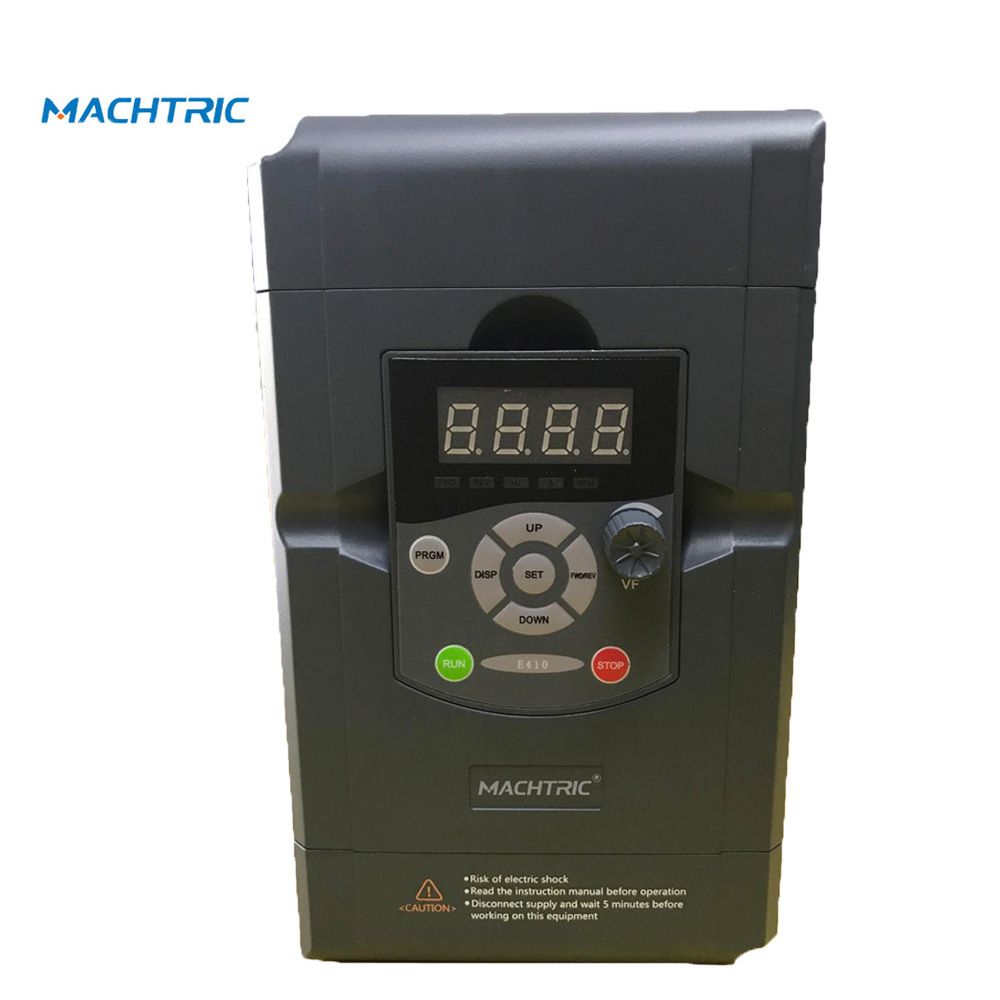

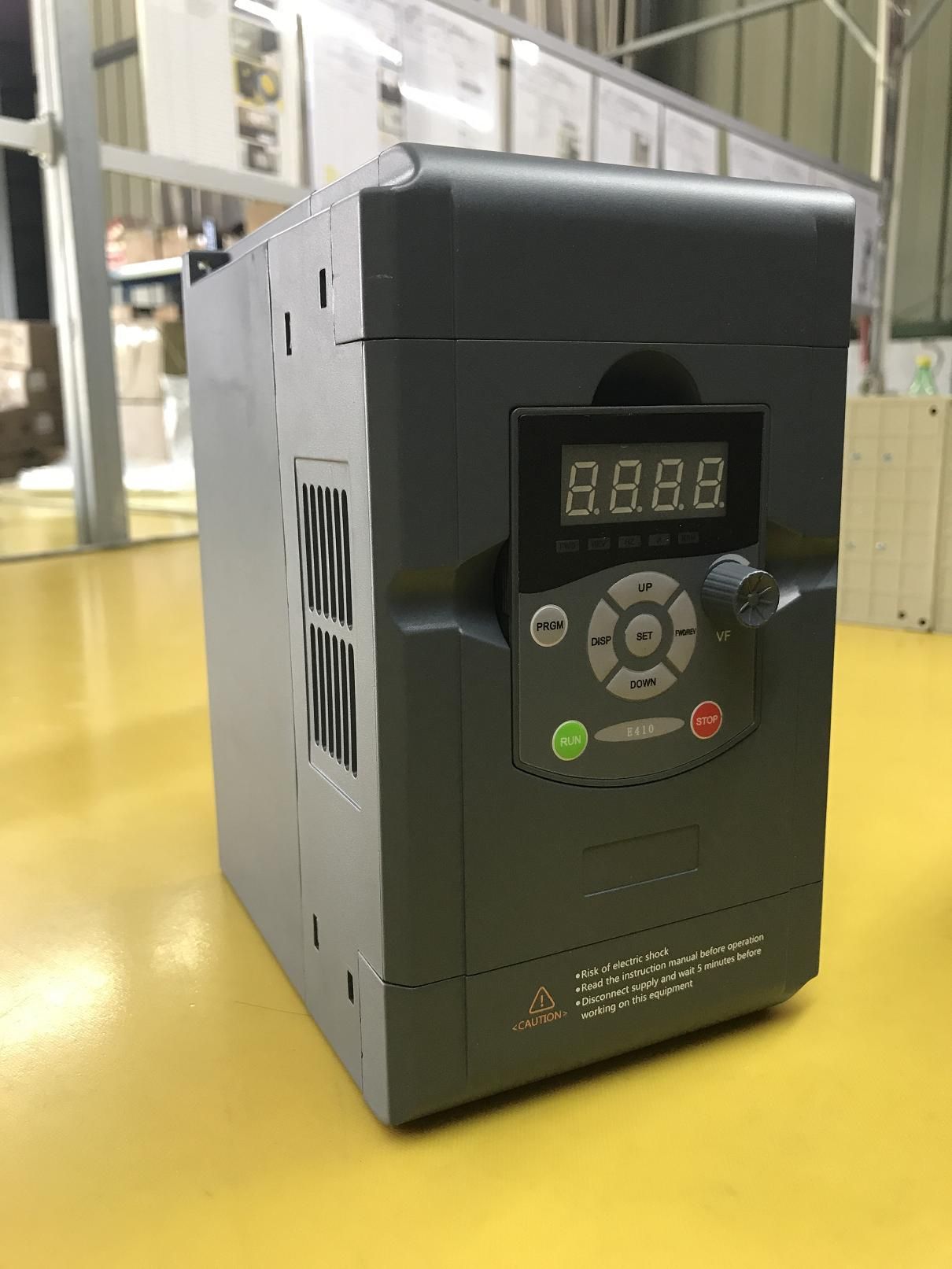

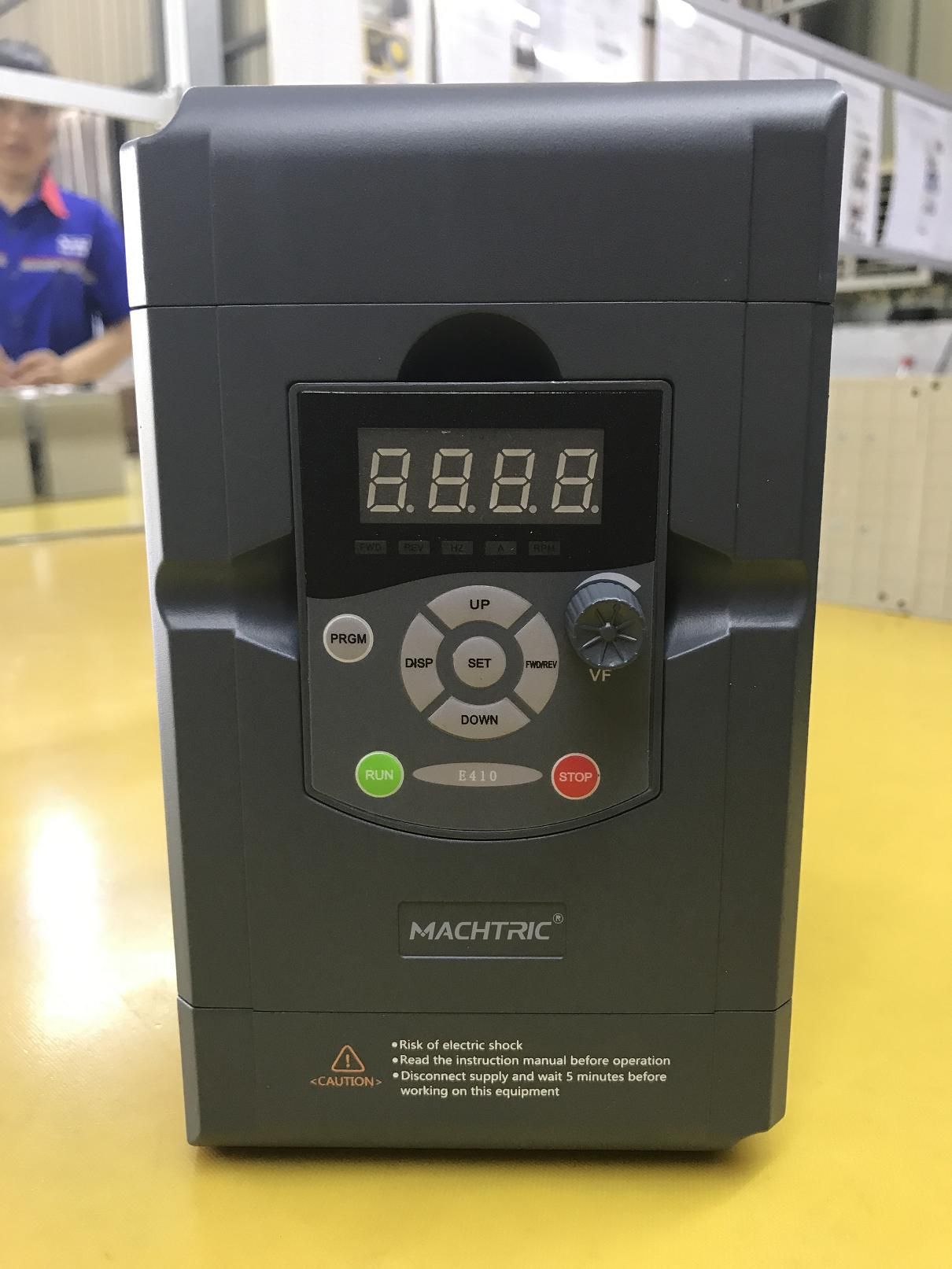

M100 Low Cost Mini Size 220V 380V AC Variable Frequency Drive Motor Speed Controller
1.Brake Unit and Brake Resistor| Inverter | Brake unit
| Brake resistor |
| Voltage | Capacity
(KW) | Mode | Dosage | Mode | Standard | Dosage |
One Phase
220V | 0.4 | Option | 1 | preset | 100W/150Ω | 1 |
| 0.75 | Option | 1 | preset | 100W/150Ω | 1 |
| 1.5 | Option | 1 | preset | 400W/100Ω | 1 |
| 2.2 | Option | 1 | preset | 600W/100Ω | 1 |
| 4 | With/in | 1 | preset | 500W/40Ω | 1 |
| 5.5 | With/in | 1 | preset | 500W/30Ω | 1 |
Three
Phase
380V | 0.4 | Option | 1 | preset | 100W/750Ω | 1 |
| 0.75 | Option | 1 | preset | 100W/750Ω | 1 |
| 1.5 | Option | 1 | preset | 260W/400Ω | 1 |
| 2.2 | Option | 1 | preset | 260W/250Ω | 1 |
| 4 | With/in | 1 | preset | 500W/150Ω | 1 |
| 5.5 | With/in | 1 | preset | 500W/100Ω | 1 |
| 7.5 | With/in | 1 | preset | 780W/75Ω | 1 |
2. Indicator Lamps1) Description of M100 Series Indicator Lamp Status
| Indicator lamp | Status | Description |
| FOR | on | The motor is in forward rotation. |
| REV | on | The motor is in reverse rotation. |
| HZ | on | Displaying set frequency or output |
| A | on | Displaying output current. |
| ROTT | on | Displaying rated motor revolution |
| A ROTT | on | Displaying AC or DC voltage. |
| HZ ROTT | on | Displaying counting value. |
| HZ A ROTT | on | Displaying internal temperature of the |
2) Description of M100 Series Indicator Lamp Status
| Indicator lamp | Status | Description |
| FOR RUN | on | The motor is in forward rotation. |
| REV RUN | on | The motor is in reverse rotation. |
| FOR STOP | on | The motor is stopped. |
| REV STOP | on | The motor is stopped. |
Wiring
1.Introduction of M100 Series Main Circuit Terminals
| Symbol | Function Description |
R.S.T
| Input terminal of AC line power. (220V class, for single
phase, single phase connected to R and T)
) |
| U.V.W | Output terminal of the inverter. |
| P.Pr | Connector for brake resistor. |
| P, N | Connecting terminal of external braking unit or DC supply. |
| E | Ground terminal |
2. Introduction of M100 Series Control Terminals
| Symbol | Function Description | Factory Setting |
| +10V | Power Supply for Speed Setting | +10V |
| VI | Analog Voltage Frequency Command | 0-10V corresponding
to the highest operating |
| AI | Analog Current Frequency Command | 4-20mA corresponding
highest operating frequency |
| X1-X6 | Digital Input | |
| AM0 | Output Current | |
KA
KB
KC
K
FC | Multi-Output 3 (N/O or N/C) | 3A/250VAC,3A/30VDC |
| RS485 | RS485 Communication port | |
3.Basic Connection DiagramThe wiring of the inverter is divided into two parts, main circuit terminal connections
and control circuit terminal connections. The user can see the main circuit terminals
and the control circuit terminals after removing the cover of enclosure. The terminals
must be connected correctly as the following wiring circuit diagrams.
The following diagram shows the factory standard connection of M100 series.
4.Product Show:
5.Contact Us:
