M12 IP65 Inductive Proximity Sensor with Wire and Connector

Name: M12 IP65 Inductive Proximity Sensor with Wire and Connector
Brand: all-electronics-online.com
SKU: 840400635
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

M12 IP65 inductive proximity sensor with wire and connector

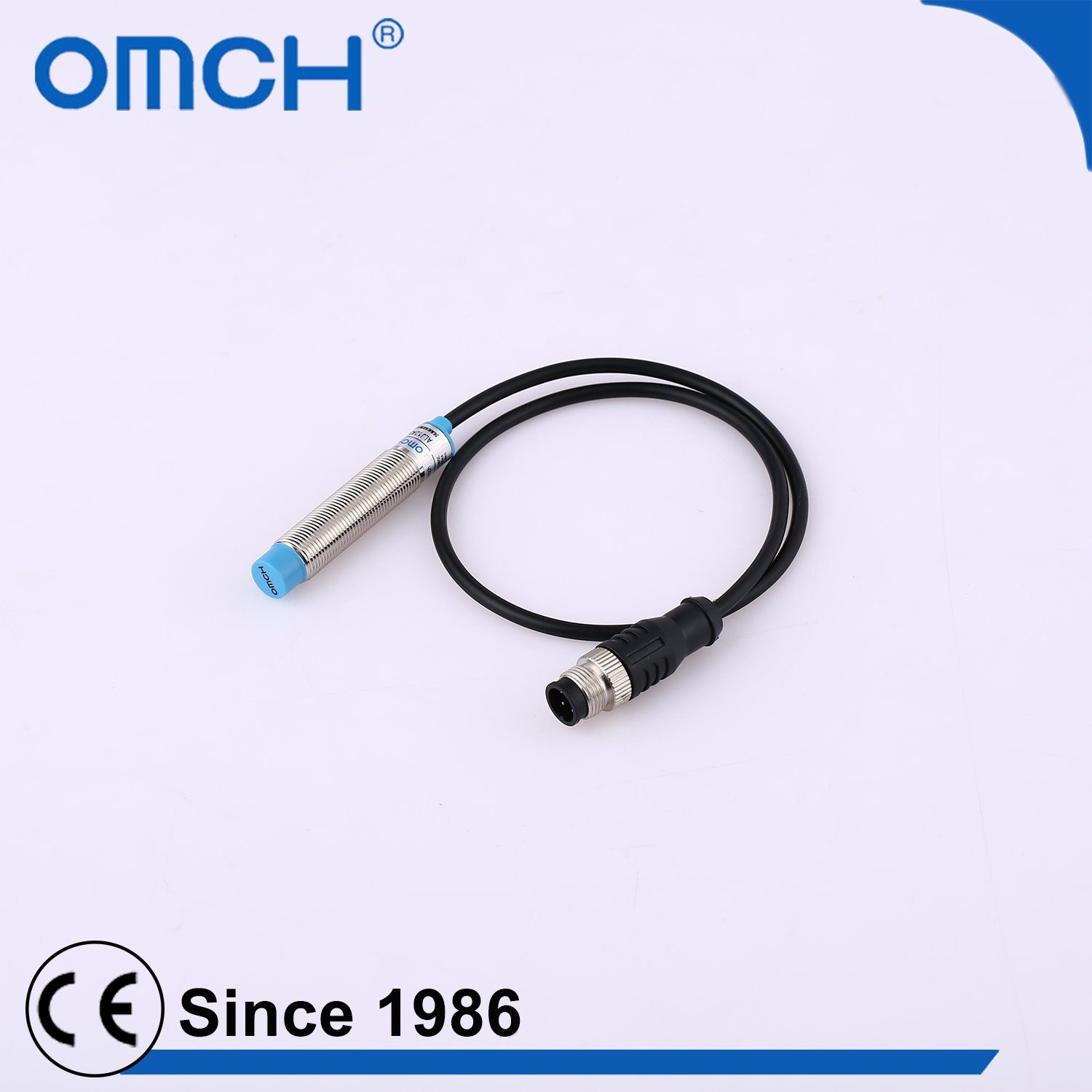

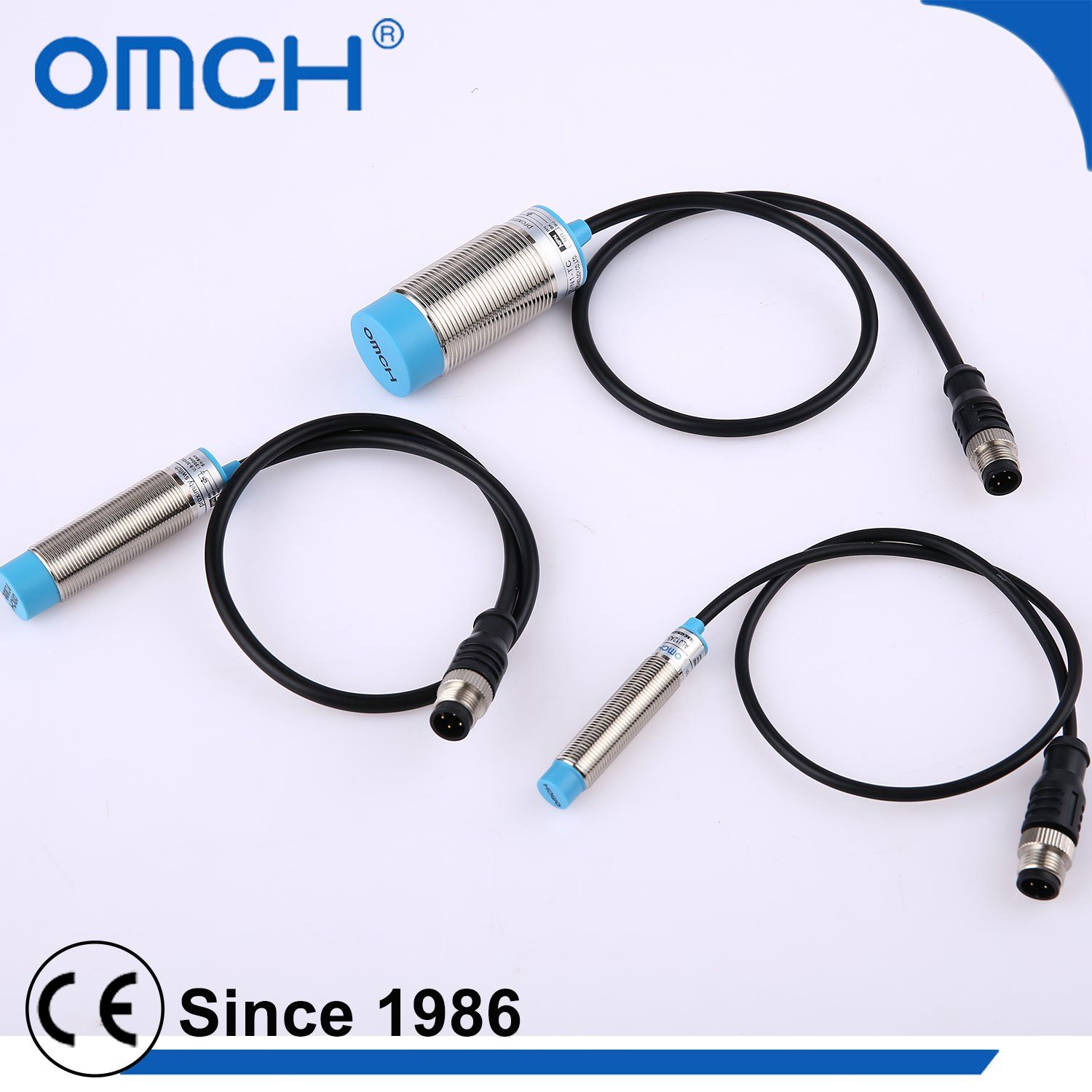

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

Dimension				M12
Mounting way				Screen shield type
TYPE	DC TYPE	NPN	NO	ALJ12A3-2-Z/N1-TC
			NC	ALJ12A3-2-Z/N2-TC
			NO+NC	ALJ12A3-2-Z/N3-TC
		PNP	NO	ALJ12A3-2-Z/P1-TC
			NC	ALJ12A3-2-Z/P2-TC
			NO+NC	ALJ12A3-2-Z/P3-TC
		Two Wire	NO	ALJ12A3-2-Z/D1-TC
			NC	ALJ12A3-2-Z/D2-TC
	AC TYPE	Two Wire	NO	ALJ12A3-2-J/A1-TC
			NC	ALJ12A3-2-J/A2-TC
		3 wire	NO+NC
Set distance				2 mm+/-10%
Standard detection object				0~1.6mm
Response frequency				Iron12121
Response frequency				DC:>=1kHz AC:50Hz

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: Nickel plated brass; Detection surface: ABS

AUTHENTICATION

FAQ

We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Prod Model:	ALJ12A3
Type:	Infrared Sensor Switch
Standard:	Standard
Certification:	CE
Wires:	2-Wires, 3-Wires,4-Wires
