M12 Series of Embedded Non-Embedded Capacitive Proximity Sensor

Name: M12 Series of Embedded Non-Embedded Capacitive Proximity Sensor
Brand: all-electronics-online.com
SKU: 840585185
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

m12 series of embedded non-embedded capacitive proximity sensor

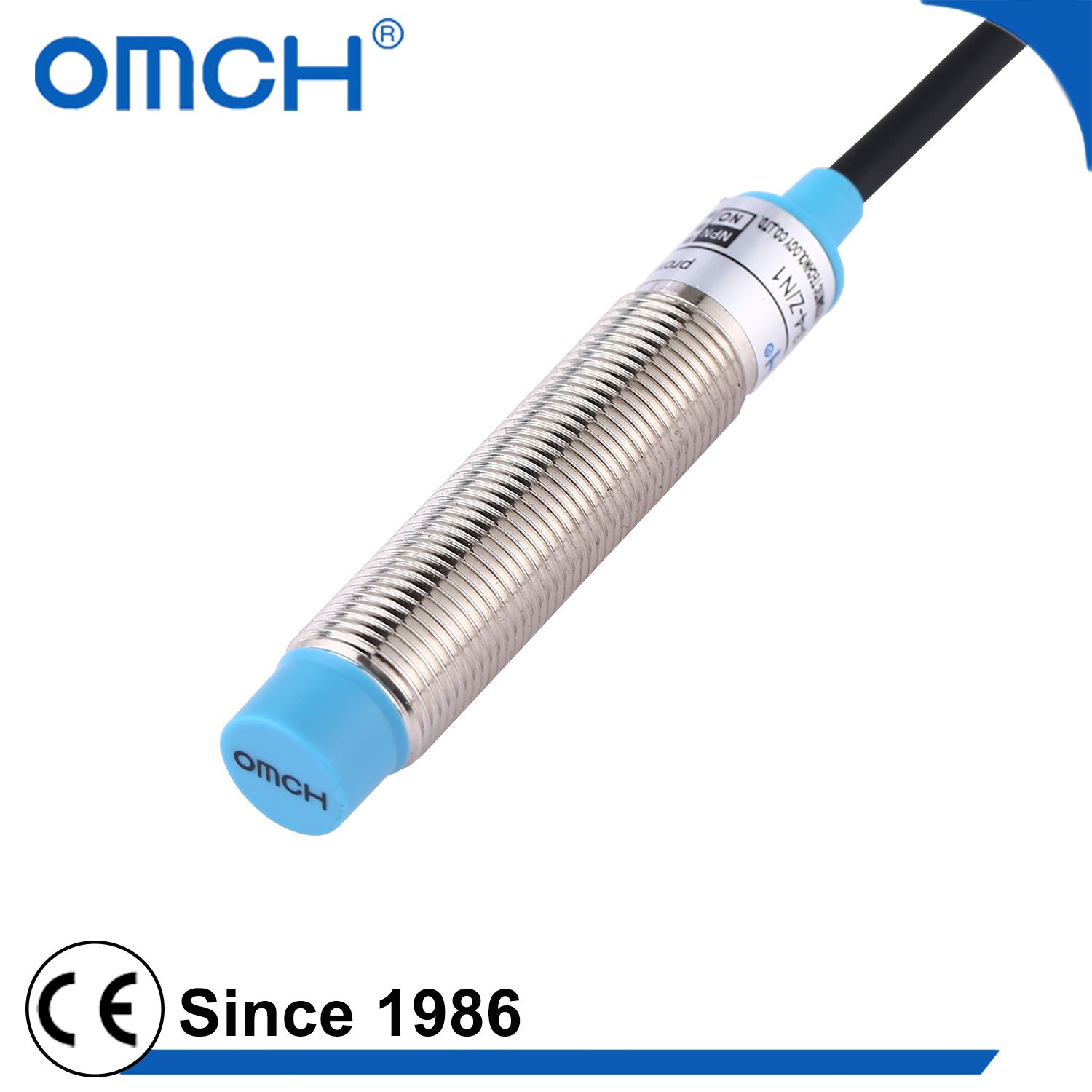

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Long service life, high reliability and strong resistance property to environment

Red LED indicates that it's available to detect the sensor operating stat

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

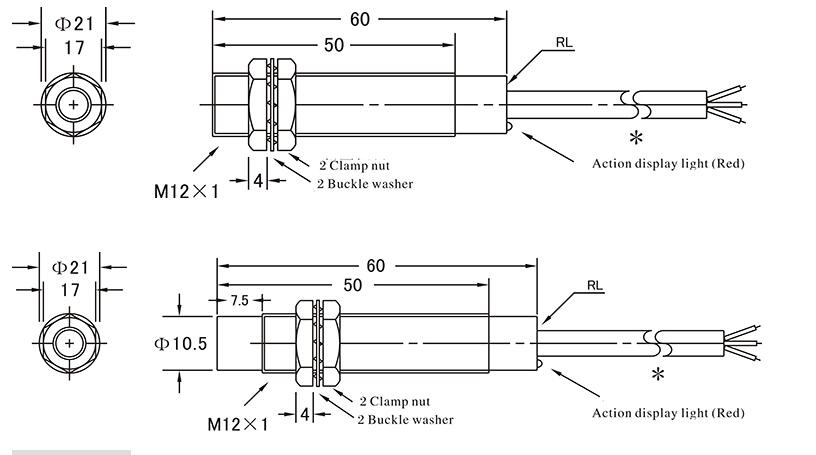

Dimension				M12x1
Mounting				Non-flush type
TYPE	DC TYPE	NPN	NO	ALJC12A3-A-Z/N1
			NC	ALJC12A3-A-Z/N2
			NO+NC
		PNP	NO	ALJC12A3-A-Z/P1
			NC	ALJC12A3-A-Z/P2
			NO+NC
		Two Wire	NO
			NC
	AC TYPE	Two Wire	NO
			NC
		Three wire	NO+NC
Detection distance				5 mm+/-10%
Set distance				0~4mm
Standard detection object				Iron50501
Response frequency				DC:>=0.5kHz

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: Nickel plated brass; Detection surface: ABS

AUTHENTICATION

FAQ

We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Prod Model:	ALJC12 series
Standard:	Standard
Certification:	CE
Type:	Capacitive Type
Wires:	2-Wires, 3-Wires,4-Wires
