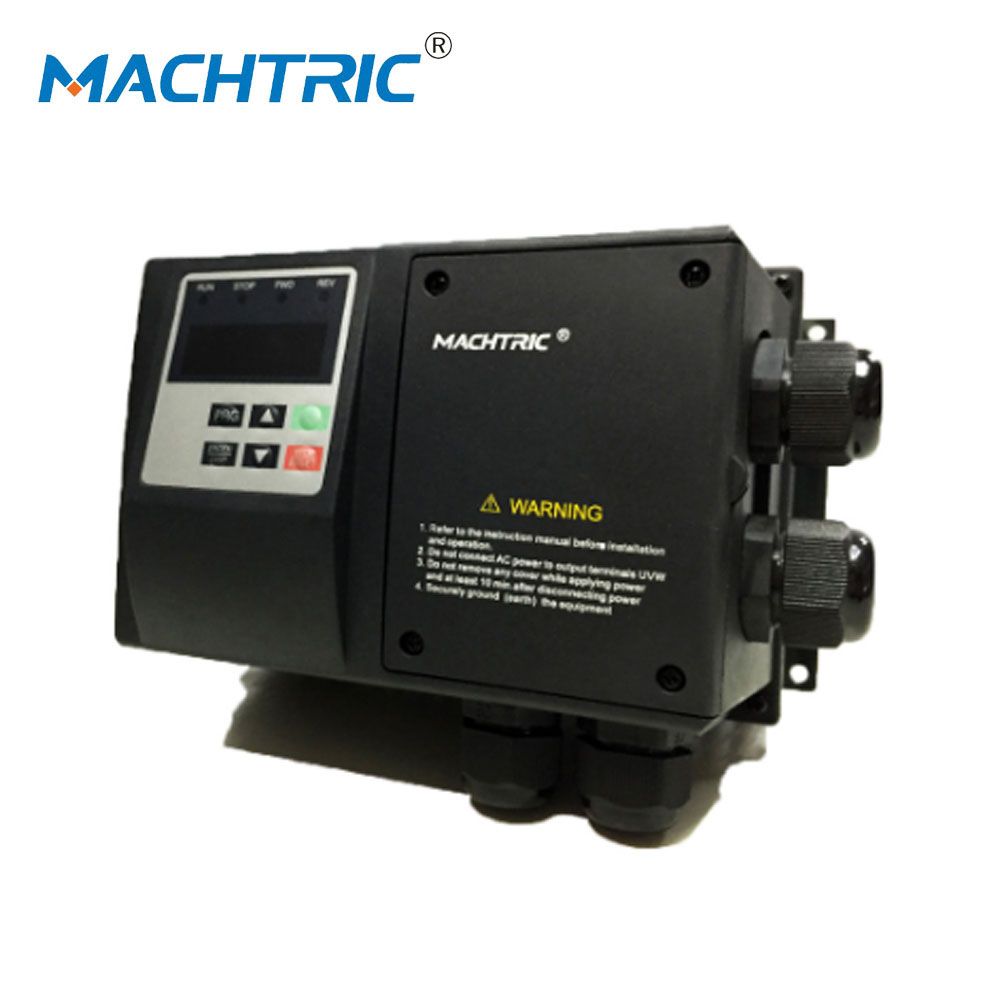

Machtric popular style Variable frequency speed /AC drive S2100S
Specification:
Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |

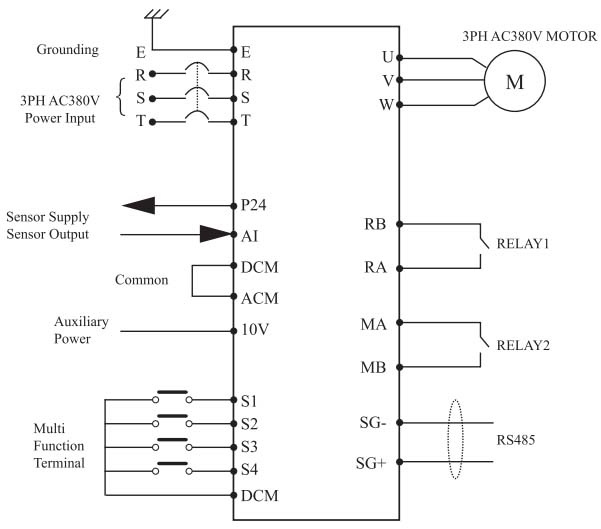

Wiring diagram:

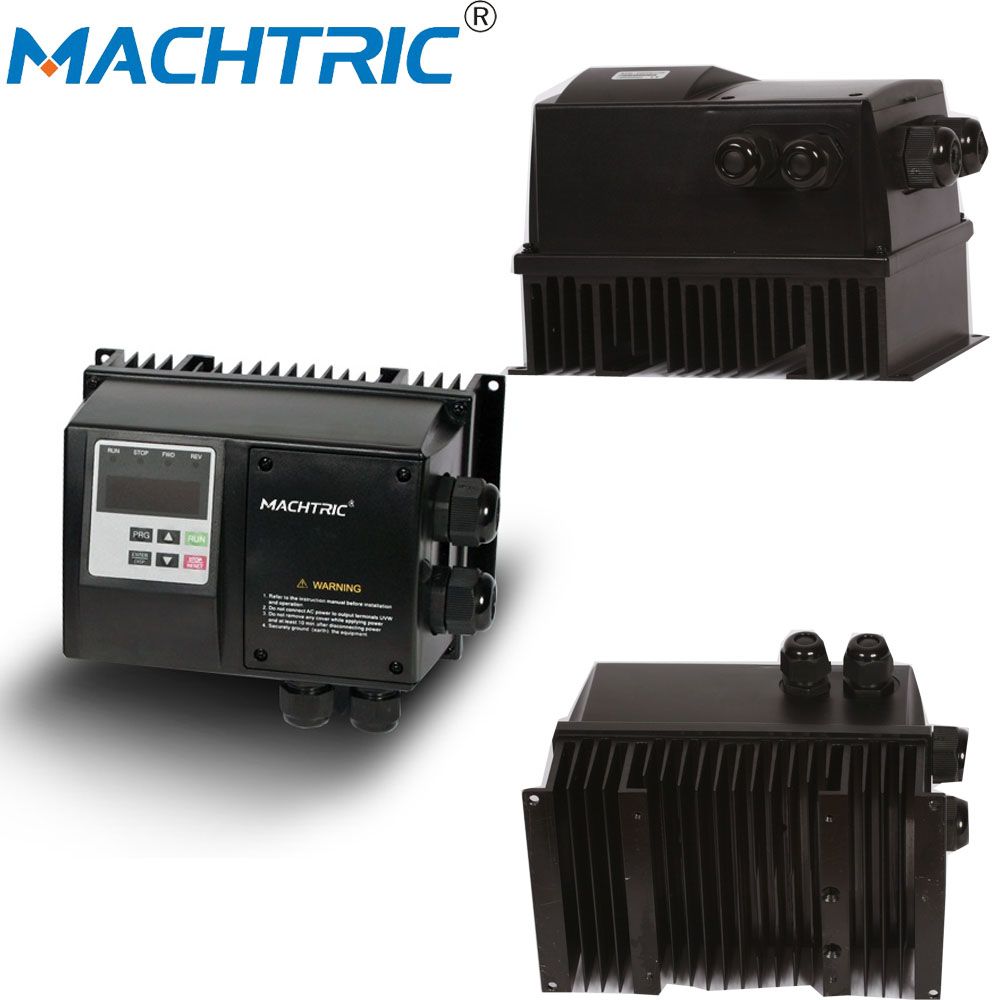

Product show:
Advantage :
Why choose us? 20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Application | paper machinery | screw output device |
| drawing equipment | dyeing plant |
| injection plastic equipment | air conditioning system |
| machine tool equipment | boiler system |
| chemical fiber equipment | water supply |
| oil transportation installation | textile equipment Etc |
