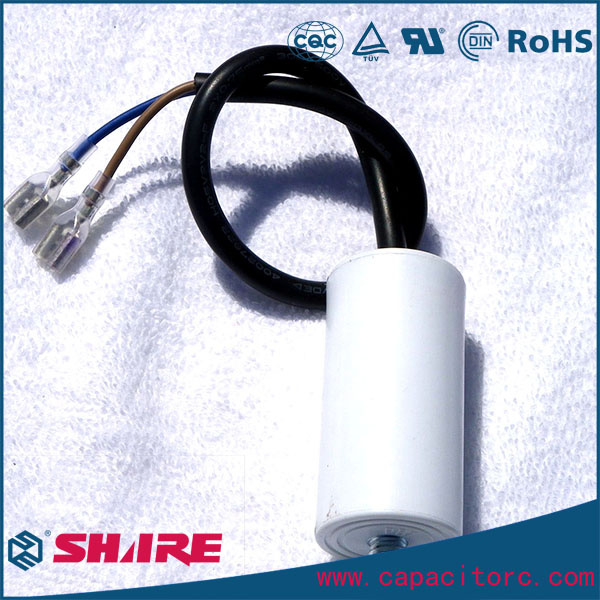

Metallized Polypropylene Film AC Capacitor AC Running Cbb60 Capacitor

Name: Metallized Polypropylene Film AC Capacitor AC Running Cbb60 Capacitor
Brand: all-electronics-online.com
SKU: 801866085
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 0.1-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Metallized Polypropylene Film AC Capacitor AC Running CBB60 Capacitor

CBB60 Capacitor Introduction:

CBB60 type capacitor is made of electrical class metallized polypropylene film, complex high prue metalized electrode, dry fabric, flame-resistant plastic or aluminum shell and oxygen resin enveloped.
The protection class is p2 and p0. They have the characteristics of high cost performance, high pressure-resistant,long life and so on.
It mainly used to starting and running of the ac motor, such as the water pump,washing machine,paper smash machine and so on.

CBB60 Capacitor Technical Data:

1	Implemented standard	GB/T3667 UL810 EN60252
2	Ambient Temperature	-40~+70ºC
3	Rated Voltage	150~600VAC
4	Test Voltage	T-T:1.75Un t:2s T-C:2000VAC t:10s
5	Capacitance Tolerance	J (±5%),K (±10%)
6	Dissipation Factor	Tg δ≤0.004 (50Hz,60 Hz 20ºC)
7	Insulation Resistance(20ºC)	≥2000MΩ.uF(500VDC,60S)
8	Fault Current	10000AFC(UL810)
9	Class of safety protection	P0/P2
10	Safety approvals	UL,VDE,CQC

Prod Model:	CBB60
Type:	Polypropylene Capacitor
Application:	Refrigerators,Compressors,Air Cooler
Package Type:	Surface Mount
Capacitance:	1UF-100UF
Electrolyte:	Epoxy Resin
Filter:	Film Capacitor
