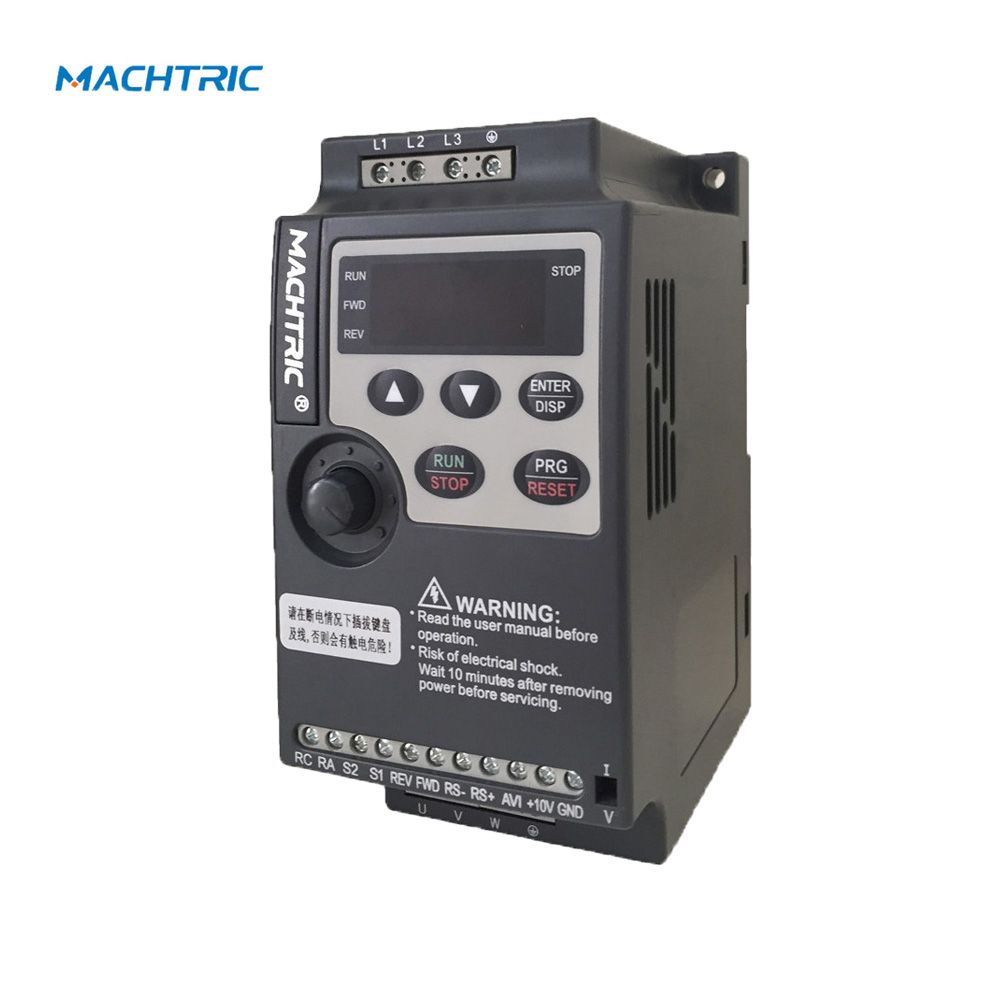

Mini Compact 220V 380V 1.5kw 2.2kw AC-DC-AC Frequency Inverter VFD
| Price: |
US $ 55/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Super Mini 35mm DIN Rail Adjustable Frequency Drive Frequency Inverter
1.Product Advantages:
Mini type,compact size
Easy to operate
Wall mounted or standard 35mm rail mounting
Perfect for conveyor belt,logging machine etc
220V(0.4-2.2kw)
380V(0.75-3.7kw)
2.Product Specifications:
| Items | S800E |
| PowerSupply | Rated voltage, Frequency | One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range | 220V: 170~240V;380V:330V-440V |
| Output | Voltage Range | 220V: 0~220V;380V:0-380V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg ,
frequency setting, the output frequency/ current,
DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input: 0.01Hz, analog input: 0.1% of maximum output frequency |
| Output FrequencyAccuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements. |
| Torque Control | Auto increase: auto raise torque by loadingCondition; Manual increase: enable to set0.0~20.0% of raising torque. |
MultifunctionalInput
Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control,
Program running, four-section
acceleration/deceleration speed switch, UP/DOWN function
and emergency stop and other functions |
Multifunctional
Output Terminal
| 1 multi-function output terminals for displaying of running,
zerospeed, counter, external
abnormity, program operation and other Information and warnings. |
Acceleration/ deceleration
Time Setting | 0~999.9s acceleration/deceleration
time can be set individually. |
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 4 to 20mA can be selected; |
Digital input:Input using the setting dial of theoperation panel or
RS485 or UP/DOWN. |
| Note:AVI terminals can be used to select an analog voltage input(0-10v) and analog current input(4-20mA) through the switch J2. |
| Note: AVI terminals can be used to select an |
| Analog voltage input (AV) and analog current |
| Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |

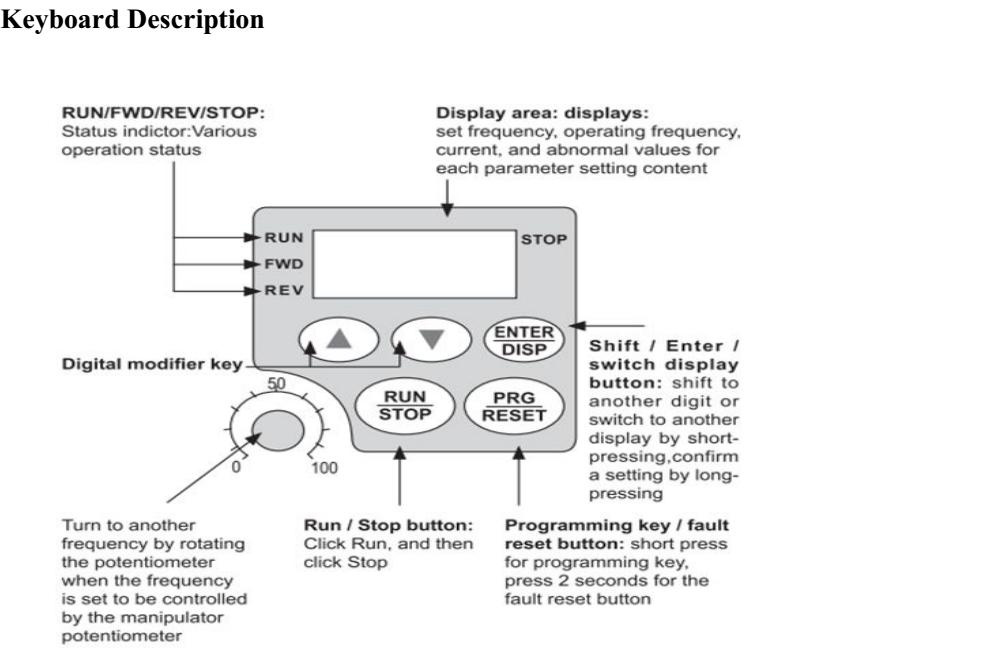

3.Keyboard Description:

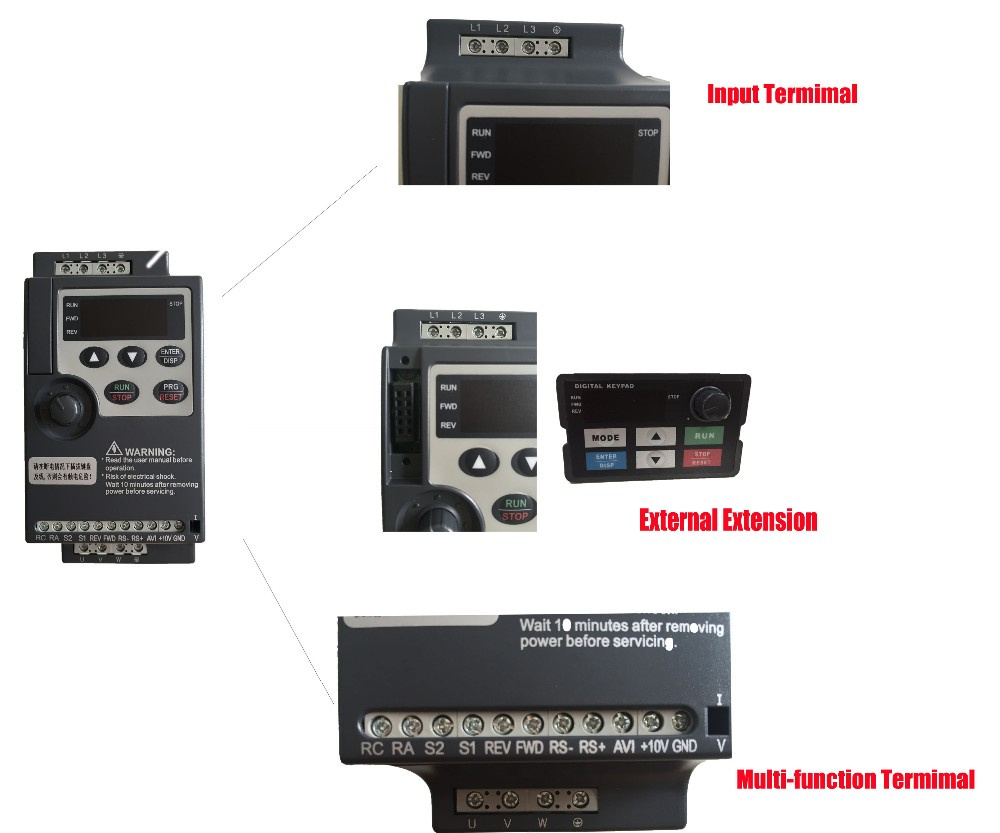

4.Product Show:
5.Contact Us:
| Prod Model: |
S800E |
| Item Name: |
Adjustable Frequency Drive |
| Rated Voltage Frequency: |
One-Phase/Three Phase AC 220V 50/60 Hz |
| Rail Drives: |
35mm Rail Mounting |
| Control Method: |
V/F Control |
| Pid Control: |
Built-in Pid Control |
| Certificate: |
Ce ;ISO9001 |
| RS485: |
Standard RS485 Communication |
| Other Functions: |
Multi-Speed/Automatic Voltage Regulation/Counter |
| Features: |
Energy Savings/Eco-Friendly/Mini Size |
| Protective Structure: |
IP20 |
| Application: |
Motor |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
