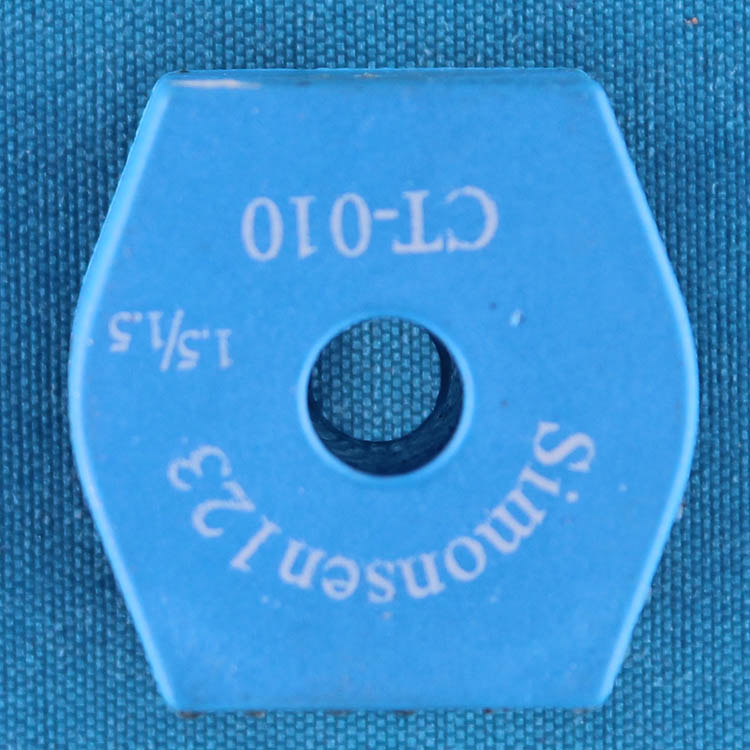

Mini Current Transformer for Measuring

Name: Mini Current Transformer for Measuring
Brand: all-electronics-online.com
SKU: 838410725
Availability: InStock
Rating: 4.4 (138 reviews)

Price:	US $ 0.85-0.9/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Mini Current Transformer for Measuring

1. Product Type: Voltage Transformer
1.1 Model NO:simonsen123 PT-010-1.0/1.0
1.2 Installation: horizontal installation

2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
2.2 Phase: single or three
2.3 Usage: measurement
2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

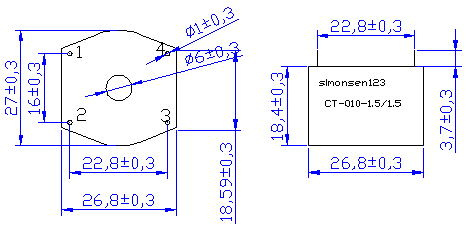

3. Size

4. Character:

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out voltage	Accuracy	Permissible Error	Phase Angle Error	Max Current
PT-010-1.0/1.0	2.0mA/2.0mA	1500:1500	0~2mA	10Ω	200mV	0.1%	-0.05%	8'	2mA
PT-010-1.5/1.5	10mA/10mA	1500:1500	0~10mA	10Ω	100mV	0.05%	-0.02%	6'	10mA

5. Security Parameters :
5.1 Isolation Voltage: Primary Winding and Secondary Winding:4KV/2mA/60Sec;
5.2 Insulation Conductor:≥500MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Operating Temperature: -40ºC~+85ºC Humidity ≤95%;
5.5 Frequency Range: 1KHZ~70KHZ

6. Schematic

Prod Model:	CT-010
Structure:	Magnetic Bead
Type:	Current Transformer
Nature Of Operation:	Measure
Brand:	Simonsen123

Established in 2004, Shenzhen Simonsen123 Electronic Co., Ltd is engaged in research & development, manufacture and sales for current transformer, voltage transformer, multi-coil inductance, leakage protector and balun inductor.

The company has the factory of over 5000 square meters and more than 200 staff, in which possesses 2 injection molding machines, 200 full-automatic annular coil winding machines, over 20 LCR testers, 20 inductance comprehensive tester, 10 transformer specified tester and a batch of import tester, such as automatic dispenser, full-automatic laser printer and etc. While, the injection molding machine provides strong guarantee for developing new products. Our monthly production achieves 200, 000 current transformers and 6, 000, 000 inductances. The company and the factory have passed ISO 9001 on August, 2013 and all of our products meet the standard of RoHS.
