Potential Transformer

1. Product Name: Voltage Transformer
1.1 Product NO:simonsen123 PT-007-1.0/1.0
1.2 Installation: Vertical insertion

2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
2.2 Phase: single or three
2.3 Usage: measurement
2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

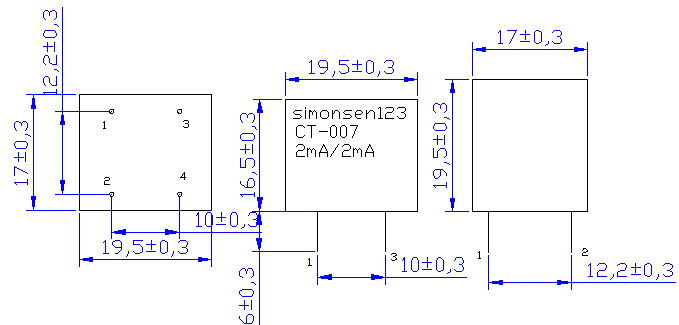

3.Size

4.Character

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out voltage	Accuracy	Permissible Error	Phase Angle Error	Max Current
PT-007-1.0/1.0	2.0mA/2.0mA	1000:1000	0~2mA	50Ω	100mV	0.1%	-0.05%	10'	2mA

5. Security Parameters :
5.1 Primary Winding and Secondary Winding:3KV/2mA/60Sec;or 4KV/2mA/60sec;
5.2 Insulation Resistance:≥500MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Usage Temperature: -40ºC~+85ºC Relative Humidity ≤95%;
5.5 Operating Frequency: 1KHZ~70KHZ

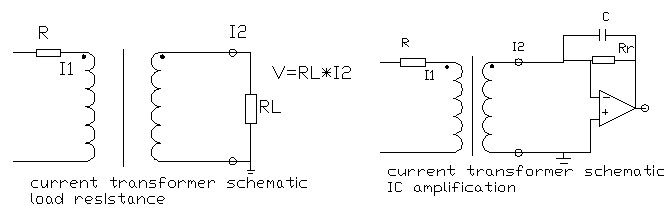

6. Schematic

Prod Model:	PT-007-1.0/1.0
Structure:	Magnetic Bead
Type:	Current Transformer
Nature Of Operation:	Measure
Brand:	Simonsen123

Established in 2004, Shenzhen Simonsen123 Electronic Co., Ltd is engaged in research & development, manufacture and sales for current transformer, voltage transformer, multi-coil inductance, leakage protector and balun inductor.

The company has the factory of over 5000 square meters and more than 200 staff, in which possesses 2 injection molding machines, 200 full-automatic annular coil winding machines, over 20 LCR testers, 20 inductance comprehensive tester, 10 transformer specified tester and a batch of import tester, such as automatic dispenser, full-automatic laser printer and etc. While, the injection molding machine provides strong guarantee for developing new products. Our monthly production achieves 200, 000 current transformers and 6, 000, 000 inductances. The company and the factory have passed ISO 9001 on August, 2013 and all of our products meet the standard of RoHS.
