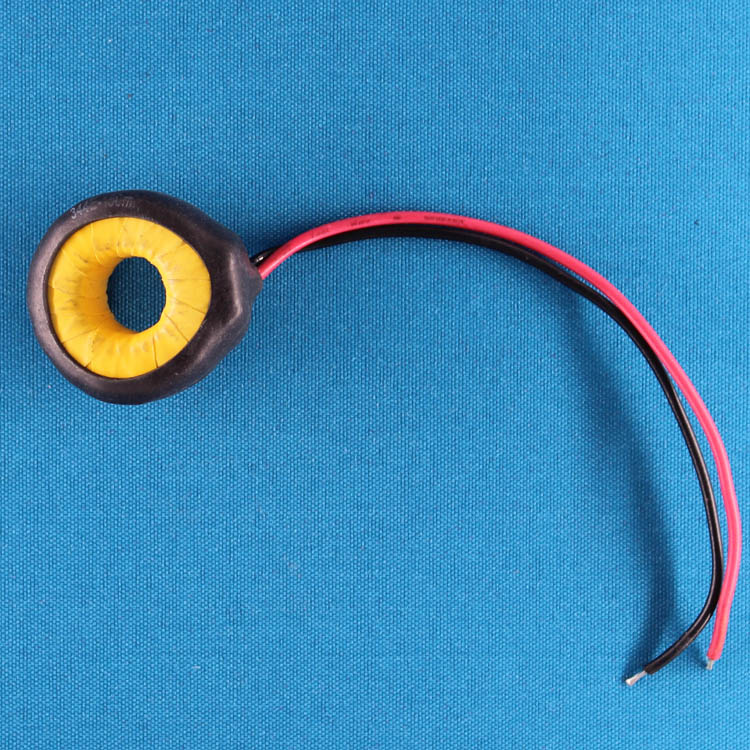

Small Size Single Phase Current Transformer for Measuring

Name: Small Size Single Phase Current Transformer for Measuring
Brand: all-electronics-online.com
SKU: 838625065
Availability: InStock
Rating: 4.6 (65 reviews)

Price:	US $ 4.7-4.8/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

small size single phase current transformer for measuring

1. Product Type: Current Transformer
1.1 Model NO:simonsen123 CT-130L
1.2 Installation: line putout, length of line adjusted.

2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
2.2 Phase: single
2.3 Usage: measurement
2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

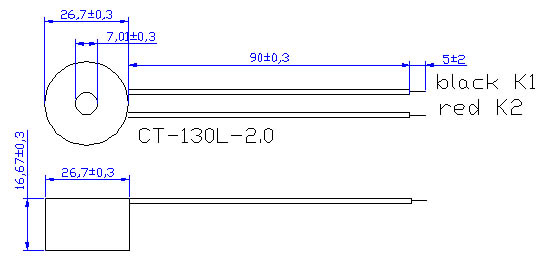

3. Size

4. Performance Parameter

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out voltage	Accuracy	Permissible Error	Phase Angle Error	Max Current
CT-130L-1.0	0~60A	1000:1	0~60mA	10Ω	600mV	0.5%	1.0%	≤8'	120A
CT-130L-2.0	0~80A	2000:1	0~40mA	10Ω	800mV	0.1%	0.05%	≤7'	150A

5. Security Parameters :
5.1 Isolation Voltage: Primary Winding and Secondary Winding:3KV/2mA/60Sec;
5.2 Insulation Conductor:≥500MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Operating Temperature: -40ºC~+85ºC Humidity ≤95%;
5.5 Frequency Range: 1KHZ~70KHZ

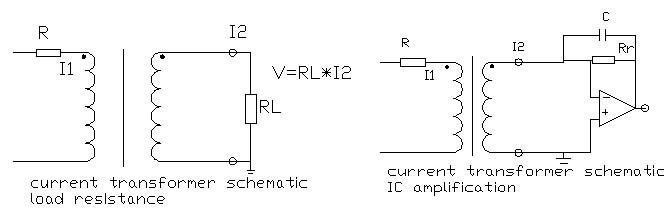

6. Schematic

Prod Model:	CT-130L
Structure:	Magnetic Bead
Type:	Current Transformer
Nature Of Operation:	Measure
Brand:	Simonsen123
